Operation

7 Operation

7.1 Operating Display

The display shows the operating status of the encoder box.
ISD Encoder Box
Run/Err
Power
1
7 7
CAN I
CAN II

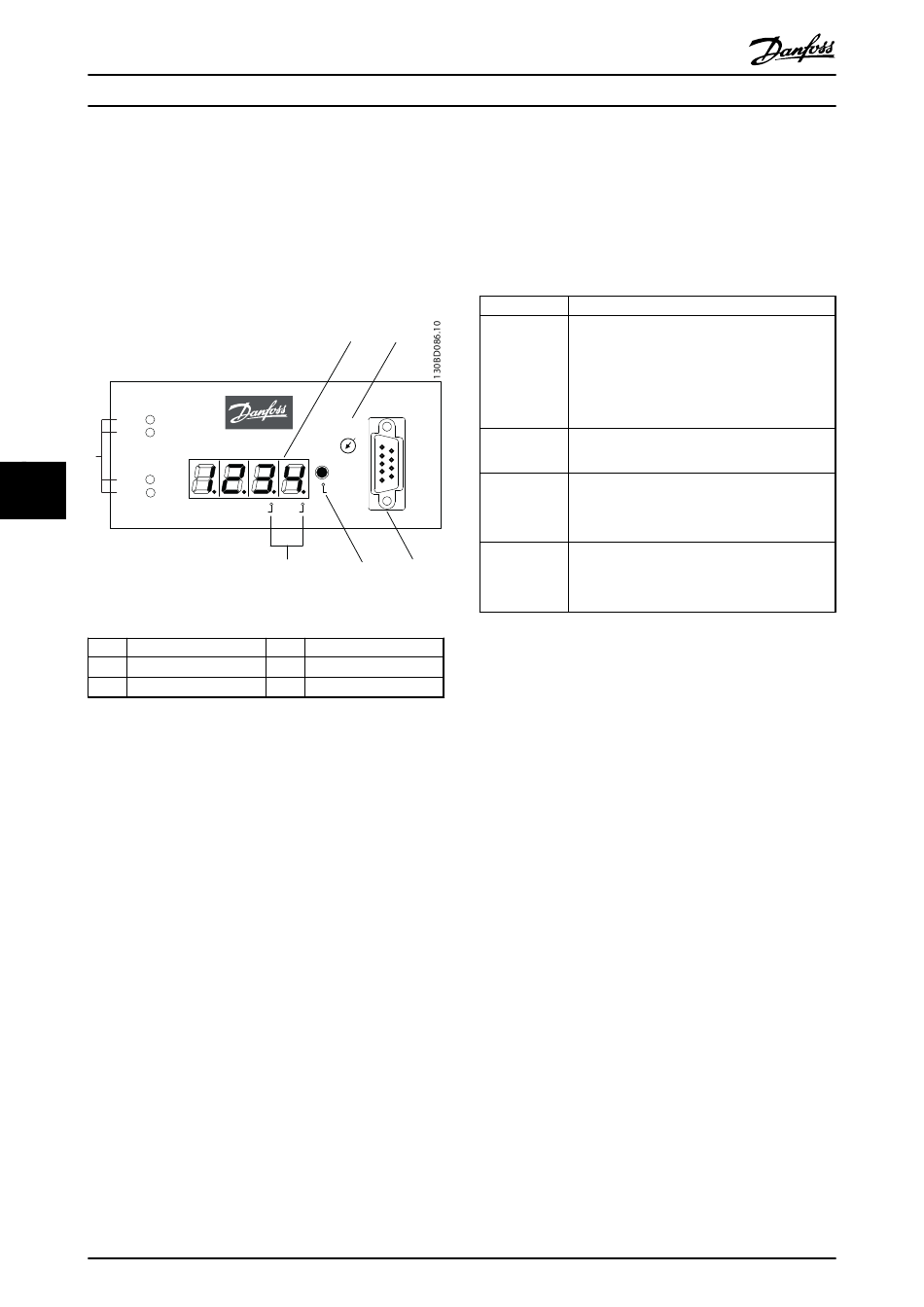

Illustration 7.1 Encoder Box Display
1

Operating LEDs

2 7-segment display
3 BCD switch
Table 7.1 Legend to Illustration 7.1
22
®
VLT ISD Encoder Box Operating Instructions
2 3
CAN-ID
4 6
2 8
RS232
0
Service
Set
Warn Err
6 5 4
4 Service interface
5 <SET> push button
6 Segment dots
®
MG75F102 - VLT
7.1.1 Operating LEDs
The operating LEDs show the operating status.
LED Description
•
Run/Err. Constant light (green): Normal operation
(green/red)
•
Flashing LED (green): Encoder box is being
initialised.
•
Constant light (red): Active encoder box
error
•
"Power" Constant light (green): 24 V power supply is
(green) connected
•
CAN I Flashing LED (green): CAN communication
(green/red) on line I
•
Constant light (red): CAN error on line I
•
CAN II Flashing LED (green): CAN communication
(green/red) on line II
•
Constant light (red): CAN error on line II
Table 7.2 Description of the Operating LEDs
