Description
4.3.3.4 RS 422 II; Additional Encoder
Connector (X602)
4 4

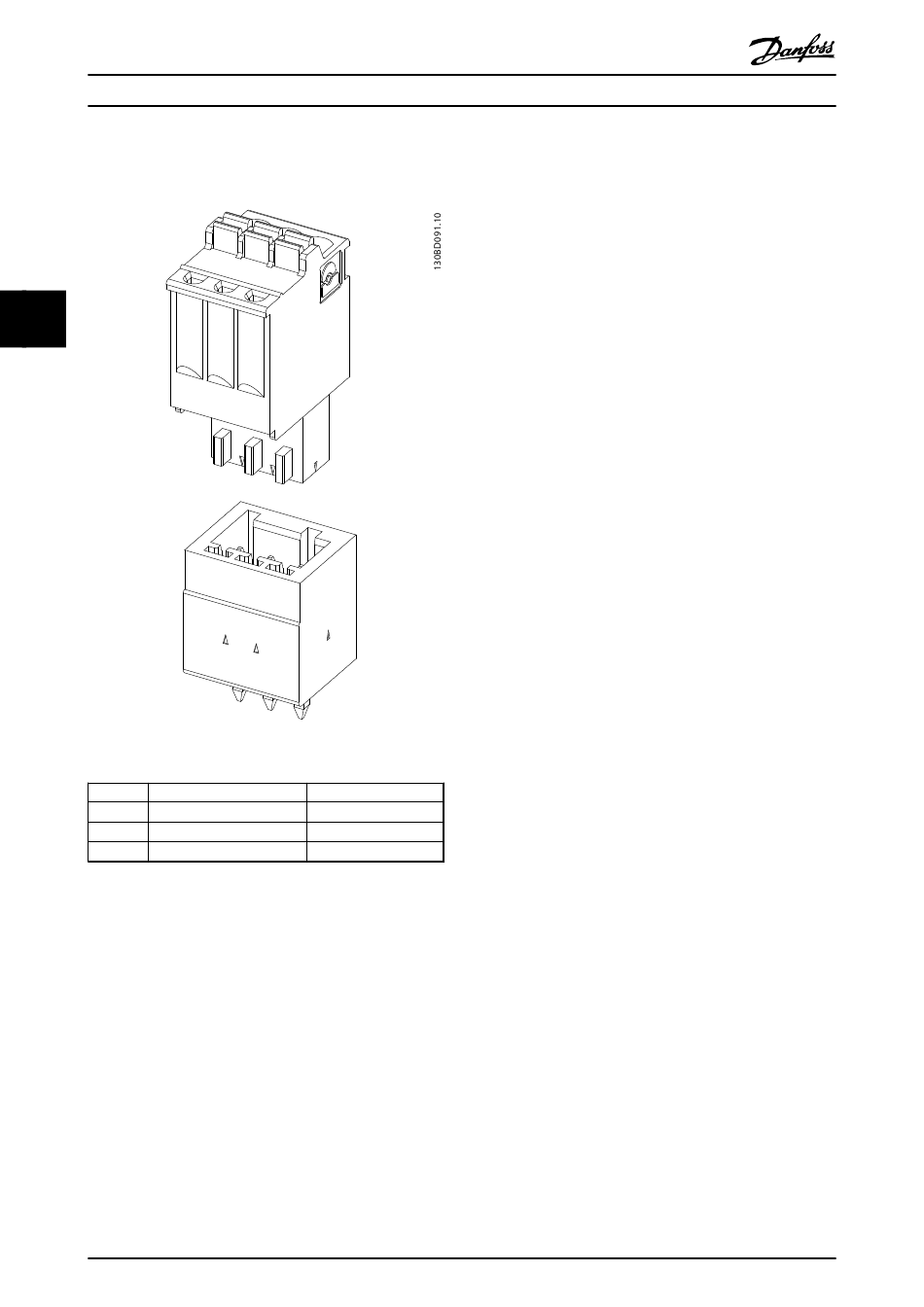

Illustration 4.8 RS 422 II Housing and Plug
Pin Signal
1 GND_24 V
2 out2+
3 out2–
Table 4.8 Connector Pin Assignment
16
®
VLT ISD Encoder Box Operating Instructions

4.3.3.5 SD Card Slot

Slot for standard SD card with maximum 2 GB memory.
The memory card must be formatted using file-system
FAT16.
SDHC-SD is not supported.
CAUTION
Do not remove or replace the SD card during operation,
otherwise the contents of the SD card could be destroyed.
Switch the encoder box off and wait 10 seconds before
removing the SD card
Function
–
–
–
®
