Installation Guide

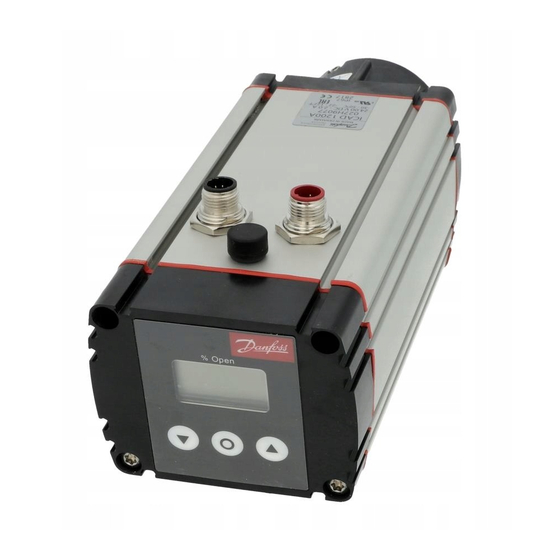

ICAD Actuators

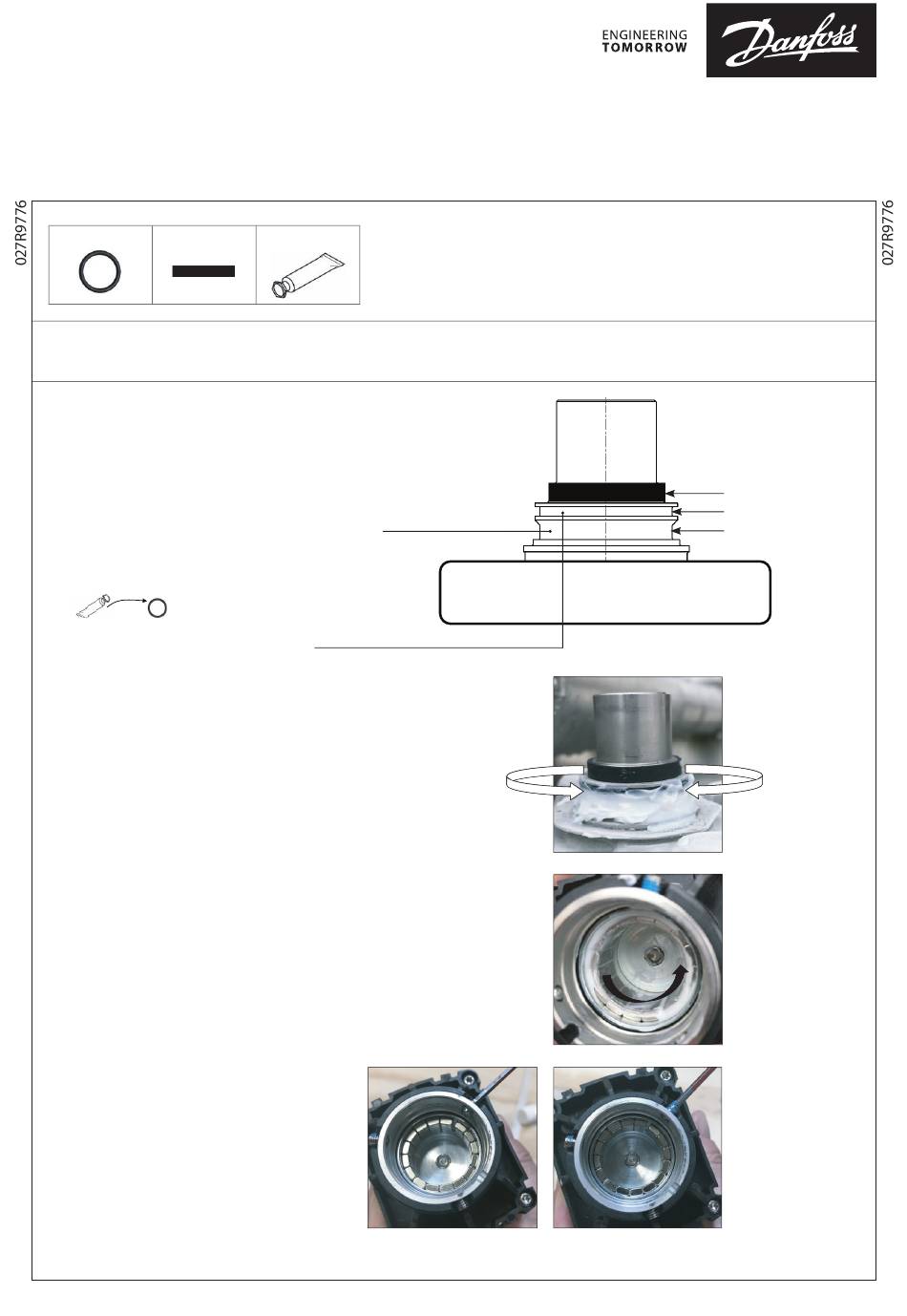

Mechanical installation of ICAD on ICM
Included in the ICAD box:
New EPDM O-ring
New PTFE ring
This Installation guide cover installation of ICAD
• on complete new ICM top part (function module)
• on ICM top part already in operation
1. Remove existing O-ring and PTFE ring* on the ICM adapter with your fingers.
Do not use any tool because it may damage the O-ring/PTFE ring
2. Install the new PTFE ring*
3. Apply Molycote 55 grease in groove below o-ring
4. Apply Molycote 55 grease on the EPDM O-ring
5. Install the new EPDM O-ring in groove
6. Observe that Molycote 55 grease is distributed, in the groove,
all around the ICM adapter
7. Apply a very thin film of Molycote 55 around and on the ICAD magnets
8. Turn all 3 set screws about 3 turns clockwise
and then counterclockwise back to its original
position
*If the ICM top part is new there is no need to replace PTFE ring
© Danfoss | DCS (ms) | 2020.01
Molycote 55 grease
Clockwise
ICM bonnet
Counterclockwise
AN331637222900en-000101 | 1
PTFE ring
O-ring
Groove where ICAD
set screws are fastend
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Danfoss ICAD Series
Summary of Contents for Danfoss ICAD Series
- Page 1 8. Turn all 3 set screws about 3 turns clockwise and then counterclockwise back to its original position Clockwise Counterclockwise *If the ICM top part is new there is no need to replace PTFE ring © Danfoss | DCS (ms) | 2020.01 AN331637222900en-000101 | 1...
- Page 2 4. Install the ICAD actuator on the ICM adapter making sure it is pushed completely down. Fasten the the 3 set screws using a 2.5 mm hexagon key. Note! Crosstighthen all 3 screws to ensure equal tightening. Max 3 Nm torque. 2 | AN331637222900en-000101 © Danfoss | DCS (ms) | 2020.01...
