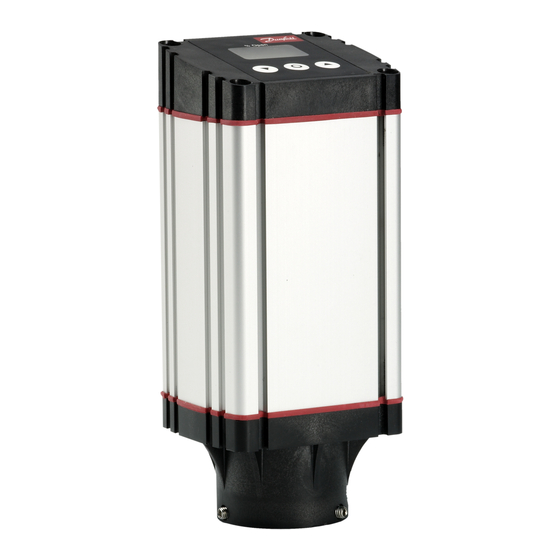

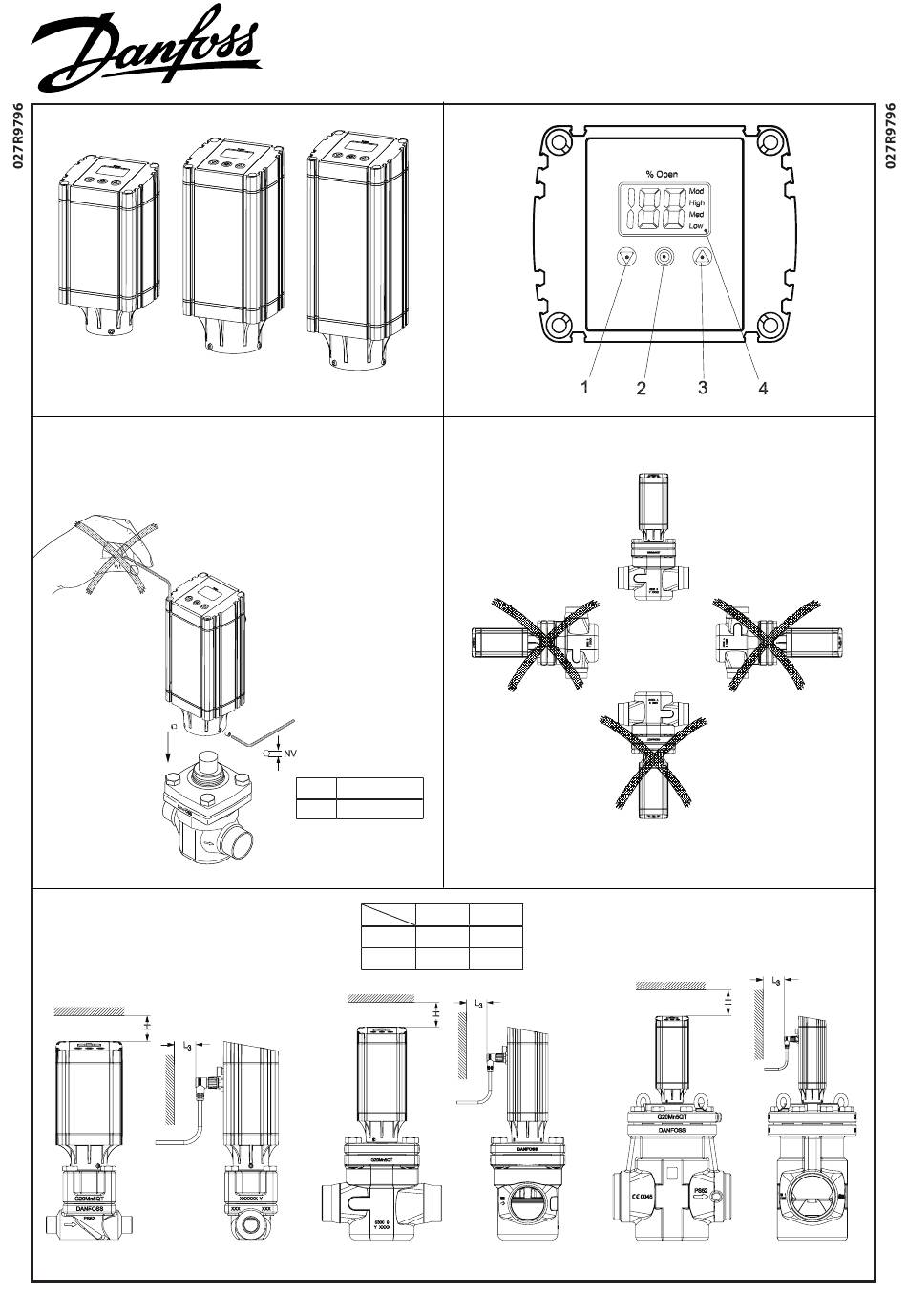

ICAD 600
Fig. 1
Fig. 3
Fig. 5a, ICM + ICAD 600
© Danfoss A/S (AC-SMC/MWA), 08-2011
Instruction
Actuator
ICAD 600 / ICAD 900 / ICAD 1200
ICAD 900
ICAD 1200
Note: When mounting the
ICAD make sure to push ICAD
down to mechanical stop.
2.5 mm
Nm
LB-feet
3
2.5
Fig. 5b, ICM + ICAD 900
DKRCI.PI.HV0.E6.02 / 520H3832
ICAD 600
ICAD 900
ICAD 1200
Fig. 2
Fig. 4
mm
in.
H
45
1.77
L
25
1
3
Fig. 5c, ICM + ICAD 1200
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the ICAD 600 and is the answer not in the manual?

Questions and answers

Related Manuals for Danfoss ICAD 600

Summary of Contents for Danfoss ICAD 600

  • Page 1 Instruction Actuator ICAD 600 / ICAD 900 / ICAD 1200 ICAD 600 ICAD 900 ICAD 1200 ICAD 600 ICAD 900 ICAD 1200 Fig. 2 Fig. 1 Note: When mounting the ICAD make sure to push ICAD down to mechanical stop.

  • Page 2: Icad

    Control cable 4 pin male connector 8 pin male connector Supply cable Fig. 6 ICAD 600/900/1200 - Analog I/O ICAD 600/900/1200 - Digital I/O for Terminal box ON/OFF valve operation for modulating control Terminal box Auxiliary relays Only possible with EKC 347 Fig.
  • Page 3 I: Black (+) 19 - 24 V d.c. fail safe below, ICAD is ready to be configurated. supply (optional). See Parameter list. ICAD 600, ICAD 900 and ICAD 1200 can be II: White (+) 24 V d.c. ICAD configuration can be done used together with the following Danfoss III: Brown (–) 24 V d.c.
  • Page 4 If A2 still active. 2) Make a Reset to factory setting decreases parameter number by 1 for If A2 still active. Return ICAD to Danfoss each activation AI input error Alarm ON Not active if ¡01 = 2, or ¡02 = 2 Enter push button (fig.
  • Page 5 If ¡26 = 1 - 3 then factory setting = 0 If ¡26 = 4 - 6 then factory setting = 0 (1 if ICAD1200) If ¡26 = 7 - 9 then factory setting = 1 0: Encoder disabled. Means ICAD operation as ICAD 600/900 1: Encoder enabled ¡26 NB: Password protected.
  • Page 6 3. Connect the power supply. 4. Release down arrow and up arrow push buttons. 5. When the display on ICAD (fig. 2) is alternating between showing: CA and A1 the factory resetting is complete. © Danfoss A/S (AC-SMC/MWA), 08-2011 DKRCI.PI.HV0.E6.02 / 520H3832...
  • Page 8 © Danfoss A/S (AC-SMC/MWA), 08-2011 DKRCI.PI.HV0.E6.02 / 520H3832...
