Stratasys uPrint Service Manual page 162

5
24.

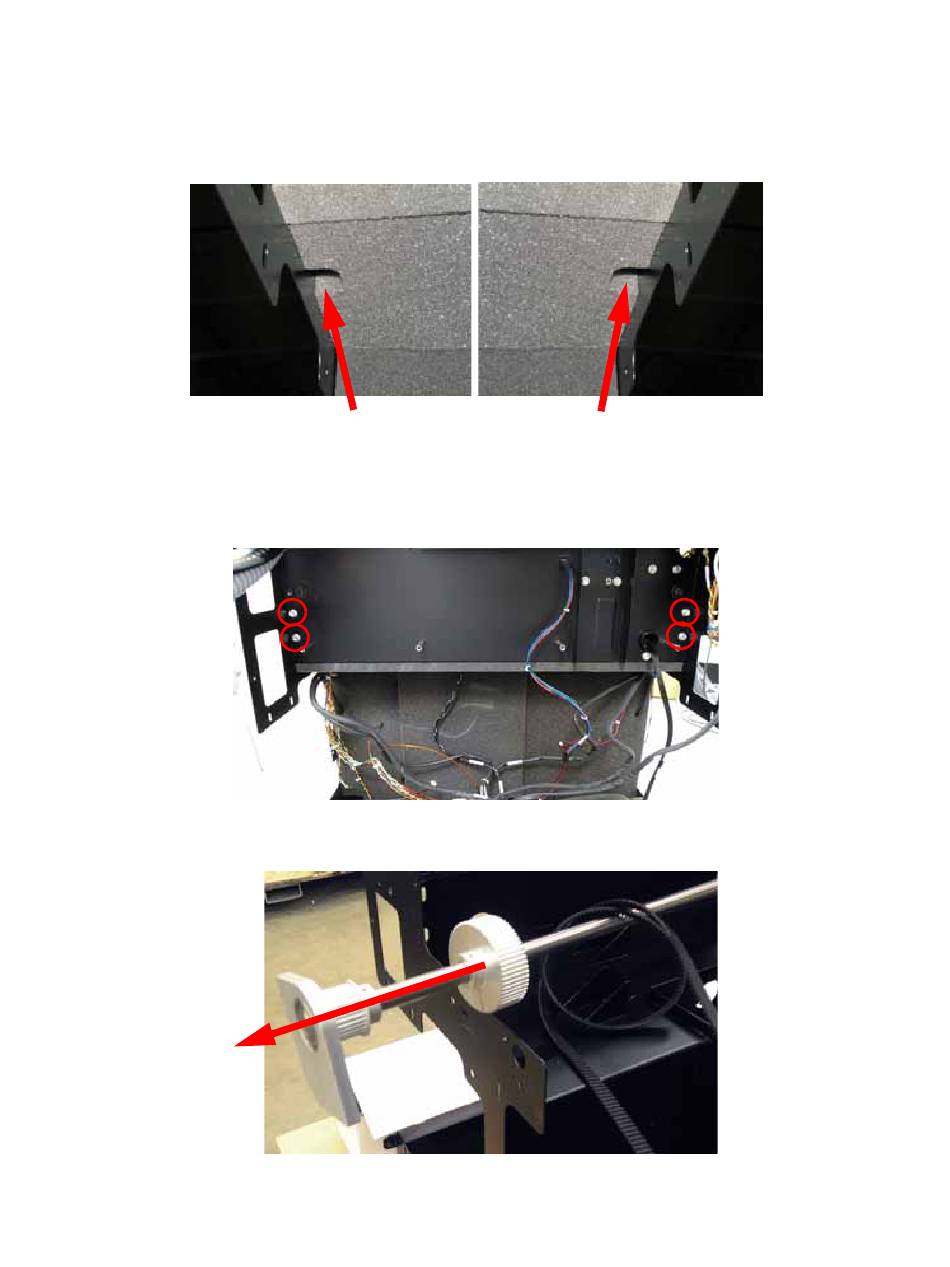

Using a ⁄ " nut driver or standard screwdriver, remove the 2 Y drive rod mounting
16
screws. See Figure 4-200.
Left side mounting screw
25.
Locate and remove the 4 upper Y drive rod mounting screws with a
standard screwdriver. See
Figure 4-201: Upper Y drive rod mounting screw locations
26.
Lift the Y drive rod, slide out through the Y belts and discard. See
uPrint/uPrint SE Service Manual
Figure 4-200: Y drive rod mounting screws
Figure 4-201.
Figure 4-202: Remove Y drive rod
Right side mounting screw
5
⁄ " nut driver or
16
Figure 4-202.
