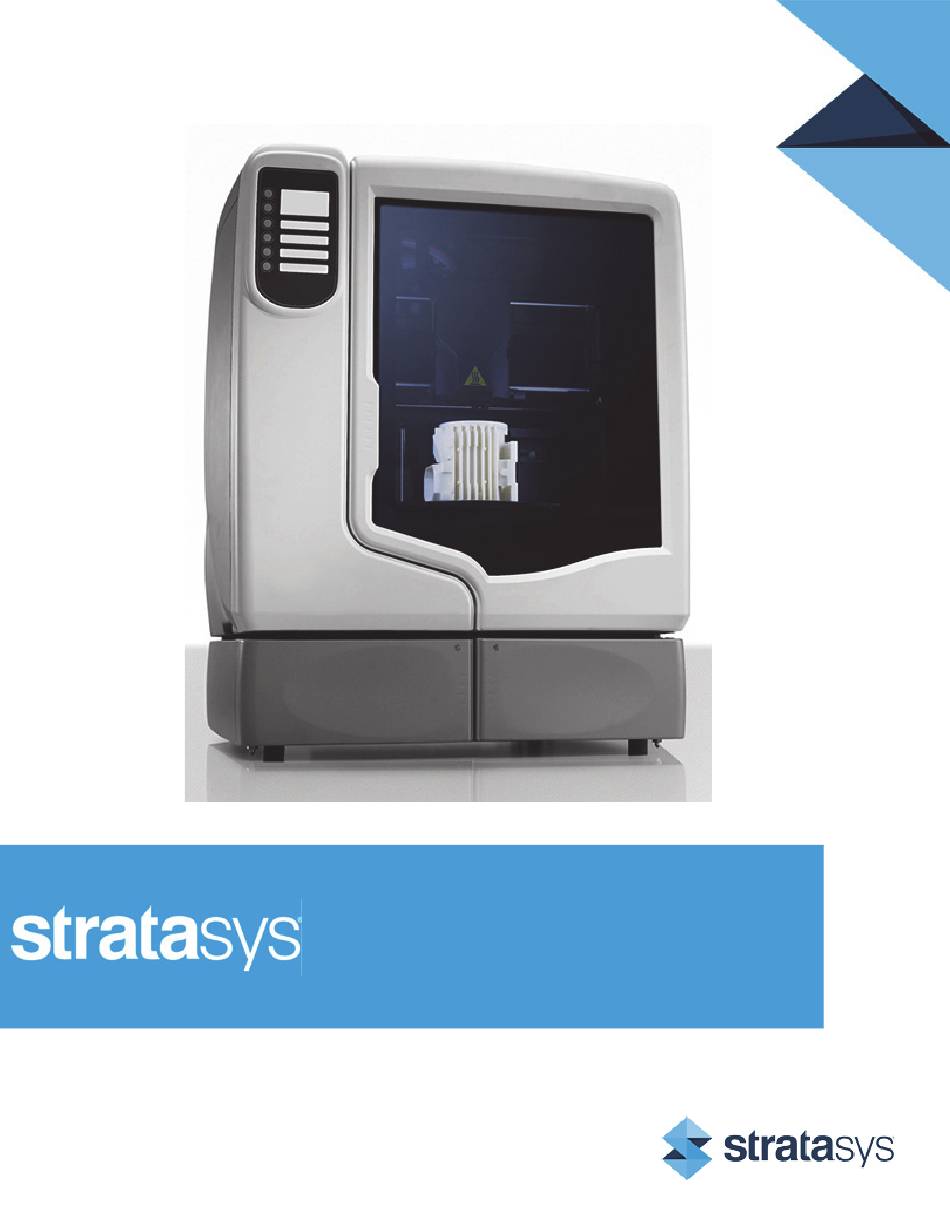

- Page 1 uPrint ® uPrint SE Plus ® SITE PREPARATION GUIDE Part No. 400717-0001_REV_A...
- Page 2 The information in this document is subject to change without notice. Stratasys, Inc. makes no warranty of any kind with regard to this material, including, but not limited to, the implied warranties of merchantability and fitness for a particular purpose.
-
Page 3: Table Of Contents
TABLE OF CONTENTS ABOUT THE UPRINT SE/UPRINT SE PLUS .......... 1 COMPONENTS.......................... 1 HIGHLIGHTS ..........................1 uPrint SE Highlights............................1 uPrint SE Plus Highlights........................... 1 HOW TO USE THIS GUIDE....................... 1 SITE PREP TASKS .................. 2 SELECTING THE SITE......................2 SPACE REQUIREMENTS ...................... - Page 4 The following basic safety tips are given to ensure safe installation, operation, and maintenance of Stratasys equipment and are not to be considered as comprehensive on matters of safety. Although the uPrint SE/ uPrint SE Plus printers are designed to be a safe and reliable, access to areas of the printer are potentially dangerous.
-
Page 5: About The Uprint Se/Uprint Se Plus
The uPrint SE/uPrint SE Plus printers incorporate the latest in innovative technologies to provide you with precise prototypes from a CAD design. The uPrint SE/uPrint SE Plus printers build models from CAD STL files that are sent to the system using a USB cable from a dedicated host computer. The printers build three- dimensional parts by extruding a bead of ABS material through a computer-controlled extrusion head, producing high quality parts that are ready to use immediately after completion. -
Page 6: Site Prep Tasks
Front Clearance Minimum 17 inches (43.2 cm) ENVIRONMENTAL REQUIREMENTS • The uPrint SE/uPrint SE Plus printers are for indoor use only. • Air quality conditions with excessive solid particulates (conductive or non-conductive) may result in system damage. Air quality conditions in which airborne oils are allowed to accumulate on or within the printer •... -
Page 7: Power Consumption
Idle sound pressure at bystander <55 dBA (idle), operating sound pressure at bystander <62 dBA (printing). POWER CONSUMPTION Power Consumption ~750W (while building) WORKSTATION REQUIREMENTS For details, see the CatalystEX Workstation Requirements document available from the Stratasys website. ELECTRICAL REQUIREMENTS AC POWER REQUIREMENTS • 100 - 240VAC • 50/60Hz •... -
Page 8: Uninterruptible Power Supply (Ups)
UNINTERRUPTIBLE POWER SUPPLY (UPS) USE AND INSTALLATION The intent of the Uninterruptible Power Supply (UPS) shutdown feature on uPrint SE and uPrint SE Plus 3D printers is to prevent required maintenance and/or system damage by safely shutting the system down in the event of an uncontrolled loss of power. -
Page 9: Parts List - Cable, Ups To 3D Printer
Figure 1: Wired-And configuration PARTS LIST – CABLE, UPS TO 3D PRINTER Item Nomenclature / Description Material Specification Conn, Hsg, Plug, 9Pos AMP - 205204-9 Pin, Male, 24-20 AWG AMP - 1-66506-0 Shell, Size 1, 9-Pin w/Grommets AMP - 748677-1 Jackscrew Pair 4-40, Knurled AMP - 747784-3 XX.x... - Page 10 Figure 2: UPS Cable Diagram...
-
Page 11: Receiving The Printer
The work area for unpacking the system should be 36-40 inches (90-100 cm) high for the single material bay option, and 46-50 inches (117-127 cm) high for additional material bay option. For detailed unpacking and setup instructions, refer to the uPrint SE and uPrint SE Plus User Guide. SITE PREPARATION CHECKLIST ELECTRICAL INSTALLATION REQUIREMENTS ... - Page 12 Customers, resellers, and Stratasys employees are encouraged to send comments about our documentation and training to c-support@stratasys.com. We greatly value your comments, review all of them, and use them to improve subsequent releases of the documentation. In your email message please include the document title, part number (located on the front cover), and page number.
