Chapter 3. CONNECTORS
AND
PINOUTS
3.1
Connector Overview
The KPA ISSPA rear panel connectors, shown in Figure 3-1, provide all necessary external
connections between the unit and other equipment. Table 3-1 on the next page summarizes the
connectors provided on the rear panel interface (as well as the front panel sample ports), grouped
according to service function.

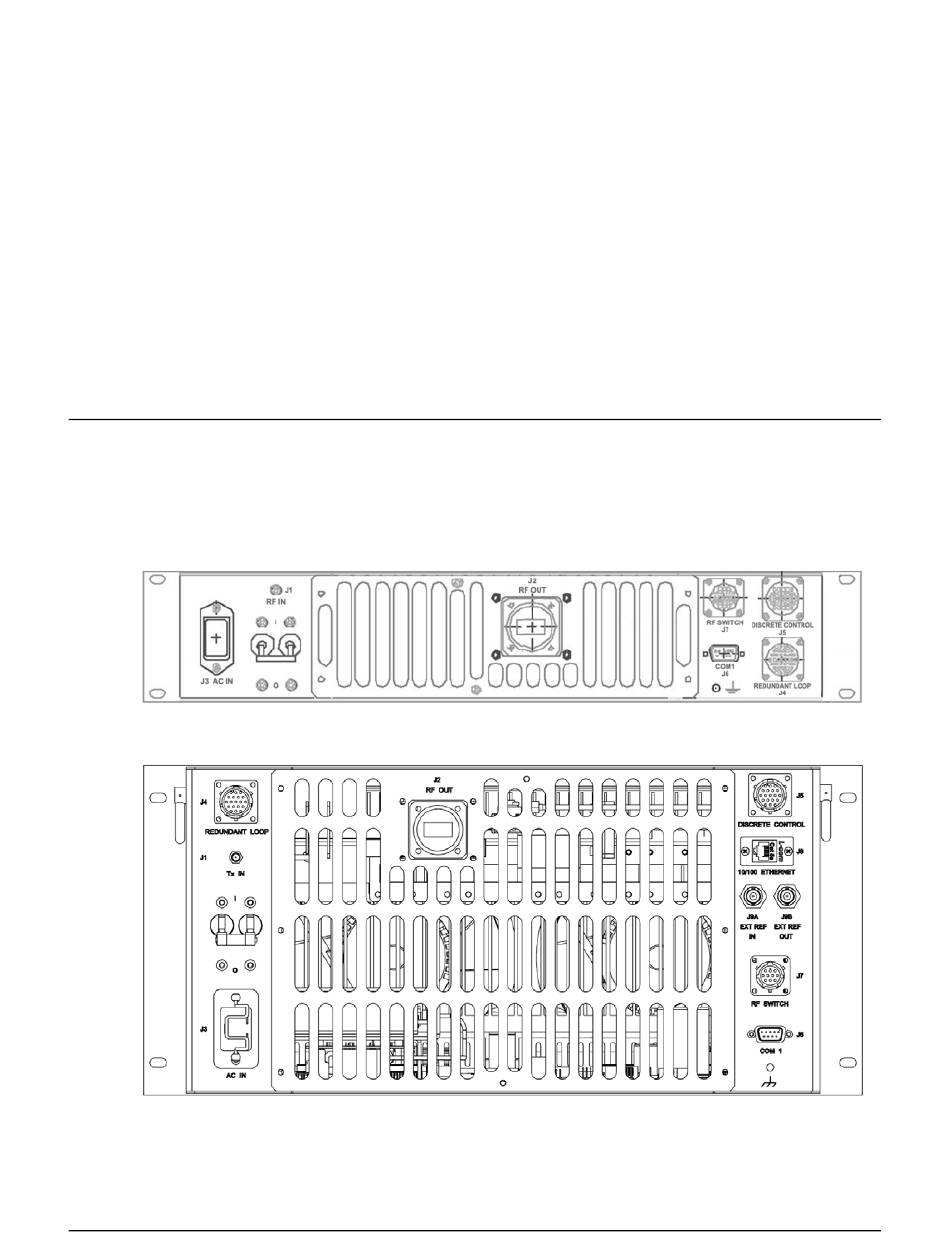

KPA-020IN Unit
KPA-040/-080/-100 Units
Figure 3-1. KPA Rear Panel Views
3–1
