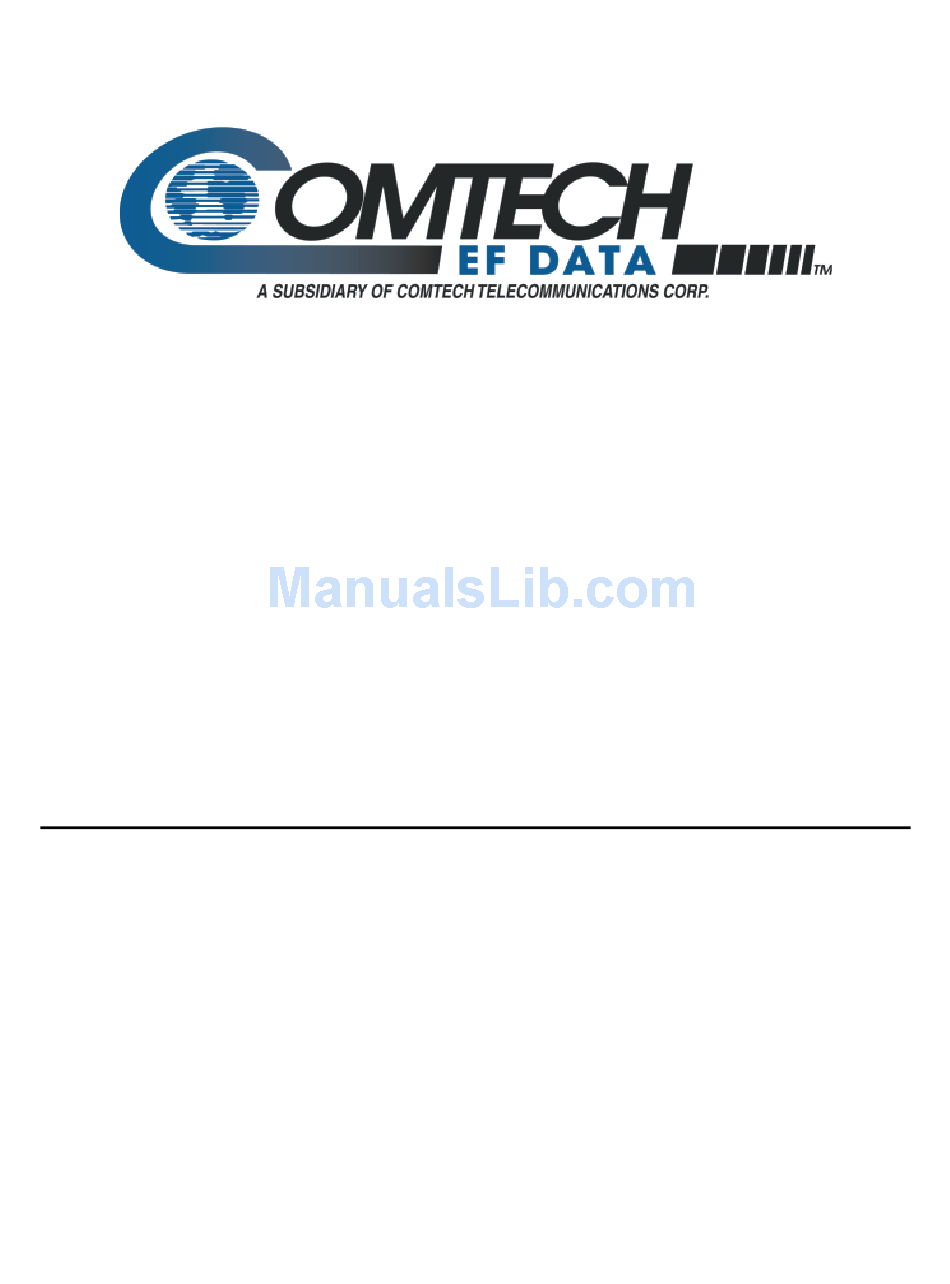

KPA
Ku-Band Solid-State Power Amplifier
KPA-020IN, KPA-040, KPA-080, KPA-100

Installation and Operation Manual

IMPORTANT NOTE: The information contained in this document supercedes
all previously published information regarding this product. Product
specifications are subject to change without prior notice.
Part Number MN/KPA.IOM Revision 0
