Patient tiles

Patient tiles display information about a patient, the patient's location, and the device
connected to the patient when the device is connected to the central station.

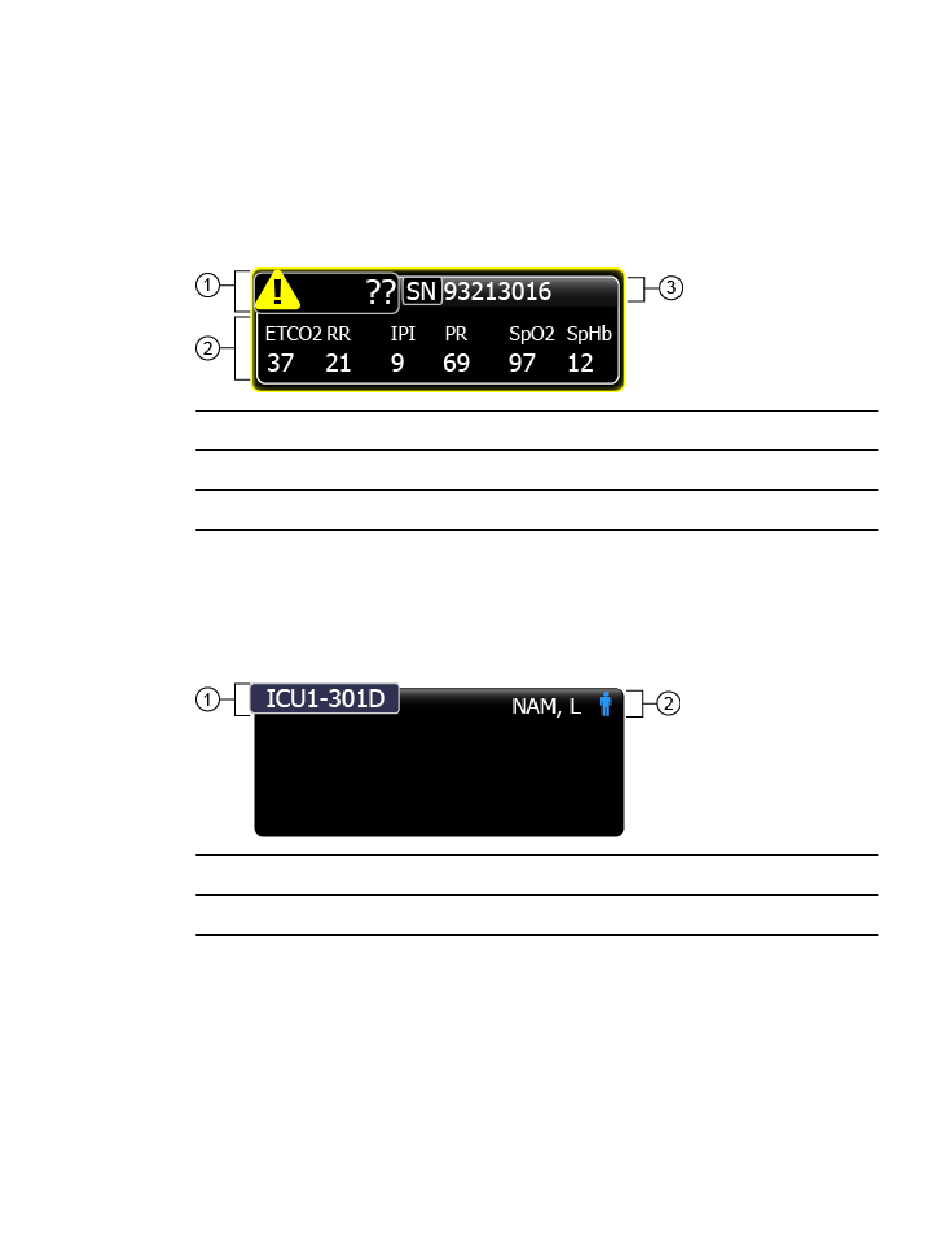

Compressed tile
Compressed tiles are used in the central station Waiting area.
1. This area displays the patient location. The area shows an alarm icon until the patient location is verified.
2. This area displays the patient parameters.
3. This area displays the monitor information or the patient information.
The patient's parameters can be displayed in episodic or continuous parameters.
Pre-admitted patient tile
This tile displays the name and location of a pre-admitted patient who is not yet
connected to a device.
1. This area displays the patient's room number.
2. This area displays the patient's name and gender.
®
Welch Allyn Connex Central Station
