Mechanical and Chassis Installation
4.2.2 Mounting the Chassis into the BB-5008 or BB-5014
The chassis is mounted using the four #6 hex nuts provided. Two across the top portion and
two across the bottom of the chassis. The inner door is mounted using four hex nuts on the left
side and secured with two screws on the right side.

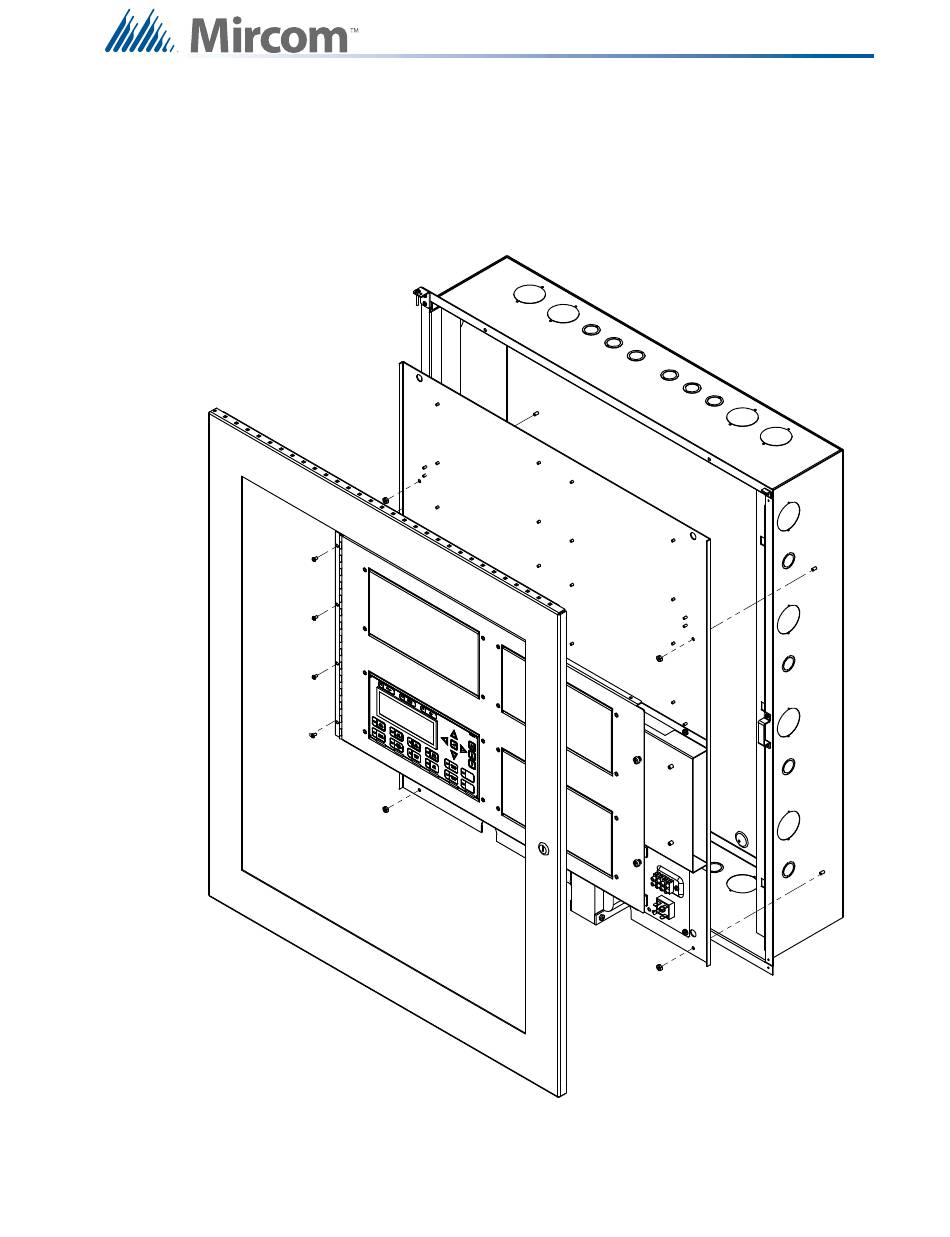

Figure 9 Chassis Installation into backbox BB-5008 and BB-5014
