5.0

Module Mounting Locations

The FX-2003-6DS/12DS or FX-2017-12ADS Main Chassis come pre-assembled with a main
chassis, display components and boards. Install adder modules of different types as shown in
the diagrams on the following pages.
PR-300 CITY TIE MODULE
UDACT-300A
DIALER MODULE

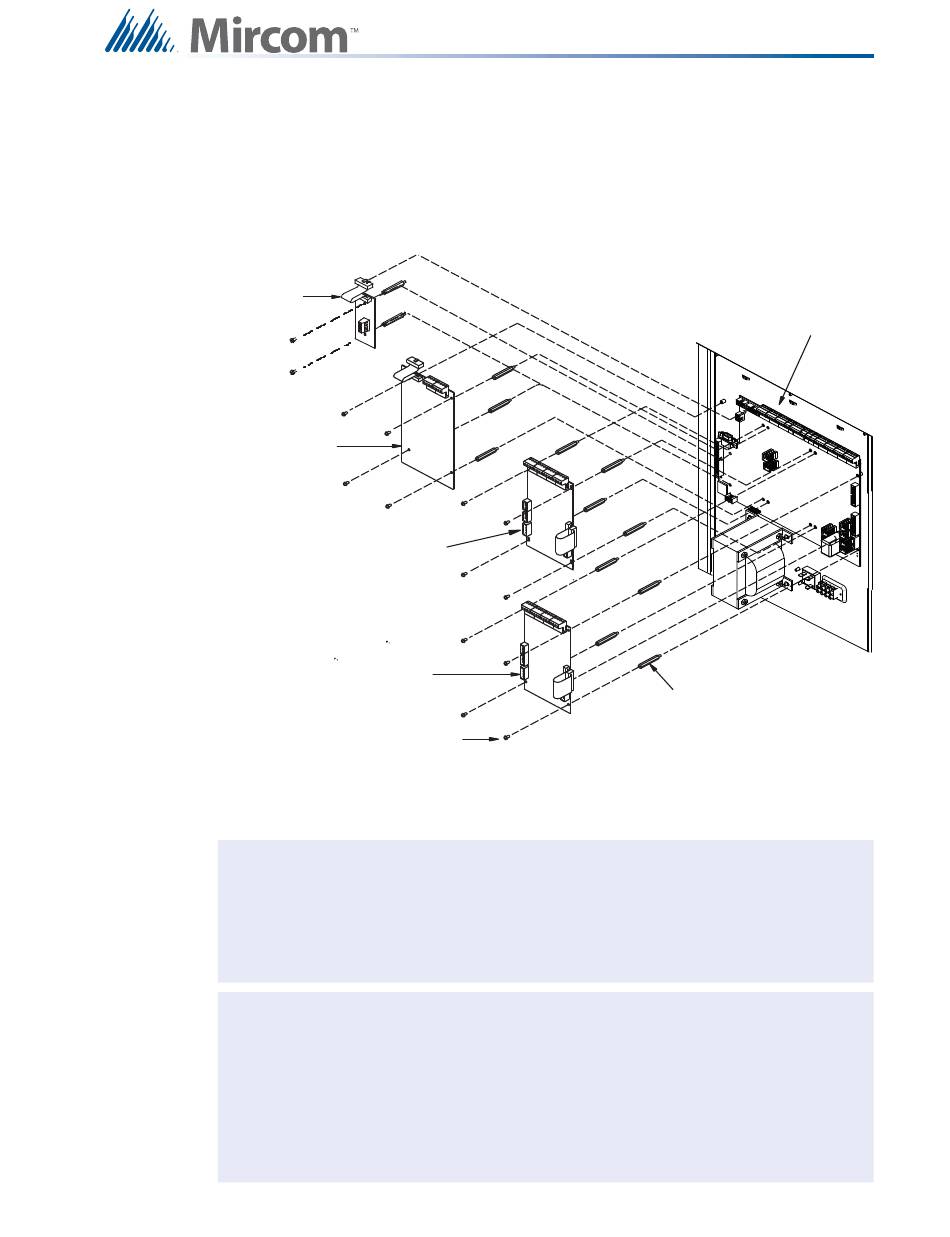

Figure 11
i
Note:
i
Notes:
OTHER ADDER
CIRCUIT MODULE
OTHER ADDER
CIRCUIT MODULE
SCREWS
PROVIDED
Module Mounting Locations View #1
To enable communication from the main module to all of the adder modules, it is
necessary to add a continuity jumper on the last adder module in a chain (see the
appropriate module settings section to verify the location of the continuity jumper
on a particular circuit adder module). Only the last circuit adder module should
have a jumper plug on its continuity jumper; all others must be left without a
jumper plug.
Front plate is not shown. Reserved for PR-300 or UDACT-300A. Other circuit
adder modules may be:
DM-1008A Detection Circuit Adder Module
•
SGM-1004A Signal Circuit Adder Module
•
RM-1008A Relay Circuit Adder Module
•
ALC-198S Loop Adder Module
•
ALC-396S Loop Adder Module
•
ALC-H16 Hardwire Loop Controller Module
•
Module Mounting Locations
FX-2000
MAIN CHASSIS
M/F HEX SPACER
23
