4.1.5 FX-2003-12XTDS Mechanical Installation
FX-2003-12XTDS is an expanded version of the FX-2003-12DS.
Dimensions
Finish
Adhere trim ring to wall
surface around backbox.
FA-XT-TRB
Front Door
Trim Ring for
(Inside View)
Flush Mounting

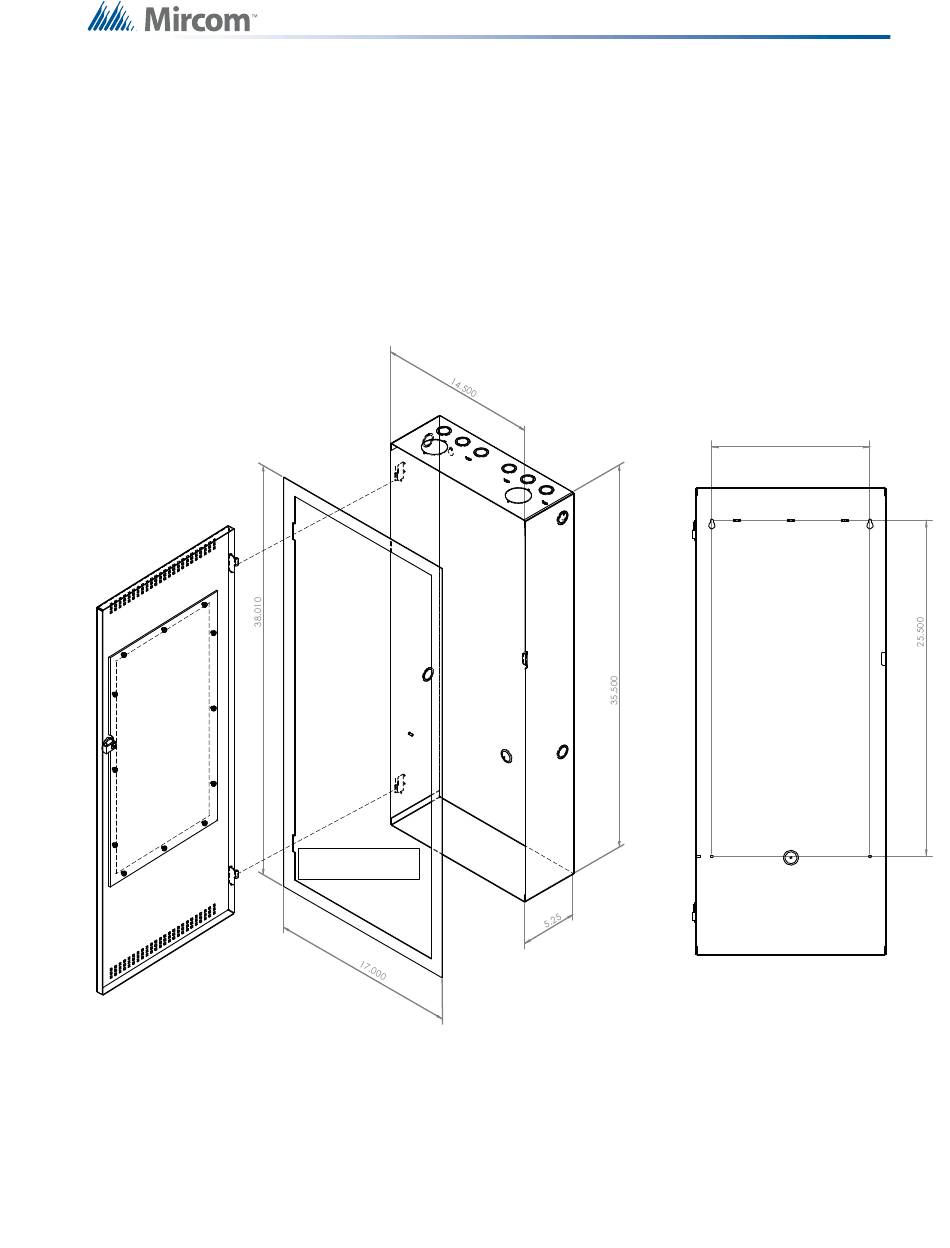

Figure 5 BBX-1024XT/R Backbox Enclosure with Trim Ring
14.76" wide by 35.8" long by 5.45"
16GA (0.059") thick for backbox
14GA (0.075") thick for door
Painted except for hinges
Backbox
Mechanical and Chassis Installation
12.000
Mounting Holes
Backbox
17
