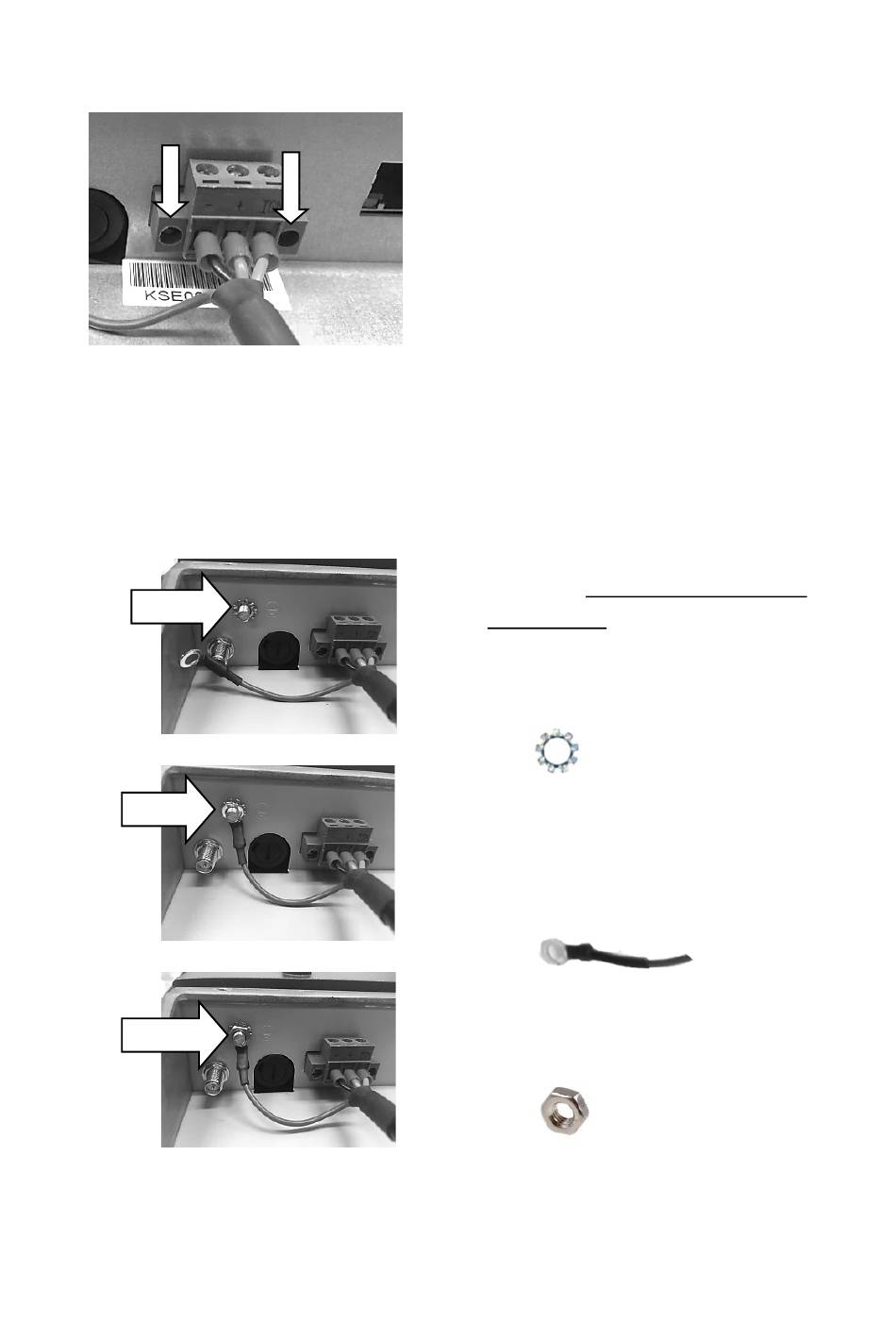

STEP 1: Plugging in and screwing on the power supply cable
STEP 2: Secure the ring tongue of the power supply cable to the
ground bolt (important for correct grounding!)
1
2
3
− Plug the power supply cable into the
power supply plug-in location.
− Tighten both mounting screws hand-
tight. The screws required for this are
already fixed in the delivered cable plug.
NOTICE: To make sure the device is
grounding correctly, it is important to
follow the correct order to put the
components on the ground bolt as
below (from inside to outside):
1. Place toothed washer first:
2. Then put the ring tongue of the
power supply cable (flat side
faces the DLT-V6210 connector
panel):
3. Place the nut and tighten it
hand-tight:
