Web-GUI - Existing Video Wall Configuration

Once a Video Wall has been created, named accordingly, and groups / presets have been assigned, the configured
Video Wall can be viewed from the main Video Wall Configuration page. The dropdown Configuration box allows
for the Configuration of the Video Wall to be changed accordingly. The 'Refresh Configuration' button refreshes
configuration on screen when using a third party control system to check the command has worked when testing.

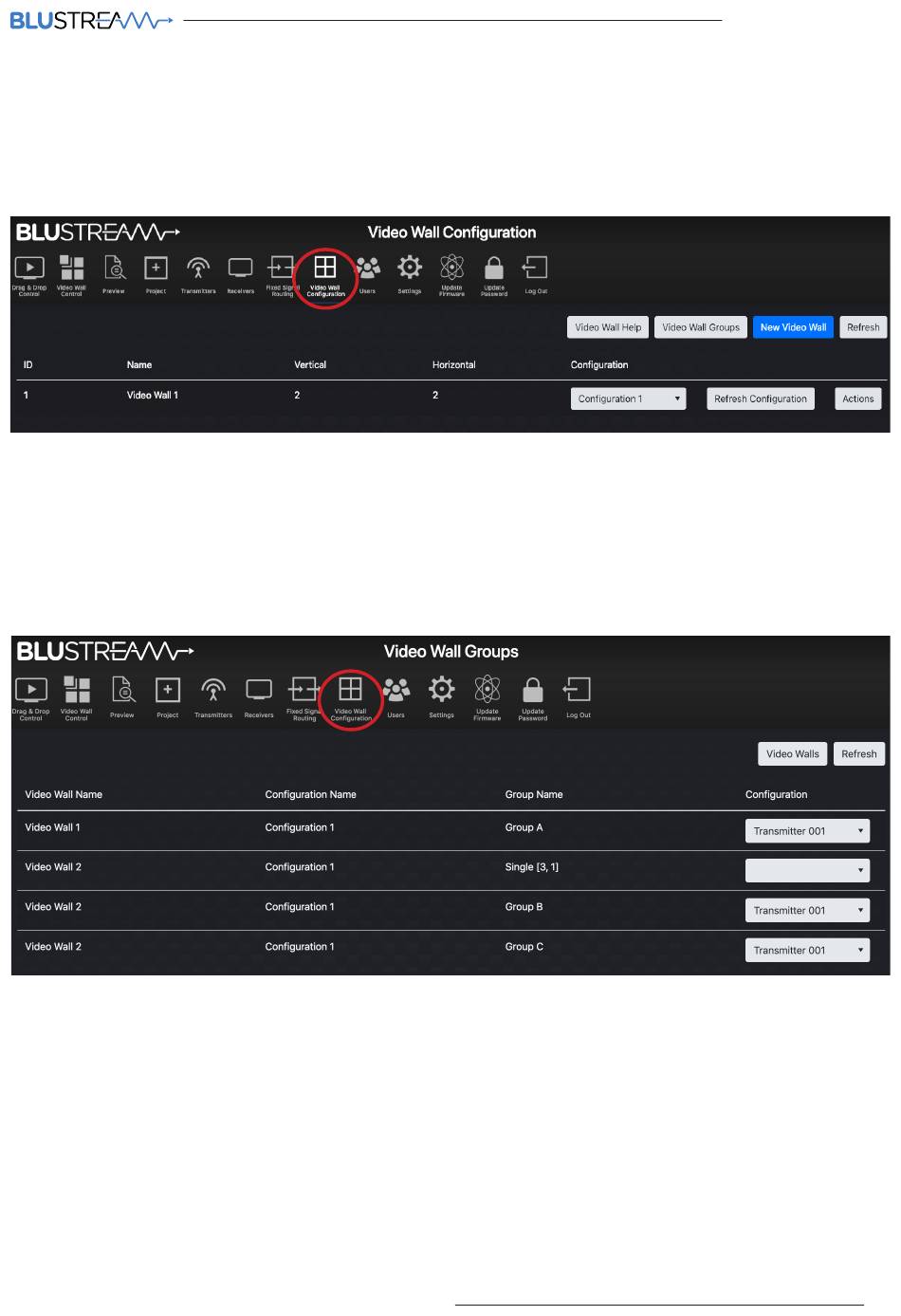

To amend an existing Video Wall, click the 'Actions' button for the Video Wall that needs to be updated. Click the
button marked 'Update Settings' button to return to the Update Video Wall page as shown on page 29. You can also
'Remove' a Video Wall from the system. Please note: once a Video Wall has been removed, it cannot be undone.
Configurations / presets that have been designed within the system will now appear within the Video Wall Groups
page. The Video Wall Configuration page allows for a group to be switched:
Using the dropdown 'Configuration' selection, any Transmitter can be chosen for each of the different available
Groups across all defined Video Walls. Where the Video Wall is switched between different Configurations (where
single or multiple Groups may be available) these can be switched from the same page. In the above example,
Video Wall 2, in Configuration 1, has two different Groups of screens - these Groups can be switched by using the
dropdown menus alongside each. The single screens within Configuration 1 can be switched simultaneously to the
same source by using the dropdown, however, if it is required to watch individual sources then use the Video Wall
Control page.
The 'Refresh' button refeshes the current page and the current Configuration of the Video Wall array being
displayed. This is particularly helpful when testing Video Wall configuration commands from a third party control
system.
Please see the advanced API commands for use with third party control systems for Video Wall control,
Configuration switching and Group selection on page 46 of this guide.
