Fixed Routed Audio
The ACM200 allows for the audio component of a HDMI signal to be routed independently throughout the
Blustream Multicast system. Under normal operation the embedded audio within a HDMI signal will be distributed
with the associated video signal from Transmitter to Receiver/s.
The fixed audio routing capabilities of the ACM200 allow for the audio track from one source to be embedded onto
another Transmitters video stream.

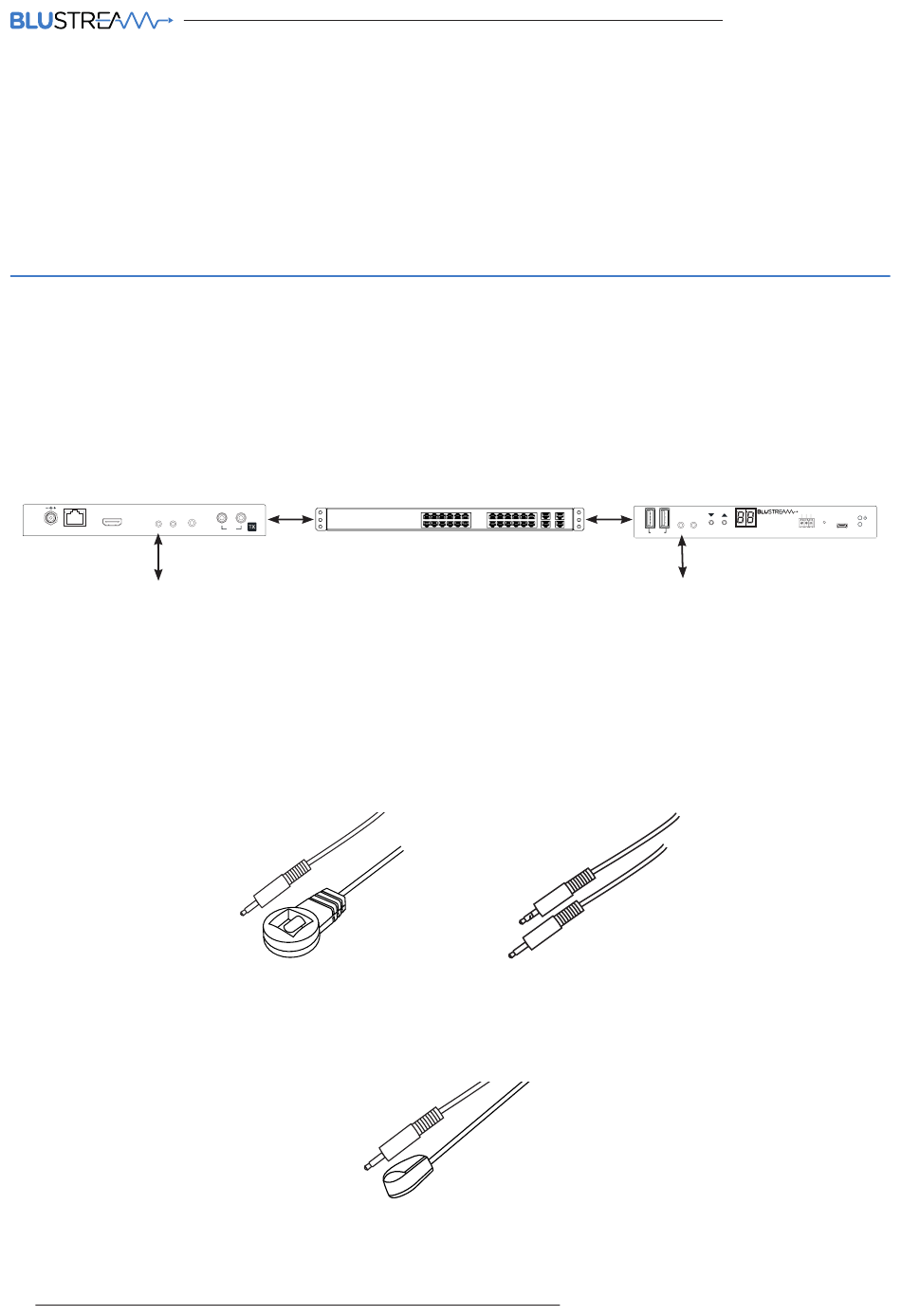

Fixed Routed IR
The fixed IR routing feature allows a fixed bi-directional IR link between 2x Multicast devices. The IR signal is only
routed between configured RX to TX, or TX to TX. This can be useful for sending IR from a centrally located third
party control solution (ELAN, Control4, RTi, Savant etc) and using the Blustream Multicast system as a method of
extending IR out to a display or another product in the system. The IR link is bi-directional so can also be sent back
the opposite way at the same time.
Rx Tx Gnd
CH SELECT
CH
MULTICAST UHD
RS-232
UPDATE
HDMI IN
IR
IR
DC IN
LAN / PoE
IN
OUT
24~56V
IR
Third party control system
i.e. - Control4, ELAN, RTi etc.
Connections:
The third party control processor IR, or Blustream IR receiver, is connected to the IR RX socket on the Multicast
Transmitter or Receiver.
Please note: You must use Blustream 5V IRR Receiver or Blustream IRCAB (3.5mm stereo to mono 12V to 5V IR
converter cable). Blustream Infrared products are all 5V and NOT compatible with alternative manufacturers
Infrared solutions.
The Blustream 5V IRE1 Emitter is connected to the IR OUT socket on the Multicast Transmitter or Receiver.
The Blustream IRE1 & IRE2 Emitters are designed for discrete IR control of hardware.
(IRE2 - Dual Eye Emitter sold separately)
26
IR
IR
LINK
USB
CH SELECT
IP200UHD-TX
1 USB 2
OUT
IN
AUDIO
L / R
IN
LAN / PoE
LOOP OUT
Rx Tx Gnd
LINK
CH
RS-232
UPDATE
MULTICAST UHD
IP200UHD-RX
Rx Tx Gnd
HDMI OUT
CH SELECT
CH
L / R
DC IN
RS-232
UPDATE
MULTICAST UHD
24~56V
HDMI IN
AUDIO
IR
IR
DC IN
LAN / PoE
IN
OUT
IN
24~56V
ACM200
IR
IR
LINK
USB
CH SELECT
IP200UHD-TX
CH
OUT
IN
1 USB 2
HDMI OUT
IR
L / R
LAN / PoE
LOOP OUT
To display device
www.blustream.co.uk / www.blustream.com.au
USER MANUAL
Rx Tx Gnd
LINK
RS-232
UPDATE
MULTICAST UHD
IP200UHD-RX
DC IN
L / R
24~56V
