ACM200 Control Ports

RS-232 Normal

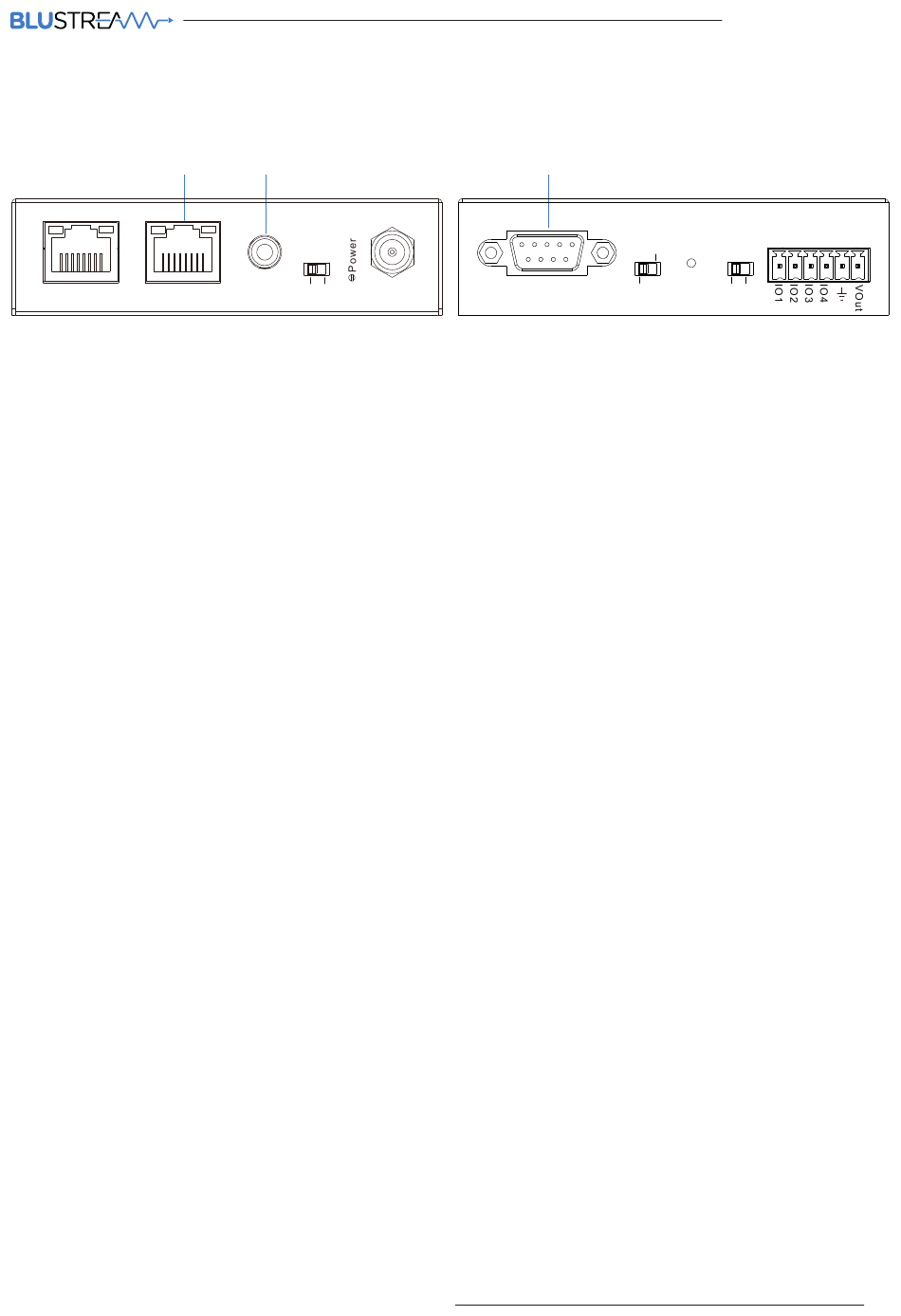

The ACM200 communication ports are located on both end panels and include the following connections:
A
PoE Link
Yellow Green Yellow
Video LAN(PoE) Control LAN
Connections:
A. TCP/IP – for full Multicast system control (RJ45 Connector)
B. Infrared (IR) Input* - for Multicast switching control only (3.5mm stereo jack)
C. RS-232 – for full Multicast system control / RS-232 guest mode (DB9)
* Please note: the ACM200 can be used with both 5V and 12V IR systems. Please ensure that the IR switch (adjacent
to the IR port) is correctly selected to the specification of the IR input voltage required.
TCP/IP:
The Blustream ACM200 can be controlled via TCP/IP.
For the full list of protocols please see 'RS-232 & Telnet Commands' located at the rear of this manual.
A 'straight-through' RJ45 patch lead should be used when connected to a network switch.
Control Port:
Default IP:
Default Username:
Default Password:
RS-232:
The Blustream ACM200 can be controlled via serial using the serial DB9 connector. Default settings below:
For the full list of command protocols please see 'RS-232 & Telnet Commands' located at towards rear of this
manual.
Baud Rate:
Data Bit:
Parity:
Stop Bit:
Flow Control:
The Baudrate for the ACM200 can be adjusted using the ACM200 built-in web-GUI, or by issuing the following
command via RS-232 or Telnet:
RSB x : Set RS-232 Baud Rate to X bps
Where X =
contact
support@blustream.co.uk / support@blustream.com.au
MCU
IO Level
Reset 5V 12V
B
Link
Green
IR
5V 12V
IR Ctrl
23
192.168.0.225
admin
1 2 3 4
57600
8-bit
None
1-bit
None
0 : 115200
1 : 57600
2 : 38400
3 : 19200
4 : 9600
ACM200
RS-232
DC 12V
PoE
Yellow
Video LAN(PoE)
C
MCU
Normal Reset
Link Link
Green Yellow Green
IR Ctrl
Control LAN
ACM200
USER MANUAL
ACM200
IO Level
5V 12V
IR
5V 12V
DC 12V
05
