Introduction

FEATURES:

• Encodes HDMI ARC (Audio Return Channel) 2ch audio to a Dante® digital signal

• Supports: 44.1, 48, & 96kHz sample rates @ 24 Bit

• Configurable Dante® device latency (supports 2, 3, 4, 5 or 10ms configurable using Dante® Controller)

• Input sensitivity/volume control adjustable via CEC, web GUI or API

• Supports AES67 RTP audio transport

• Features Class 0 802.3af PoE for powering of product from any PoE switch

• Local 12v power supply input for when network switch does not support PoE*

* PS121PH power supply sold separately

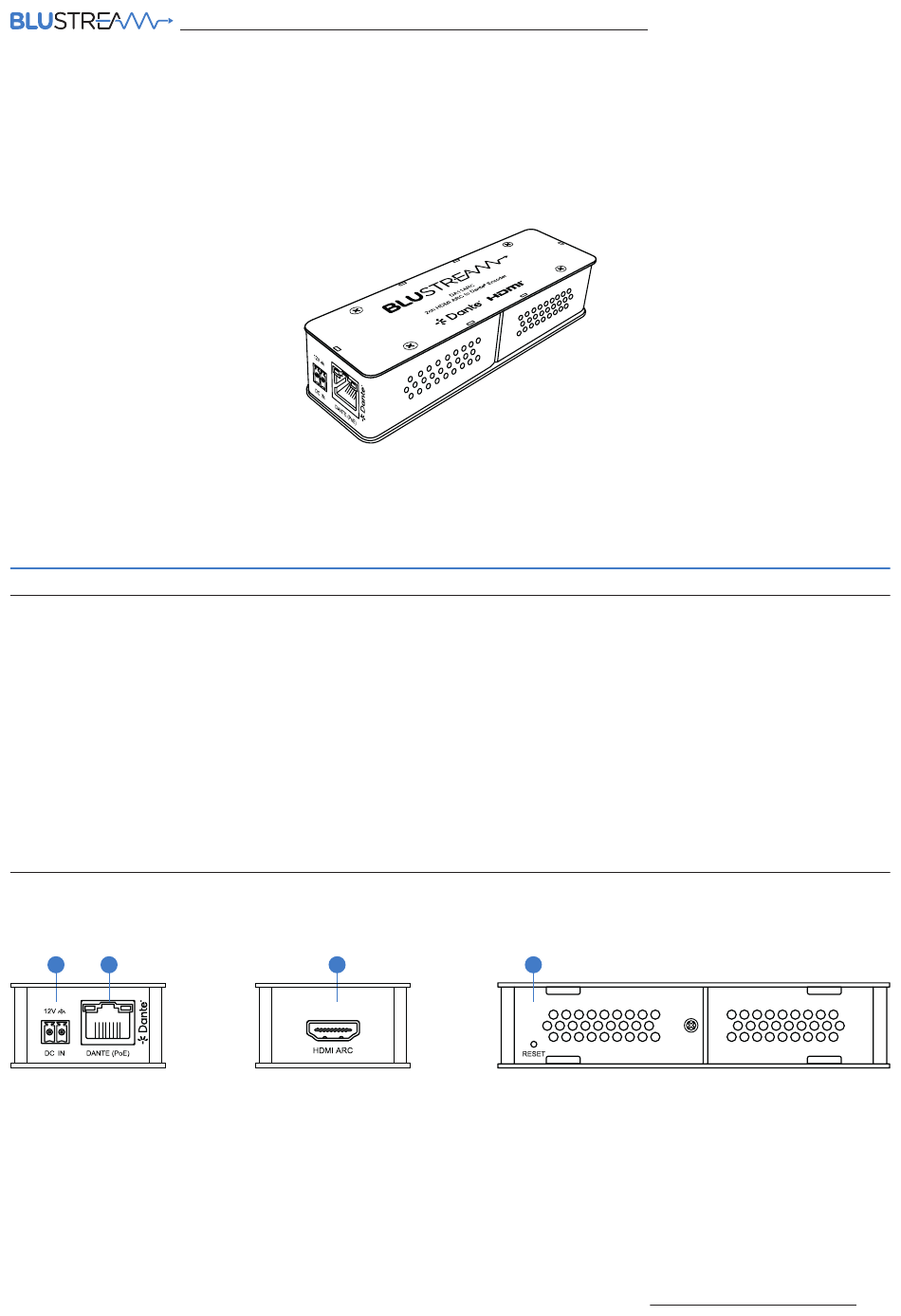

Front Panel

Connections:

DC Input - Connect to +12VDC power supply (not supplied) if device is not powered via a PoE switch

Dante® Audio Input/Output - RJ45 socket connects Dante® network and powers device via PoE

HDMI ARC Audio Input - HDMI output connector connects to displays ARC HDMI Input®

Reset Switch - Press and hold to reset device

Contact:

support@blustream.com.au

DA11ARC

Quick Reference Guide

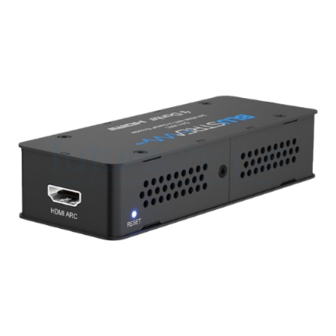

Our DA11ARC has been designed to encode HDMI ARC (Audio Return Channel) 2ch audio

to a Dante® digital signal. The DA11ARC is a plug & play device that is powered using PoE

(Power Over Ethernet). The DA11ARC also supports AES67 RTP audio transport.

Rear Panel

support@blustream-us.com

Side Panel

support@blustream.co.uk

DA11ARC

QUICK REFERENCE GUIDE

Need help?

Do you have a question about the DA11ARC and is the answer not in the manual?

Page 1 Our DA11ARC has been designed to encode HDMI ARC (Audio Return Channel) 2ch audio to a Dante® digital signal. The DA11ARC is a plug & play device that is powered using PoE (Power Over Ethernet). The DA11ARC also supports AES67 RTP audio transport.
Page 2 Dante products that are set up with the same sample rate. A mismatch in sample rate may stop audio from transmitting. Under the “Device Config” screen we can also adjust the latency of the DA11ARC from 2, 3, 4, 5 or 10 milliseconds. www.blustream.com.au www.blustream-us.com...
Page 3 Web Interface Module The DA11ARC features an in-built Web GUI which can be used for control and configuration of the device. By default the device is set to DHCP, however if a DHCP server (eg: network router) is not installed the device will receive a link local address in the 169.254.xxx.xxx range.
Page 4 Specifications Package Contents Audio Output Connector: 1 x RJ45, female (100 Mbps Dante® network) • 1 x DA11ARC • 1 x Quick Reference Guide Audio Input Connector: 1 x HDMI, female (2ch ARC audio only) Casing Dimensions (L x W x H):...
