Web-GUI - New Video Wall Configuration

Blustream Multicast Receivers can be configured to be part of a Video Wall array within the ACM200. Any Multicast
system can contain up to 9x Video Wall arrays of differing shapes and sizes. Ranging from 1x2 up to 9x9. Each Video
Wall set-up will include the following:
Video wall creation - the allocation of Multicast Receivers to be part of a Video Wall display (number of screens
horizontally and vertically, assigning of Multicast Receivers to each area of the Video Wall etc)
Configuration - individual configurations of screens within a Video Wall. An example of a configuration would
be all screens assigned as a single Video Wall, all screens configured as individual displays, multiple Video Walls
configured within a larger Video Wall (Video Wall groups – see below).
Groups - a Video Wall group is the 'Grouping' of Multicast Receivers within a Video Wall allowing simplified source
selection and configuration recall of more than one Multicast Receiver at the same time.

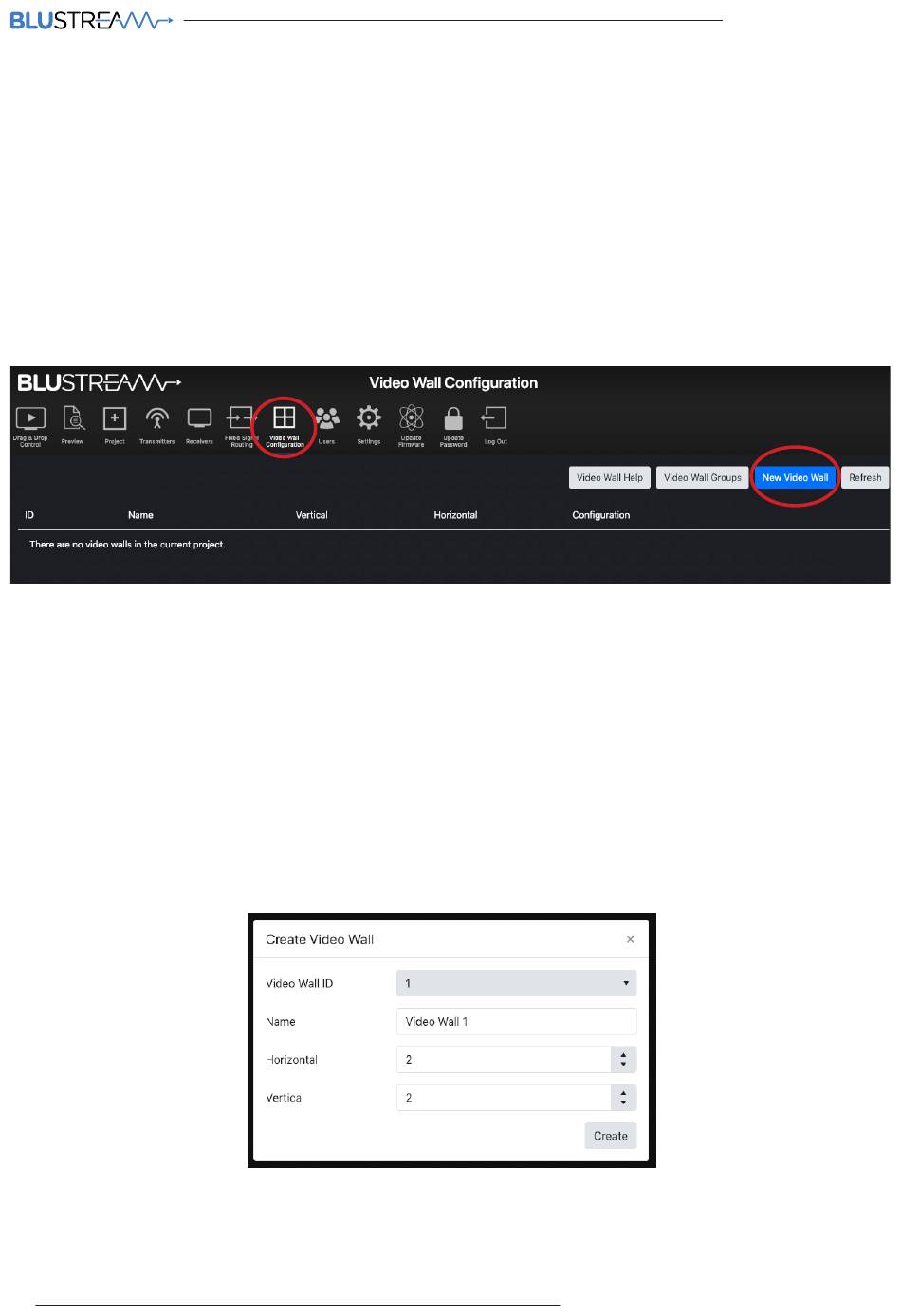

Options on this page include:
1. Video Wall Help: help with creating a Video Wall array can be found by clicking this button.
2. Video Wall Groups: this option will not be used until a Video Wall array has been created. Please see page 31
for this option once a Video Wall has been configured.
3. New Video Wall: configure a new Video Wall array. See below for the creation of a new Video Wall array.
Creating a New Video Wall:
The Multicast Receivers that will be used for the Video Wall should have been configured as individual Receivers
before proceeding past this point. It is good practice to have already named the Multicast Receivers for ease of
configuration i.e. "Video Wall 1 - Top Left".
Enter the relevant information into the pop-up window to name and select the number of panels both horizontally
and vertically within the Video Wall array. Once the correct information has been inserted onto the screen, select
'Create' to create the Video Wall array template within the ACM200.
