Web-GUI - Receivers - Actions

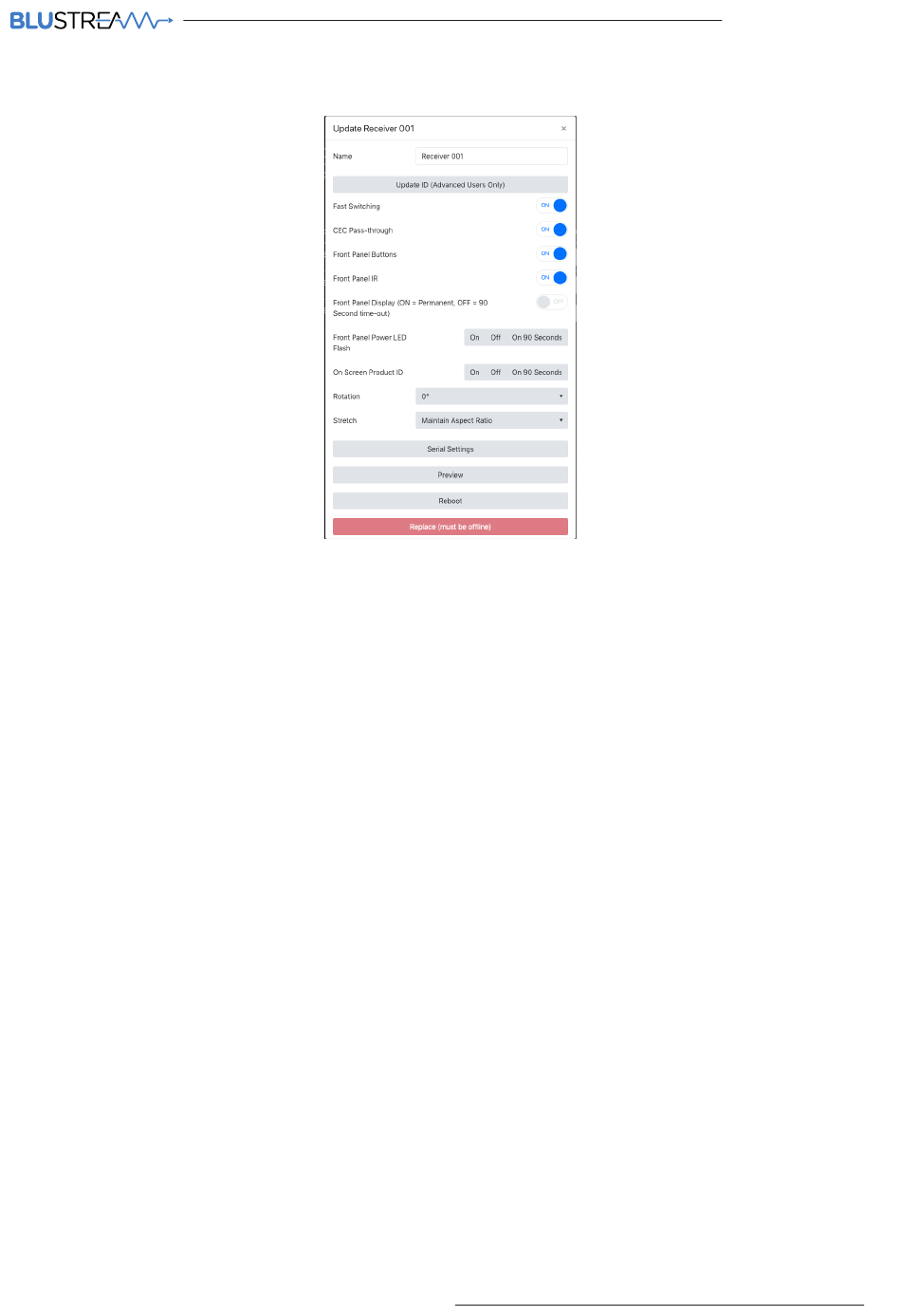

The 'Actions' button allows for
advanced features of the Receiver to
be accessed and configured.
1. Name - can be amended by entering a name into the free-form text box. Please note: this is limited to 16
characters in length, and some special characters may not be supported.
2. Update ID - the ID is defaulted to the last 3 digits of the device IP address i.e. Receiver ID 3 is assigned an IP
address of 169.254.6.3. Update ID allows you to amend the ID of the unit (not recommended).
3. Fast Switching - switches the video first, with the audio, IR, RS-232, USB / KVM all switched after. Please note:
whilst video feed may switch faster, other parts of the feed (i.e. audio, IR etc) will take slightly longer to catch up.
4. CEC Pass-through (On / Off) - allows for CEC (Consumer Electronic Command) to be sent via the Multicast
system to/from the display connected to the Receiver. Please note: CEC must also be enabled on the
Transmitter.
5. Front Panel Buttons (On / Off) - the Channel buttons on the front of each Receiver can be disabled to stop
unwanted switching or manual configuration once the Receiver have been configured.
6. Front Panel IR (On / Off) - enables or disables the Receiver from accepting IR commands to change source.
7. On Screen Product ID (On / Off / 90 Seconds) - turn On / Off the On Screen Product ID. Toggling the On Screen
Product ID On shows the ID (i.e. ID 001) of the Receiver overlayed on the display connected to the device. If 90
Seconds is selected, the OSD displays for 90 seconds. Toggling On Screen Product ID Off removes the OSD.
8. Front Panel Power LED Flash (On / Off / On 90 Seconds) - will flash the power LED on the front panel of the
Receiver to help identify the device. Options are to flash the power light continuously, or flash the LED for 90
seconds. Please note: the front panel LED's will time-out after 90 seconds.
9. Front Panel Display (On / 90 Seconds) - use this to enable / disable the LED display on the front of the
Receiver. The front panel display will automatically time-out after 90 seconds.
10. Rotation - rotate the image by: 0, 90, 180 and 270 degrees.
11. Stretch - re-sizes the image to 'Stretch' to the aspect of the display, or 'Maintain Aspect Ratio' of the source
device.
12. Serial Settings - enable serial 'Guest Mode' and set the serial port settings for the device (i.e. Baud Rate, etc).
13. Preview - displays a pop-up window with live screen grab of the source device connected to the Receiver.
14. Reboot - reboots the Receiver.
15. Replace - used to replace an offline Receiver. Please note: the unit to be replaced must be offline for this feature
to be utilised, and the new Receiver must be a factory default unit with IP address: 169.254.100.254.
16. Remove from Project - removes the Receiver from the project. This does not factory reset the Receiver.
17. Factory Reset - restores the Receiver to it's original default settings and sets the default IP address.
