ACM200 Control Ports - IR Control

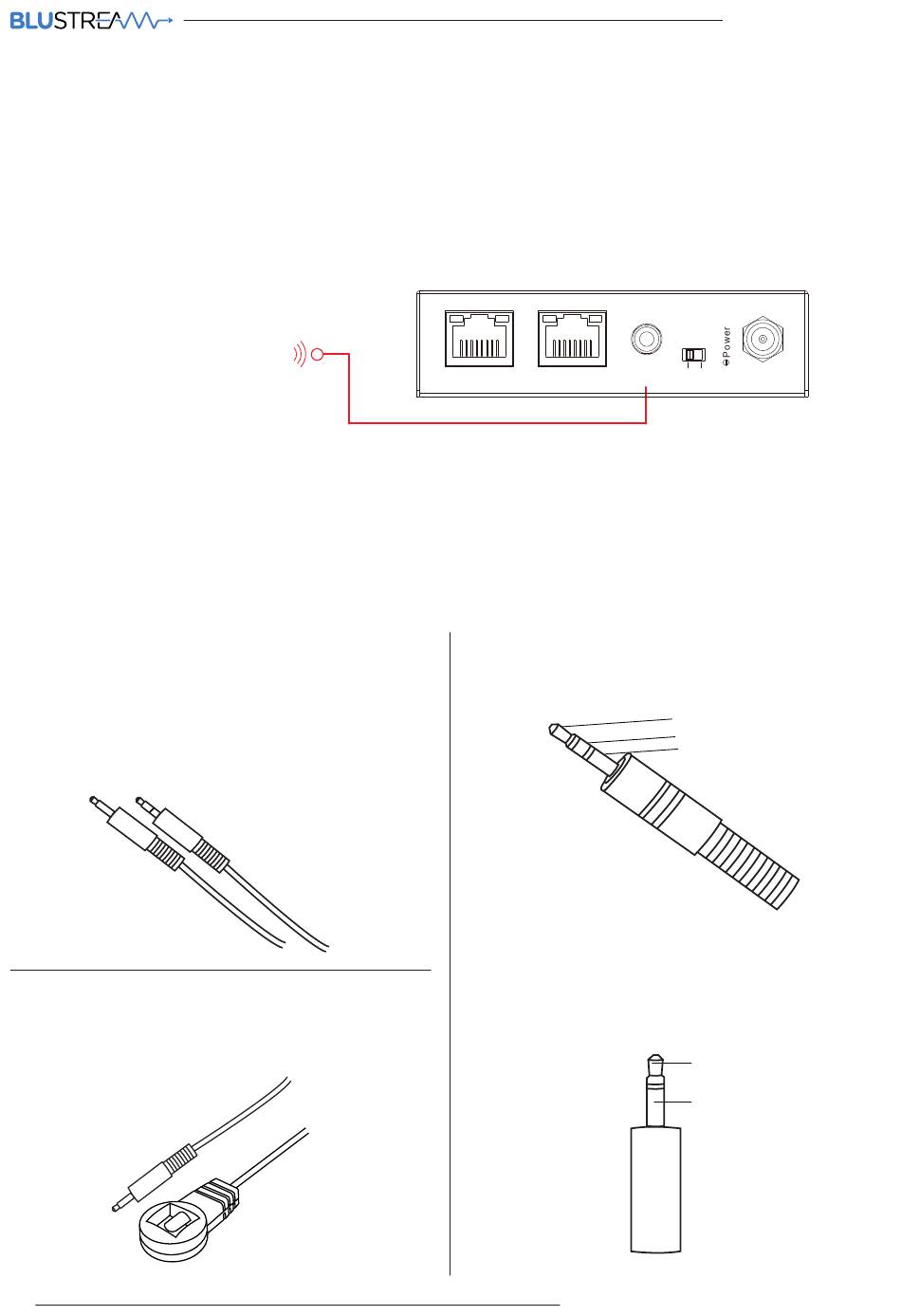

The Multicast system can be controlled using local IR control from a third party control system. Source selection is
the only feature available when using local IR control - advanced features of the ACM200 such as video wall mode,
audio embedding etc. can only be achieved using RS-232 or TCP/IP control.
Blustream have created 16x input & 16x output IR commands allowing source selection of up to 16x IPxxxUHD-TX
Transmitters on up to 16x IPxxxUHD-RX Receivers. For systems larger than 16x source devices (IPxxxUHD-TX) RS-232
or TCP/IP control will be required.
Third Party Control System
(source selection only)
The ACM200 is compatible with both 5V and 12V IR equipment. When the ACM200 is being used to receive an IR
input into the IR Ctrl port, the adjacent switch must be toggled correctly to suit the IR voltage line of the chosen
control system before connection.
Please note: Blustream IR accessories are all 5V
3.5mm Stereo to Mono Cable - IR-CAB (included)
Blustream IR Control cable 3.5mm Mono to 3.5mm
Stereo for linking third party control solutions to
Blustream products.
Compatible with 12V IR third party products.
Please note: Cable is directional as indicated
IR Receiver - IRR - stereo 3.5mm jack (optional)
Blustream 5V IR receiver to receive an IR signal and
distribute through Blustream products
06
RS-232 Normal
PoE
Link
Yellow Green Yellow
Rx Tx Gnd
IR IR
CH Select
TX RX RS-232
Video LAN(PoE) Control LAN
Wiring pin - IR-CAB - stereo 3.5mm jack:
Wiring pin - IR-CAB - mono 3.5mm jack:
ACM200
ACM200
MCU
IO Level
Reset 5V 12V
Link
Green
IR
MULTICAST UHD
CH
5V 12V
IR Ctrl DC 12V
Signal
5V
Ground
Signal
Ground
