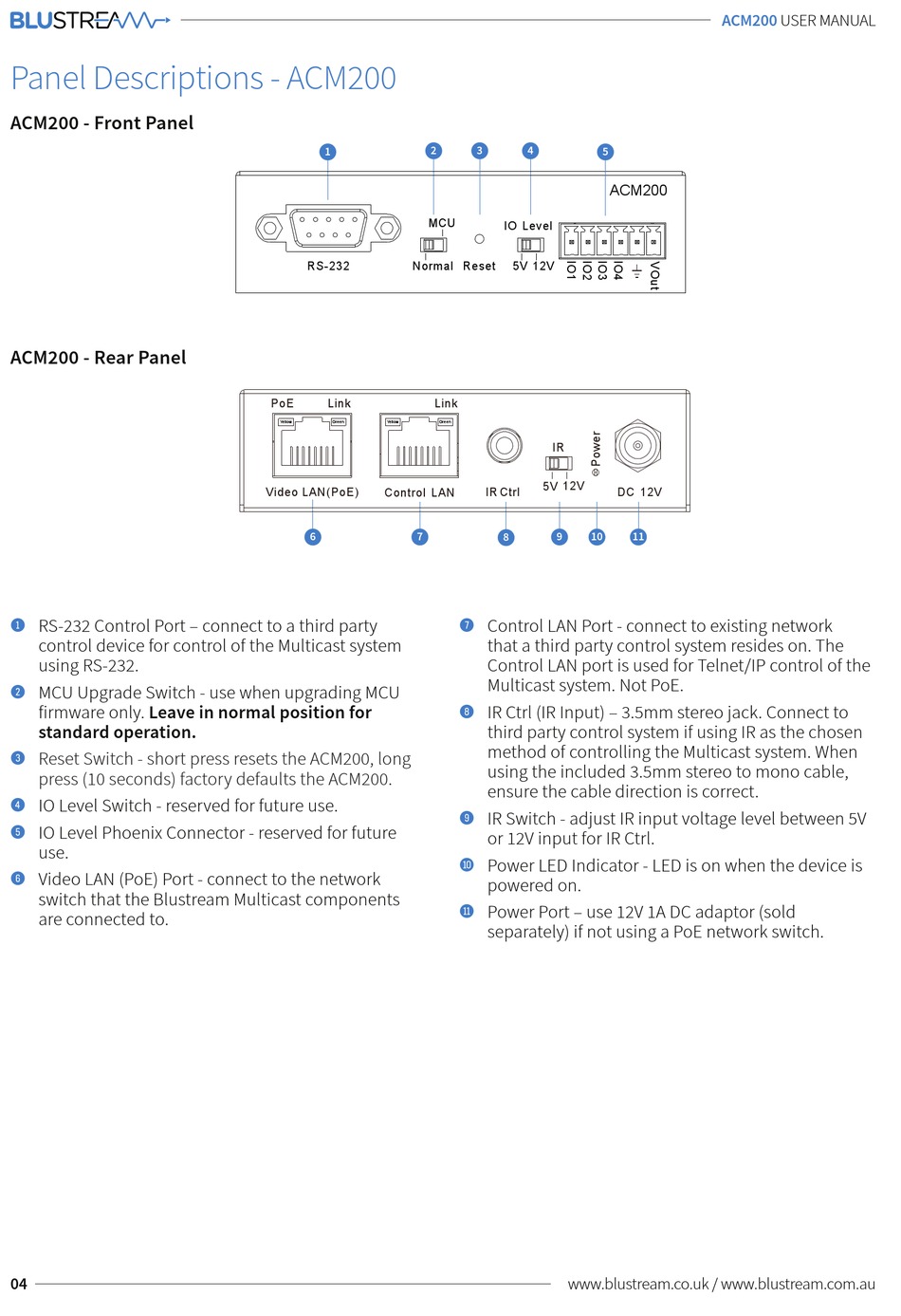

Panel Descriptions - ACM200

ACM200 - Front Panel
ACM200 - Rear Panel
RS-232 Control Port – connect to a third party
1
control device for control of the Multicast system
using RS-232.
MCU Upgrade Switch - use when upgrading MCU
2
firmware only. Leave in normal position for
standard operation.
Reset Switch - short press resets the ACM200, long
3
press (10 seconds) factory defaults the ACM200.
IO Level Switch - reserved for future use.
4
IO Level Phoenix Connector - reserved for future
5
use.
Video LAN (PoE) Port - connect to the network
6
switch that the Blustream Multicast components
are connected to.
04
2
1
MCU
MCU
RS-232 Normal
RS-232 Normal
PoE Link
PoE Link
Yellow Green Yellow
Yellow Green Yellow
Video LAN(PoE) Control LAN
Video LAN(PoE) Control LAN
6 7
3 4
IO Level
IO Level
Reset 5V 12V
Reset 5V 12V
Link
Link
Green
Green
IR
IR
5V 12V
IR Ctrl
5V 12V
IR Ctrl
8 9 10
Control LAN Port - connect to existing network
7
that a third party control system resides on. The
Control LAN port is used for Telnet/IP control of the
Multicast system. Not PoE.
IR Ctrl (IR Input) – 3.5mm stereo jack. Connect to
8
third party control system if using IR as the chosen
method of controlling the Multicast system. When
using the included 3.5mm stereo to mono cable,
ensure the cable direction is correct.
IR Switch - adjust IR input voltage level between 5V
9
or 12V input for IR Ctrl.
Power LED Indicator - LED is on when the device is
q
powered on.
Power Port – use 12V 1A DC adaptor (sold
w
separately) if not using a PoE network switch.
