12.2.2

Calling up remedial measures

X X X X X X X X X
20.50
X

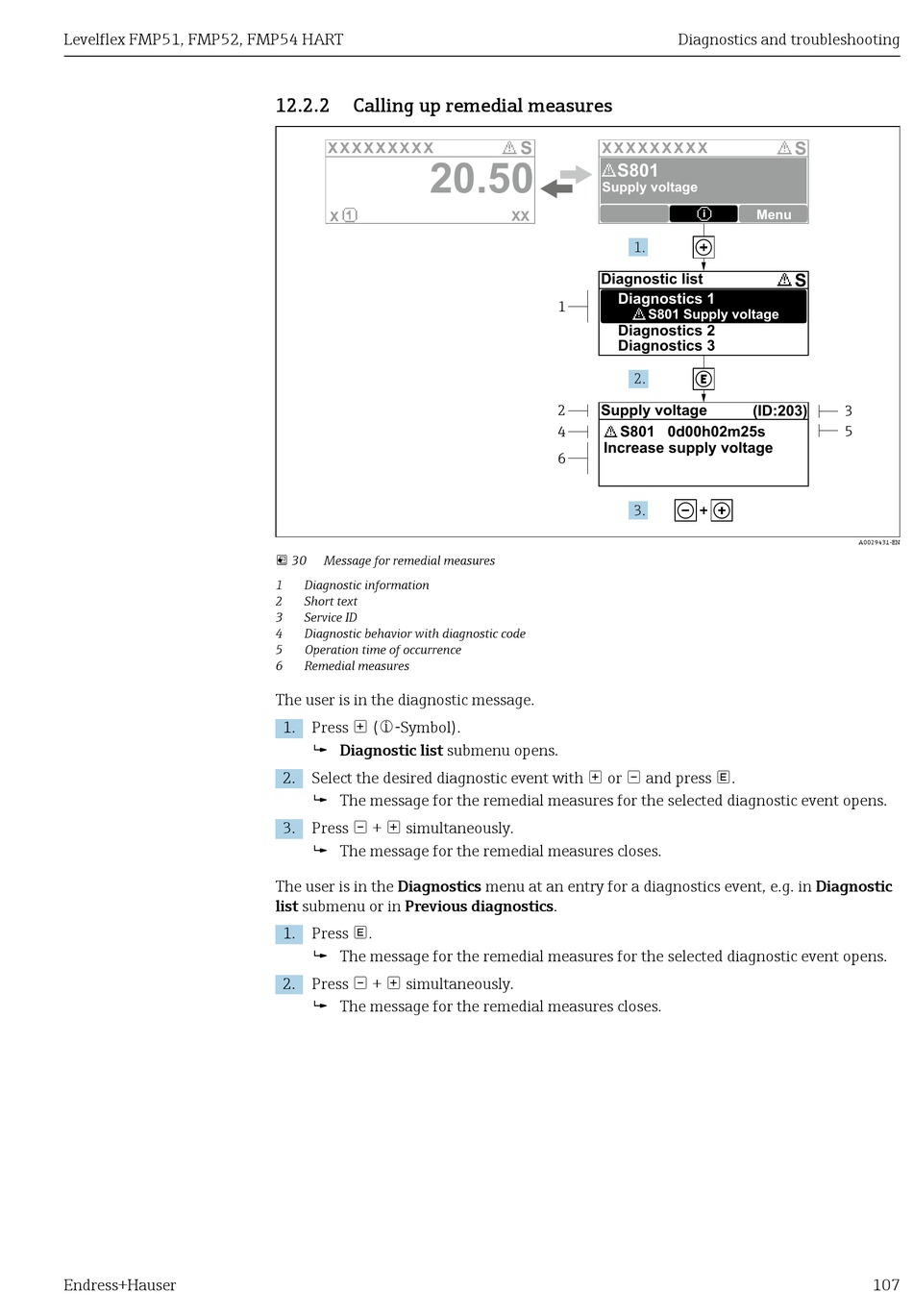

 30 Message for remedial measures
1 Diagnostic information
2 Short text
3 Service ID
4 Diagnostic behavior with diagnostic code
5 Operation time of occurrence
6 Remedial measures
The user is in the diagnostic message.
1. Press  (-Symbol).
 Diagnostic list submenu opens.
2. Select the desired diagnostic event with  or  and press .
 The message for the remedial measures for the selected diagnostic event opens.
3. Press  +  simultaneously.
 The message for the remedial measures closes.
The user is in the Diagnostics menu at an entry for a diagnostics event, e.g. in Diagnostic
list submenu or in Previous diagnostics.
1. Press .
 The message for the remedial measures for the selected diagnostic event opens.
2. Press  +  simultaneously.
 The message for the remedial measures closes.
Diagnostics and troubleshooting
S
X X X X X X X X
S801
Supply voltage
XX
1.
Diagnostic list
Diagnostics 1
1
S801 Supply voltage
Diagnostics 2
Diagnostics 3
2.
Supply voltage
2
S801 0d00h02m25s
4
Increase supply voltage
6
3.
S
X
Menu
i
S
(ID:203) 3
5
A0029431-EN
107
