Levelflex FMP51, FMP52, FMP54 HART
Endress+Hauser

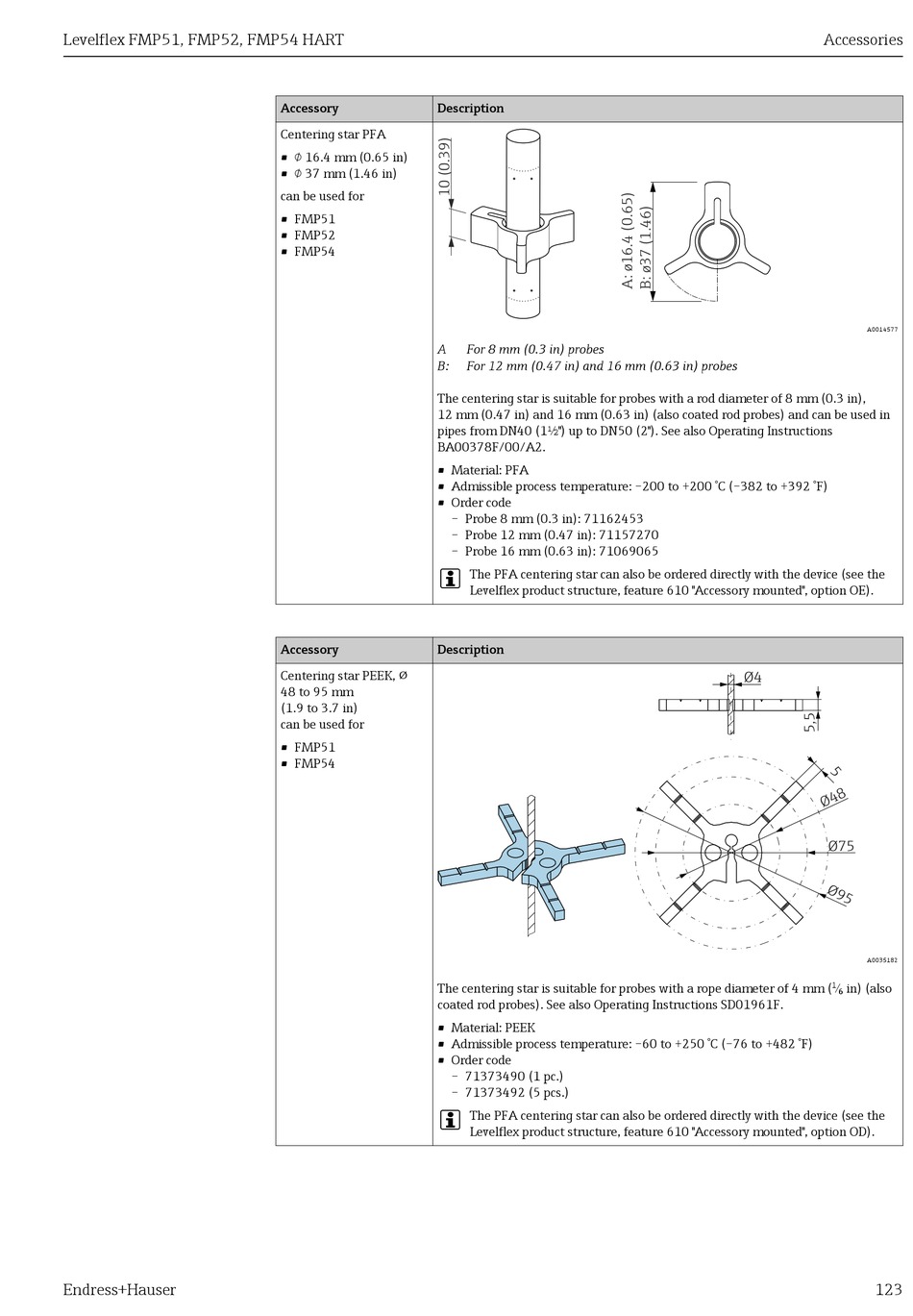

Accessory Description
Centering star PFA
•  16.4 mm (0.65 in)
•  37 mm (1.46 in)
can be used for
• FMP51
• FMP52
• FMP54
A
B:
The centering star is suitable for probes with a rod diameter of 8 mm (0.3 in),
12 mm (0.47 in) and 16 mm (0.63 in) (also coated rod probes) and can be used in
pipes from DN40 (1½") up to DN50 (2"). See also Operating Instructions
BA00378F/00/A2.
• Material: PFA
• Admissible process temperature: –200 to +200 °C (–382 to +392 °F)
• Order code
– Probe 8 mm (0.3 in): 71162453
– Probe 12 mm (0.47 in): 71157270
– Probe 16 mm (0.63 in): 71069065

Accessory Description
Centering star PEEK, ⌀
48 to 95 mm
(1.9 to 3.7 in)
can be used for
• FMP51
• FMP54
The centering star is suitable for probes with a rope diameter of 4 mm (¹⁄₆ in) (also
coated rod probes). See also Operating Instructions SD01961F.
• Material: PEEK
• Admissible process temperature: –60 to +250 °C (–76 to +482 °F)
• Order code
– 71373490 (1 pc.)
– 71373492 (5 pcs.)

For 8 mm (0.3 in) probes
For 12 mm (0.47 in) and 16 mm (0.63 in) probes
The PFA centering star can also be ordered directly with the device (see the
Levelflex product structure, feature 610 "Accessory mounted", option OE).
The PFA centering star can also be ordered directly with the device (see the
Levelflex product structure, feature 610 "Accessory mounted", option OD).
Accessories
A0014577
Ø4
A0035182
