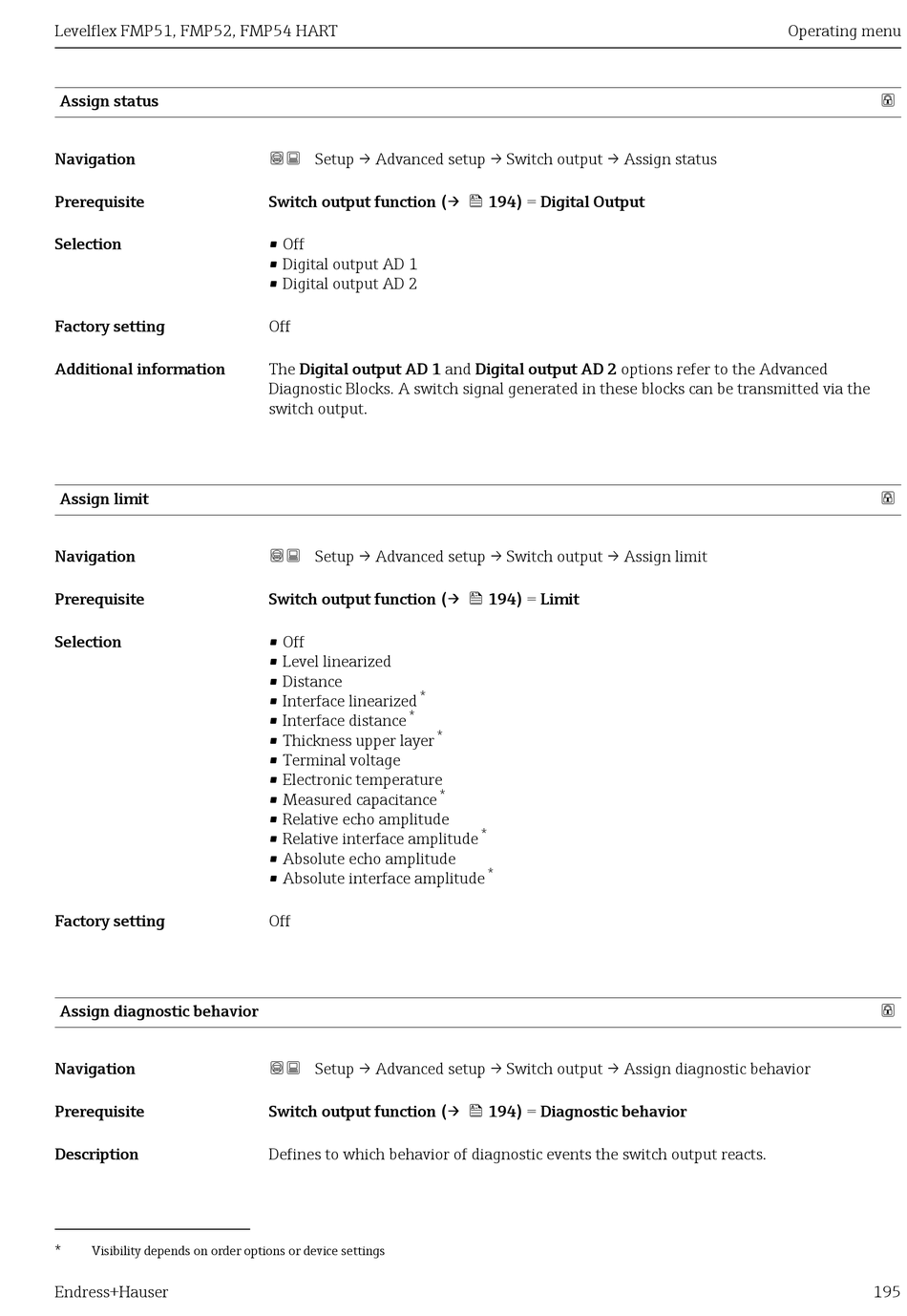

Levelflex FMP51, FMP52, FMP54 HART
Assign status
Navigation
Prerequisite
Selection
Factory setting
Additional information
Assign limit
Navigation
Prerequisite
Selection
Factory setting
Assign diagnostic behavior
Navigation
Prerequisite
Description
* Visibility depends on order options or device settings
Endress+Hauser
 Setup → Advanced setup → Switch output → Assign status
Switch output function (→  194) = Digital Output
• Off
• Digital output AD 1
• Digital output AD 2
Off
The Digital output AD 1 and Digital output AD 2 options refer to the Advanced
Diagnostic Blocks. A switch signal generated in these blocks can be transmitted via the
switch output.
 Setup → Advanced setup → Switch output → Assign limit
Switch output function (→  194) = Limit
• Off
• Level linearized
• Distance
*
• Interface linearized
*
• Interface distance
*
• Thickness upper layer
• Terminal voltage
• Electronic temperature
• Measured capacitance
• Relative echo amplitude
• Relative interface amplitude
• Absolute echo amplitude
• Absolute interface amplitude
Off
 Setup → Advanced setup → Switch output → Assign diagnostic behavior
Switch output function (→  194) = Diagnostic behavior
Defines to which behavior of diagnostic events the switch output reacts.
*
*
*
