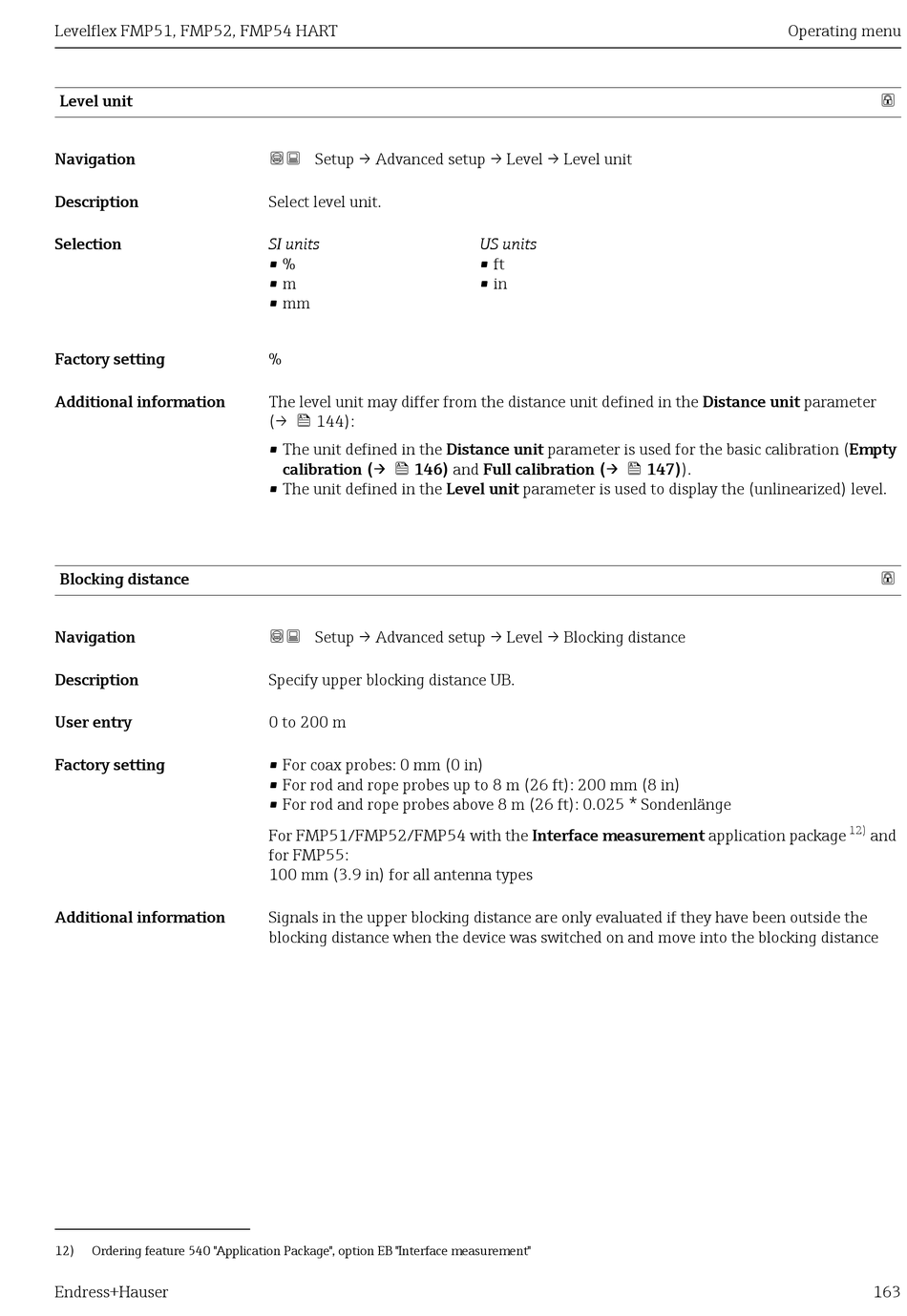

Endress+Hauser Levelflex FMP51 Operating Instructions Manual page 163

Levelflex FMP51, FMP52, FMP54 HART
Level unit
Navigation
Description
Selection
Factory setting
Additional information
Blocking distance
Navigation
Description
User entry
Factory setting
Additional information
12) Ordering feature 540 "Application Package", option EB "Interface measurement"
Endress+Hauser
 Setup → Advanced setup → Level → Level unit
Select level unit.
SI units
• %
• m
• mm
%
The level unit may differ from the distance unit defined in the Distance unit parameter
(→  144):
• The unit defined in the Distance unit parameter is used for the basic calibration (Empty
calibration (→  146) and Full calibration (→  147)).
• The unit defined in the Level unit parameter is used to display the (unlinearized) level.
 Setup → Advanced setup → Level → Blocking distance
Specify upper blocking distance UB.
0 to 200 m
• For coax probes: 0 mm (0 in)
• For rod and rope probes up to 8 m (26 ft): 200 mm (8 in)
• For rod and rope probes above 8 m (26 ft): 0.025 * Sondenlänge
For FMP51/FMP52/FMP54 with the Interface measurement application package
for FMP55:
100 mm (3.9 in) for all antenna types
Signals in the upper blocking distance are only evaluated if they have been outside the
blocking distance when the device was switched on and move into the blocking distance
US units
• ft
• in
Operating menu


12)
and
163
