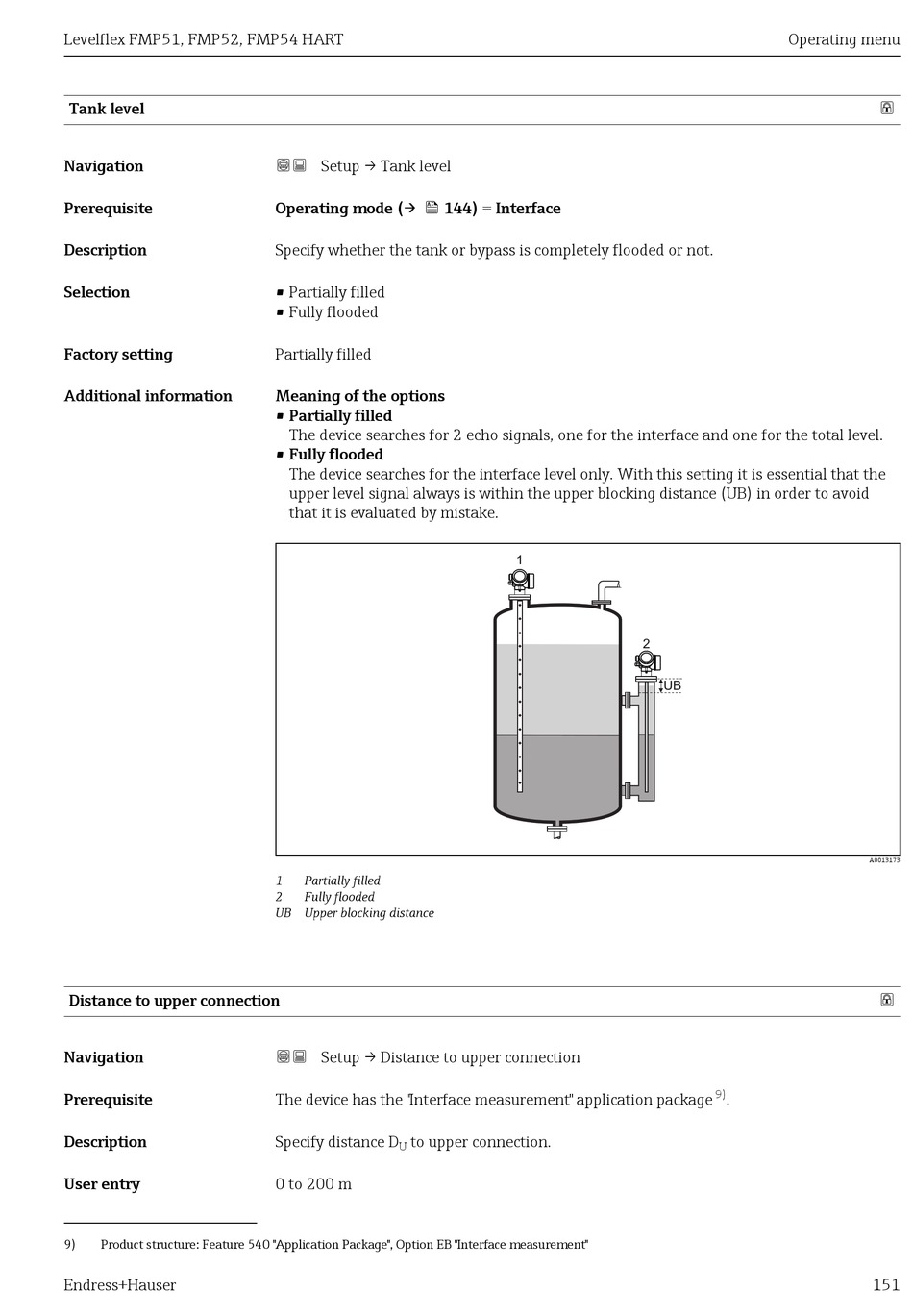

Endress+Hauser Levelflex FMP51 Operating Instructions Manual page 151

Levelflex FMP51, FMP52, FMP54 HART
Tank level
Navigation
Prerequisite
Description
Selection
Factory setting
Additional information
Distance to upper connection
Navigation
Prerequisite
Description
User entry
9) Product structure: Feature 540 "Application Package", Option EB "Interface measurement"
Endress+Hauser
 Setup → Tank level
Operating mode (→  144) = Interface
Specify whether the tank or bypass is completely flooded or not.
• Partially filled
• Fully flooded
Partially filled
Meaning of the options
• Partially filled
The device searches for 2 echo signals, one for the interface and one for the total level.
• Fully flooded
The device searches for the interface level only. With this setting it is essential that the
upper level signal always is within the upper blocking distance (UB) in order to avoid
that it is evaluated by mistake.
1 Partially filled
2 Fully flooded
UB Upper blocking distance
 Setup → Distance to upper connection
The device has the "Interface measurement" application package
Specify distance D to upper connection.
U
0 to 200 m
1
2
UB
