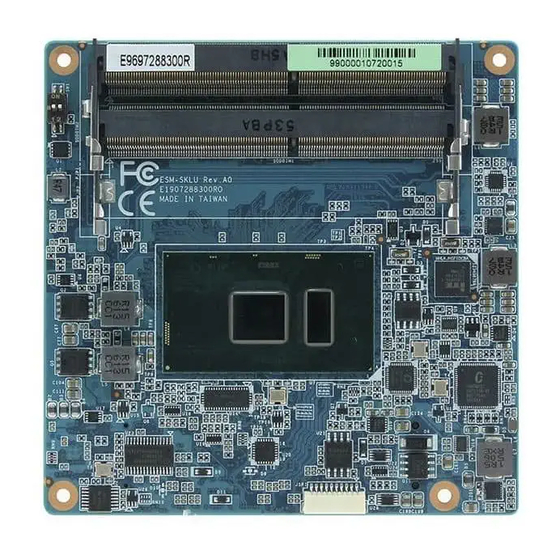

ESM-KBLU
7th Gen Intel® Core™ SoC ULT Processor i7/i5/i3 COMe
Type6 Compact Module
User's Manual
st
Ed – 19 March 2018
1
Copyright Notice
Copyright  2018 ALL RIGHTS RESERVED.
Part No. E2047289400R

Advertisement

Table of Contents
loading

Related Manuals for Avalue Technology ESM-KBLU

Summary of Contents for Avalue Technology ESM-KBLU

  • Page 1 ESM-KBLU 7th Gen Intel® Core™ SoC ULT Processor i7/i5/i3 COMe Type6 Compact Module User’s Manual Ed – 19 March 2018 Copyright Notice Copyright  2018 ALL RIGHTS RESERVED. Part No. E2047289400R...
  • Page 2 We assume no responsibility or liability for the use of the described product(s), conveys no license or title under any patent, copyright, or masks work rights to these products, and makes no representations or warranties that 2 ESM-KBLU User’s Manual...
  • Page 3 ESM-KBLU User’s Manual these products are free from patent, copyright, or mask work right infringement, unless otherwise specified. Applications that are described in this manual are for illustration purposes only. We make no representation or warranty that such application will be suitable for the specified use without further testing or modification.

  • Page 4: Table Of Contents

    2.4.2.1.12 USB Signals ........................27 2.4.2.1.13 I2C Signals ........................27 2.4.2.1.14 COM.0 Pins Signals ......................27 2.4.3 COM Express Connector 2 (CN1B) ....................28 2.4.3.1 Signal Description – COM Express Connector 2 (CN1B) ............32 2.4.3.1.1 USB3.0 Signals ........................32 4 ESM-KBLU User’s Manual...
  • Page 5 ESM-KBLU User’s Manual 2.4.3.1.2 DDI Signals .......................... 32 3.BIOS Setup ........................33 Introduction ......................34 Starting Setup ......................34 Using Setup ......................35 Getting Help ......................36 In Case of Problems ....................36 BIOS setup ......................37 3.6.1 Main Menu ............................37 3.6.1.1...
  • Page 6 Install Display Driver ....................87 Install LAN Driver (For Intel I219LM) ............... 89 Install ME Driver ...................... 91 Install Serial IO Driver ....................92 Install Audio Driver ....................94 Install IRST Driver ....................95 5. Mechanical Drawing ....................97 6 ESM-KBLU User’s Manual...

  • Page 7: Getting Started

    1.2 Packing List Before you begin installing your single board, please make sure that the following materials have been shipped: 1 x ESM-KBLU 7th Generation Intel® Core™ and Celeron® Processors  COMe Type6 Compact Module 1 x Driver/Utility DVD-ROM ...

  • Page 8: Document Amendment History

    ESM-KBLU User’s Manual 1.3 Document Amendment History Revision Date Comment March 2018 Initial Release 8 ESM-KBLU User’s Manual...

  • Page 9: Manual Objectives

    We strongly recommend that you study this manual carefully before attempting to set up ESM-KBLU series or change the standard configurations. Whilst all the necessary information is available in this manual we would recommend that unless you are confident, you contact your supplier for guidance.

  • Page 10: System Specifications

    3 x SATAIII, LPC, I²C,SPI, SMBus 8 x USB 2.0, 4 x USB 3.0 GPIO WDG/ I²C (SOC)/UART X2(2-wire) /HW monitor/FAN/ 8bit GPIO(NCT5655) Display Chipset Intel® Kaby Lake Processor integrated Graphics VGA Resolution Supports up to 1920 x1200@60Hz (Chrontel® 7517A) 10 ESM-KBLU User’s Manual...
  • Page 11 0% ~ 90% relative humidity, non-condensing Size (L x W) 95 mm x 95 mm Weight 0.44lbs(0.2kg) Windows® 10 Enterprise (64-bit) OS Support Linux (Kernel>4.7) (64-bit) WinCE: doesn’t support Note: Specifications are subject to change without notice. ESM-KBLU User’s Manual 11...

  • Page 12: Architecture Overview-Block Diagram

    ESM-KBLU User’s Manual 1.6 Architecture Overview—Block Diagram The following block diagram shows the architecture and main components of ESM-KBLU. 12 ESM-KBLU User’s Manual...

  • Page 13: Hardware Configuration

    ESM-KBLU User’s Manual 2. Hardware Configuration ESM-KBLU User’s Manual 13...

  • Page 14: Product Overview

    ESM-KBLU User’s Manual 2.1 Product Overview 14 ESM-KBLU User’s Manual...

  • Page 15: Installation Procedure

    6. Enter the BIOS setup by pressing the delete key during boot up. Use the "Save & Exit \ Restore Defaults" feature. 7. If TFT panel display is to be utilized, make sure the panel voltage is correctly set before connecting the display cable and turning on the power. ESM-KBLU User’s Manual 15...

  • Page 16: Main Memory

    ESM-KBLU User’s Manual 2.2.1 Main Memory ESM-KBLU provides two 260-pin SODIMM socket, supports up to 32GB DDR4 2133 SDRAM SODIMM Make sure to unplug the power supply before adding or removing DIMMs or other system components. Failure to do so may cause severe damage to board and components.
  • Page 17 (2) Static electricity can damage the electronic components of the computer or optional boards. Before proceeding, ensure that you are discharged of static electricity by briefly touching a grounded metal object. ESM-KBLU User’s Manual 17...

  • Page 18: Connector List

    (Reserved for BIOS programming) 5 x 2 header, pitch 2.00mm JSPI AT/ATX mode selector SODIMM1 260-pin DDR4 SDRAM DIMM socket SODIMM2 260-pin DDR4 SDRAM DIMM socket CN1A COM Express connector 1 COM Express connector 2 CN1B 18 ESM-KBLU User’s Manual...

  • Page 19: Setting Jumpers & Connectors

    ATX mode  *Default 2.4.1.1 Signal Description –AT/ATX mode selection AT/ATX mode Description AT mode Auto-power on, no need to press Power button to enable power on/off ATX mode Press the power button to enable power on/off ESM-KBLU User’s Manual 19...

  • Page 20: Com Express Connector 1 (Cn1A)

    SATA0_RX- A20 B20 SATA1_RX- A21 B21 SATA2_TX+ A22 B22 SATA2_TX- A23 B23 SUS_S5# A24 B24 PWR_OK SATA2_RX+ A25 B25 SATA2_RX- A26 B26 BATLOW# A27 B27 SATA_ACT# A28 B28 HDA_SYNC A29 B29 HDA_SDIN1 HDA_RST# A30 B30 HDA_SDIN0 20 ESM-KBLU User’s Manual...
  • Page 21 CB_RESET# A51 B51 PCIE_TX5+ A52 B52 PCIE_RX5+ PCIE_TX5- A53 B53 PCIE_RX5- GPI0 A54 B54 GPO1 PCIE_TX4+ A55 B55 PCIE_RX4+ PCIE_TX4- A56 B56 PCIE_RX4- GPO2 A57 B57 PCIE_TX3+ A58 B58 PCIE_RX3+ PCIE_TX3- A59 B59 PCIE_RX3- A60 B60 ESM-KBLU User’s Manual 21...
  • Page 22 A81 B81 LVDS_B_CK+ LVDS_A_CK-/EDP_TX3- LVDS_B_CK- A82 B82 LVDS_I2C_CK/EDP_AUX+ A83 B83 LVDS_BKLT_CTRL LVDS_I2C_DAT/EDP_AUX- A84 B84 +ATX5VSB GPI3 A85 B85 +ATX5VSB KBRST# A86 B86 +ATX5VSB EDP_HPD A87 B87 +ATX5VSB PCIE_CLK_REF+ A88 B88 BIOS_DIS1# PCIE_CLK_REF- A89 B89 VGA_RED A90 B90 22 ESM-KBLU User’s Manual...
  • Page 23 A101 B101 FAN_PWMOUT SER1_RX FAN_TACHIN A102 B102 LID# A103 B103 SLEEP# +VIN_9V_19V A104 B104 +VIN_9V_19V +VIN_9V_19V A105 B105 +VIN_9V_19V +VIN_9V_19V A106 B106 +VIN_9V_19V +VIN_9V_19V A107 B107 +VIN_9V_19V +VIN_9V_19V A108 B108 +VIN_9V_19V +VIN_9V_19V A109 B109 +VIN_9V_19V A110 B110 ESM-KBLU User’s Manual 23...

  • Page 24: Signal Description - Com Express Connector 1 (Cn1A)

    2.4.2.1.3 PCI Express Signals Signal Signal Description PCIE_TX[0:6] +/- PCI Express Differential Transmit Pair 0-6 PCIE_RX[0:6] +/- PCI Express Differential Receive Pair 0-6 Reference clock output for PCI Express lanes 0-6 and for PCI Express Graphics PCIE0_CK_REF+/- lanes 0-15 24 ESM-KBLU User’s Manual...

  • Page 25: Flat Panel Lvds Signals

    Module High Module SPI0/SPI1 BIOS_DIS1# Carrier Module Module High Module Module Carrier SPI0 Carrier SPI0/SPI1 Carrier Module SPI1 Module SPI0/SPI1 2.4.2.1.7 GPIO Signals Signal Signal Description GPI[0:4] General purpose input pins. GPO[0:4] General purpose output pins. ESM-KBLU User’s Manual 25...

  • Page 26: Power Signals

    Management Interrupt) or to wake the system. SUS_STAT# Indicates imminent suspend operation. PWR_OK Power OK from main power supply SYS_RESET# Reset button input. Active low input. WAKE0# PCI Express wake up signal. WAKE1# General purpose wake up signal. 26 ESM-KBLU User’s Manual...

  • Page 27: Sata Signals

    I2C0_CLK General purpose I2C port clock output. I2C0_DATA General purpose I2C port data I/O line. 2.4.2.1.14 COM.0 Pins Signals Signal Signal Description SER0/1_TX TTL level outputs from the Module. SER0/1_RX TTL level inputs from the Module. ESM-KBLU User’s Manual 27...

  • Page 28: Com Express Connector 2 (Cn1B)

    C19 D19 PCIE_TX6+ PCIE_RX6- C20 D20 PCIE_TX6- C21 D21 PCIE_RX7+ C22 D22 PCIE_TX7+ PCIE_RX7- C23 D23 PCIE_TX7- DDI1_HPD C24 D24 C25 D25 C26 D26 DDI1_PAIR0+ PEG_GEN3_RESTE# C27 D27 DDI1_PAIR0- C28 D28 C29 D29 DDI1_PAIR1+ C30 D30 DDI1_PAIR1- 28 ESM-KBLU User’s Manual...
  • Page 29 C46 D46 DDI2_PAIR2+ C47 D47 DDI2_PAIR2- C48 D48 C49 D49 DDI2_PAIR3+ C50 D50 DDI2_PAIR3- C51 D51 C52 D52 C53 D53 TYPE0# C54 D54 C55 D55 C56 D56 TYPE1# C57 D57 TYPE2# C58 D58 C59 D59 C60 D60 ESM-KBLU User’s Manual 29...
  • Page 30 C73 D73 C74 D74 C75 D75 C76 D76 C77 D77 C78 D78 C79 D79 C80 D80 C81 D81 C82 D82 C83 D83 C84 D84 C85 D85 C86 D86 C87 D87 C88 D88 C89 D89 C90 D90 30 ESM-KBLU User’s Manual...
  • Page 31 Signal Signal C100 D100 C101 D101 C102 D102 C103 D103 +VIN_9V_19V C104 D104 +VIN_9V_19V +VIN_9V_19V C105 D105 +VIN_9V_19V +VIN_9V_19V C106 D106 +VIN_9V_19V +VIN_9V_19V C107 D107 +VIN_9V_19V +VIN_9V_19V C108 D108 +VIN_9V_19V +VIN_9V_19V C109 D109 +VIN_9V_19V C110 D110 ESM-KBLU User’s Manual 31...

  • Page 32: Signal Description - Com Express Connector 2 (Cn1B)

    DP AUX+function if DDI[1:3]_DDC_AUX_SEL is no connect DDI[1:3]_CTRLCLK_AUX+ HDMI/DVI 12C CTRLCLK if DDI[1:3]_DDC_AUX_SEL is pulled high DP AUX-function if DDI[1:3]_DDC_AUX_SEL is no connect DDI[1:3]_CTRLDATA_AUX- HDMI/DVI 12C CTRLDATA if DDI[1:3]_DDC_AUX_SEL is pulled high DDI[1:3]_HPD Digital Display Interface Hot-Plug Detect 32 ESM-KBLU User’s Manual...

  • Page 33: Bios Setup

    ESM-KBLU User’s Manual 3.BIOS Setup ESM-KBLU User’s Manual 33...

  • Page 34: Introduction

    If the message disappears before you respond and you still wish to enter Setup, restart the system to try again by turning it OFF then ON or pressing the "RESET" button on the system case. You may also restart by simultaneously pressing <Ctrl>, <Alt>, and <Delete> keys. 34 ESM-KBLU User’s Manual...

  • Page 35: Using Setup

    Note: Some of the navigation keys differ from one screen to another.  To Display a Sub Menu Use the arrow keys to move the cursor to the sub menu you want. Then press <Enter>. A “” pointer marks all sub menus. ESM-KBLU User’s Manual 35...

  • Page 36: Getting Help

    Even a seemingly small change to the chipset setup has the potential for causing you to use the override. 36 ESM-KBLU User’s Manual...

  • Page 37: Bios Setup

    <Enter> to accept and enter the sub-menu. 3.6.1 Main Menu This section allows you to record some basic hardware configurations in your computer and set the system clock. ESM-KBLU User’s Manual 37...

  • Page 38: System Language

    Use the system date option to set the system date. Manually enter the day, month and year. 3.6.1.3 System Time Use the system time option to set the system time. Manually enter the hours, minutes and seconds. 38 ESM-KBLU User’s Manual...

  • Page 39: Advanced Menu

    3.6.2.1 CPU Configuration Use the CPU configuration menu to view detailed CPU specification and configure the CPU. Item Options Description Disabled[Default] Enable/Disable moving of DRAM contents to PRM C6DRAM Enabled memory when CPU is in C6 state. ESM-KBLU User’s Manual 39...

  • Page 40: Power & Performance

    Number of cores to enable in each processor Active Processor Cores package. Enabled for Windows XP and Linux (OS optimized Disabled, for Hyper- Threading Technology) and Disabled for Hyper-Threading Enabled[Default] other OS (OS not optimized for Hyper- Threading Technology). 3.6.2.2 Power & Performance 40 ESM-KBLU User’s Manual...

  • Page 41: Cpu - Power Management Control

    EMTTM enabled too). AUTO means enabled, unless Disabled max turbo ratio is bigger than 16 – SKL a0 W/A. Enabled[Default], Enable/Disable CPU Power Management. Allows CPU C States Disabled to go to C states when it’s not 100292171224tilized. 3.6.2.2.1.1 View/Configure Turbo Options ESM-KBLU User’s Manual 41...
  • Page 42 Enable/Disable Energy Efficient Turbo Feature. This feature will opportunistically lower the turbo Disabled, frequency to increase efficiency. Recommended Energy Efficient Turbo Enabled[Default] only to disable in overclocking situations where turbo frequency must remain constant. Otherwise, leave enabled. 42 ESM-KBLU User’s Manual...

  • Page 43: Gt - Power Management Control

    ESM-KBLU User’s Manual 3.6.2.2.2 GT – Power Management Control Item Option Description Enabled[Default], Check to enable render RC6(Render Standby) Disabled standby support. Default Max Frequency[Default] /100Mhz/150Mhz/200Mhz/250Mhz/300Mhz /350Mhz/400Mhz/450Mhz/500Mhz/550Mhz Maximum GT frequency Auto Updated. /600Mhz/650Mhz/700Mhz/750Mhz/800Mhz /850Mhz/900Mhz/950Mhz/1000Mhz/1050Mhz /1100Mhz/1150Mhz/1200Mhz 3.6.2.3 PCH-FW Configuration ESM-KBLU User’s Manual 43...

  • Page 44: Amt Configuration

    When Disabled ME will not be unconfigured on ME Unconfig on RTC Clear Enabled[Default] RTC Clear. 3.6.2.3.1 AMT Configuration Item Option Description Disabled, ASF support Enable/Disable Alert Standard Format support. Enabled[Default] Disabled[Default], USB Provisioning of AMT Enable/Disable of AMT USB Provisioning. Enabled 44 ESM-KBLU User’s Manual...
  • Page 45 ME Confirmation Enabled unconfiguration. Disabled[Default], OEMFlag Bit 14: Enable OEM debug menu in MEBx OED Debug Menu Enable Enabled MEBx. Disabled[Default], OEMFlag Bit 15: Unconfigure ME with resetting Unconfigure ME Enabled MEBx password to default. ESM-KBLU User’s Manual 45...
  • Page 46 3.6.2.3.1.2 MEBx Resolution Settings Item Description Auto[Default], Non-UI Mode Resolution 80x25 Resolution for non-UI text mode. 100x31 Auto[Default], UI Mode Resolution 80x25 Resolution for UI text mode. 100x31 Auto[Default], 640x480 Graphics Mode Resolution Resolution for graphics mode. 800x600 1024x768 46 ESM-KBLU User’s Manual...

  • Page 47: Firmware Update Configuration

    Selects TPM device: PTT or dTPM. PTT – Enables PTT in SkuMgr dTPM 1.2 – Disables dTPM[Default], TPM Device Selection PTT in SkuMgr Warning! PTT/dTPM will be disabled and all data saved on it will be lost. ESM-KBLU User’s Manual 47...

  • Page 48: Trusted Computing

    3.6.2.4 Trusted Computing Item Options Description Enables or Disables BIOS support for security device. Disable, Security Device Support O.S. will not show Security Device. TCG EFI protocol Enable[Default] and INT1A interface will not be available. 3.6.2.5 APCI Settings 48 ESM-KBLU User’s Manual...
  • Page 49 Disabled[Default], Wake Up By Ring System wake up by ring (from S3~S5). Enabled Disabled[Default], 30 sec 40 sec 50 sec Watch Dog Select Watch Dog Timer (WDT) Mode. 1 min 2 min 10 min 30 min ESM-KBLU User’s Manual 49...

  • Page 50: Nct6106D Super Io Configuration

    Please refer to 3.6.2.6.1~ 3.6.2.6.3 for more information. Item Description Serial Port 1 Configuration Set Parameters of Serial Port 1 (COMA). Serial Port 2 Configuration Set Parameters of Serial Port 2 (COMB). Parallel Port Configuration Set Parameters of Parallel Port (LPT/LPTE). 50 ESM-KBLU User’s Manual...

  • Page 51: Serial Port 1 Configuration

    3.6.2.6.1 Serial Port 1 Configuration Item Option Description Enabled[Default], Serial Port Enable or Disable Serial Port (COM). Disabled 3.6.2.6.2 Serial Port 2 Configuration Item Option Description Enabled[Default], Serial Port Enable or Disable Serial Port (COM). Disabled ESM-KBLU User’s Manual 51...

  • Page 52: Parallel Port Configuration

    Enable or Disable Parallel Port Parallel Port Disabled (LPT/LPTE). STD Printer Mode[Default] EPP-1.9 and SPP Mode EPP-1.7 and SPP Mode Device Mode Change the Printer Port mode. ECP Mode ECP and EPP 1.9 Mode ECP and EPP 1.7 Mode 52 ESM-KBLU User’s Manual...

  • Page 53: Nct6106D Hw Monitor

    ESM-KBLU User’s Manual 3.6.2.7 NCT6106D HW Monitor 3.6.2.8 IT8528SEC Super IO Configuration You can use this item to set up or change the IT8528SEC Super IO configuration for serial ports. Please refer to 3.6.2.8.1~ 3.6.2.8.2 for more information. ESM-KBLU User’s Manual 53...

  • Page 54: Ser0_Tx/Ser0_Rx (Jcn3) Configuration

    ESM-KBLU User’s Manual 3.6.2.8.1 SER0_TX/SER0_RX (JCN3) Configuration Item Option Description Enabled[Default], Serial Port Enable or Disable Serial Port (COM). Disabled 3.6.2.8.2 SER1_TX/SER1_RX (JCN3) Configuration 54 ESM-KBLU User’s Manual...

  • Page 55: H/W Monitor

    ESM-KBLU User’s Manual Item Option Description Enabled[Default], Serial Port Enable or Disable Serial Port (COM). Disabled 3.6.2.9 H/W Monitor Item Options Description Enabled, Smart Fan Function Enables or Disables Smart Fan. Disabled[Default] 3.6.2.10 S5 RTC Wake Settings ESM-KBLU User’s Manual 55...
  • Page 56 Wake up hour 0-23 3pm. Select 0-23 For example enter 3 for 3am and 15 for Wake up minute 0-23 3pm. Select 0-23 For example enter 3 for 3am and 15 for Wake up second 0-23 3pm. 56 ESM-KBLU User’s Manual...

  • Page 57: Serial Port Console Redirection

    Select Fixed Time, system will wake on the Wake system from S5 Fixed Time hr::min::sec specified. Select Dynamic Time, System Dynamic Time[Default] will wake on the current time + Increase minute(s). Wake up minute increase 1-5. 3.6.2.11 Serial Port Console Redirection ESM-KBLU User’s Manual 57...

  • Page 58: Legacy Console Redirection Settings

    Disabled[Default], Console Redirection Console Redirection Enable or Disable. Enabled 3.6.2.11.1 Legacy Console Redirection Settings Item Option Description Select a COM port to display redirection of Legacy Serial Redirection Port COM0[Default] Legacy OS and Legacy OPROM Messages. 58 ESM-KBLU User’s Manual...

  • Page 59: Smart Fan Mode Configuration

    Stop bits indicate the end of a serial data packet. 1[Default] (A start bit indicates the beginning). The standard Stop Bits setting is 1 stop bit. Communication with slow devices may require more than 1 stop bit. ESM-KBLU User’s Manual 59...

  • Page 60: Console Redirection Settings

    Legacy console redirection is disabled Redirection After BIOS Always Enable[Default] before booting to Legacy OS. Default value is POST BootLoader Always Enable which means Legacy console Redirection is enabled for Legacy OS. 3.6.2.11.3 Console Redirection Settings 60 ESM-KBLU User’s Manual...

  • Page 61: Intel Txt Configuration

    Hardware RTS/CTS the data flow. Once the buffers are empty, a ‘start’ signal can be sent to re-start the flow. Software Xon/Xoff Hardware flow control uses two wires to send start/stop signals. 3.6.2.12 Intel TXT Configuration ESM-KBLU User’s Manual 61...

  • Page 62: Network Stack Configuration

    ESM-KBLU User’s Manual 3.6.2.13 Network Stack Configuration Item Options Description Enabled Network Stack Enable/Disable UEFI Network Stack. Disabled[Default] Item Options Description Enabled[Default] Network Stack Enable/Disable UEFI Network Stack. Disabled 62 ESM-KBLU User’s Manual...

  • Page 63: Csm Configuration

    Wait time to press ESC key to abort the PXE boot. Number of times presence of media will be Media detect count checked. 3.6.2.14 CSM Configuration Item Options Description Enabled CSM Support Enable/Disable CSM Support. Disabled[Default] ESM-KBLU User’s Manual 63...
  • Page 64 Legacy[Default] Do not launch Controls the execution of UEFI and Legacy Video UEFI Video OpROM. Legacy[Default] Do not launch Determines OpROM execution policy for Other PCI devices UEFI devices other than Network, Storage, or Legacy[Default] Vide. 64 ESM-KBLU User’s Manual...

  • Page 65: Nvme Configuration

    3.6.2.16 USB Configuration The USB Configuration menu helps read USB information and configures USB settings. Item Options Description Enabled[Default] Enables Legacy USB support. AUTO option Legacy USB Support Disabled disables legacy support if no USB devices are ESM-KBLU User’s Manual 65...
  • Page 66 Mass storage device emulation type. ‘AUTO’ Auto[Default] Floppy enumerates devices according to their media Mass Storage Devices Forced FDD format. Optical drives are emulated as ‘CDROM’, drives with no media will be Hard Disk CD-ROM emulated according to a drive type. 66 ESM-KBLU User’s Manual...

  • Page 67: Chipset

    ESM-KBLU User’s Manual 3.6.3 Chipset 3.6.3.1 System Agent (SA) Configuration Item Option Description Enabled[Default] VT-d VT-d capability. Disabled ESM-KBLU User’s Manual 67...

  • Page 68: Graphics Configuration

    Select DVMT 5.0 Pre-Allocated (Fixed) Graphics DVMT Pre-Allocated Memory size used by the Internal Graphics Device. 32M/F7 256M[Default] Select DVMT 5.0 Total Graphics Memory size DVMT Total Gfx Mem 128M used by the Internal Graphics Device. 68 ESM-KBLU User’s Manual...
  • Page 69 Port-A. eDP Port-D:LFP Driven by Int-DisplayPort encoder from Port-D(through PCH). 1024x768 24/1[Default] 800x600 18/1 1024x768 18/1 Port1-EDP to LVDS (Chrotel 7511) Panel CH7511 EDID Panel Option 1366x768 18/1 EDID Option. 1024x600 18/1 1280x800 18/1 1920x1200 24/2 ESM-KBLU User’s Manual 69...

  • Page 70: Pch-Io Configuration

    Enable or disable integrated LAN to wake Wake on LAN Enable Enabled[Default] the system. Quiet Serial IRQ Mode Configure Serial IRQ Mode. Continuous[Default] LPC Bus[Default] Port 80h Redirection Control where the Port 80h cycles are sent. PCIE Bus 70 ESM-KBLU User’s Manual...

  • Page 71: Pci Express Configuration

    3.6.3.2.1.1 PCI Express Root Port1 Item Option Description Enabled[Default], PCI Express Root Port 1 Control the PCI Express Root Port. Disabled Unknown Identify the SATA Topology if it is Default or Topology ISATA or Flex or DirectConnect or M2. ESM-KBLU User’s Manual 71...
  • Page 72 Option Description Enabled[Default], PCI Express Root Port 2 Control the PCI Express Root Port. Disabled Unknown x1[Default], Identify the SATA Topology if it is Default or Topology ISATA or Flex or DirectConnect or M2. Sata Express 72 ESM-KBLU User’s Manual...
  • Page 73 Option Description Enabled[Default], PCI Express Root Port 3 Control the PCI Express Root Port. Disabled Unknown x1[Default], Identify the SATA Topology if it is Default or Topology ISATA or Flex or DirectConnect or M2. Sata Express ESM-KBLU User’s Manual 73...
  • Page 74 Identify the SATA Topology if it is Default or Topology ISATA or Flex or DirectConnect or M2. Sata Express Set the ASPM Level: Force L0s – Force all Auto, ASPM links to L0s State AUTO – BIOS auto L0sL1 74 ESM-KBLU User’s Manual...
  • Page 75 Topology ISATA or Flex or DirectConnect or M2. Sata Express Auto, Set the ASPM Level: Force L0s – Force all L0sL1 links to L0s State AUTO – BIOS auto ASPM configure DISABLE – Disables ASPM. Disabled[Default] ESM-KBLU User’s Manual 75...
  • Page 76 Sata Express Auto, Set the ASPM Level: Force L0s – Force all L0sL1 links to L0s State AUTO – BIOS auto ASPM configure DISABLE – Disables ASPM. Disabled[Default] Disabled[Default], L1 Substates PCI Express L1 Substates settings. L1.1 76 ESM-KBLU User’s Manual...

  • Page 77: Sata And Rst Configuration

    Identify the SATA port is connected to Solid SATA Device Type Solid State Drive State Drive or Hard Disk Drive. Unknown[Default] ISATA Identify the SATA Topology if it is Default or Topology Direct Connect ISATA or Flex or DirectConnect or M2. Flex ESM-KBLU User’s Manual 77...

  • Page 78: Usb Configuration

    SATA Device Type Solid State Drive State Drive or Hard Disk Drive. Unknown[Default] ISATA Identify the SATA Topology if it is Default or Topology Direct Connect ISATA or Flex or DirectConnect or M2. Flex 3.6.3.2.3 USB Configuration 78 ESM-KBLU User’s Manual...

  • Page 79: Hd Audio Configuration

    Description Control Detection of the HD-Audio device. Disable = HDA Disabled will be unconditionally disabled Enabled = HDA will be HD Audio Enabled unconditionally enabled Auto = HDA will be enabled if Auto[Default], present, disabled otherwise. ESM-KBLU User’s Manual 79...

  • Page 80: Security

    ESM-KBLU User’s Manual 3.6.4 Security  Administrator Password Set setup Administrator Password  User Password Set User Password 80 ESM-KBLU User’s Manual...

  • Page 81: Secure Boot

    Disabled[Default] Attempt Secure Boot User mode with enrolled Platform Key(PK) 2.CSM Enabled function is disabled. Secure Boot mode selector: Standard/Custom. In Standard Secure Boot Mode Custom mode Secure Boot Variables can be Custom[Default] configured without authentication. ESM-KBLU User’s Manual 81...

  • Page 82: Key Management

    ESM-KBLU User’s Manual 3.6.4.1.1 Key Management Item Option Description Disabled[Default] Allow to provision factory default Secure Provision Factory Defaults Enabled Boot keys when System is in Setup Mode. 3.6.5 Boot 82 ESM-KBLU User’s Manual...

  • Page 83: Save And Exit

    Any changes made to BIOS settings during this session of the BIOS setup program are discarded. The setup program then exits and reboots the controller. 3.6.6.3 Restore Defaults This option restores all BIOS settings to the factory default. This option is useful if the ESM-KBLU User’s Manual 83...

  • Page 84: Launch Efi Shell From Filesystem Device

    ESM-KBLU User’s Manual controller exhibits unpredictable behavior due to an incorrect or inappropriate BIOS setting. 3.6.6.4 Launch EFI Shell from filesystem device Attempts to Launch EFI Shell application (Shellx64.efi) from one of the available filesystem devices. 84 ESM-KBLU User’s Manual...

  • Page 85: Drivers Installation

    ESM-KBLU User’s Manual 4. Drivers Installation Note: Installation procedures and screen shots in this section are for your reference and may not be exactly the same as shown on your screen. ESM-KBLU User’s Manual 85...

  • Page 86: Install Chipset Driver

    Windows 10 operation system. If the warning message appears while the installation Step 3. Click Install. process, click Continue to go on. Step 4. Installing. Step1. Click Next. Step 5. Complete setup. Step 2. Click Accept. 86 ESM-KBLU User’s Manual...

  • Page 87: Install Display Driver

    Windows 10 operation system. Step 3. Click Next. Step 4. Click Next. Step 1. Click Next to continue installation. Step 2. Click Yes to accept license Step 5. Click Next. agreement. ESM-KBLU User’s Manual 87...
  • Page 88 ESM-KBLU User’s Manual Step 6. Click Finish to complete setup. 88 ESM-KBLU User’s Manual...

  • Page 89: Install Lan Driver (For Intel I219Lm)

    Windows 10 operation system. Step 3. Click Next. Step 1. Click Install Drivers and Software. Step 4. Click Next. Step 2. Click Next to complete setup. Step 5. Click Install. ESM-KBLU User’s Manual 89...
  • Page 90 ESM-KBLU User’s Manual Step 6. Click Next. Step 7. Click Finish to complete setup. 90 ESM-KBLU User’s Manual...

  • Page 91: Install Me Driver

    If the warning message Step 3. Click Next. appears while the installation process, click Continue to go on. Step1. Click Next to start installation. Step 4. Installing. Step 2. Click Next. Step 5. Click Finish to complete setup. ESM-KBLU User’s Manual 91...

  • Page 92: Install Serial Io Driver

    Note: The installation procedures and screen shots in this section are based on Windows 10 operation system. Step 3. Click Next. Step 1. Click Next to continue installation. Step 4. Click Next. Step 2. Click Next. Step 5. Installing. 92 ESM-KBLU User’s Manual...
  • Page 93 ESM-KBLU User’s Manual Step 6. Click Finish to complete setup. ESM-KBLU User’s Manual 93...

  • Page 94: Install Audio Driver

    /Driver_Audio/Realtek/ALC892/ESM-KBLU_Audio Note: The installation procedures and screen shots in this section are based on Windows 10 operation system. Step 3. Click Finish to complete setup. Step 1. Click Next to continue installation. Step 2. Installing. 94 ESM-KBLU User’s Manual...

  • Page 95: Install Irst Driver

    Note: The installation procedures and screen shots in this section are based on Windows 10 operation system. Step 3. Click Next. Step 1. Click Next to continue installation. Step 4. Click Next. Step 2. Click Next. Step 5. Click Next. ESM-KBLU User’s Manual 95...
  • Page 96 ESM-KBLU User’s Manual Step 6. Installing. Step 7. Click Finish to complete setup. 96 ESM-KBLU User’s Manual...

  • Page 97: Mechanical Drawing

    ESM-KBLU User’s Manual 5. Mechanical Drawing ESM-KBLU User’s Manual 97...
  • Page 98 ESM-KBLU User’s Manual Unit: mm 98 ESM-KBLU User’s Manual...
  • Page 99 ESM-KBLU User’s Manual Unit: mm ESM-KBLU User’s Manual 99...
