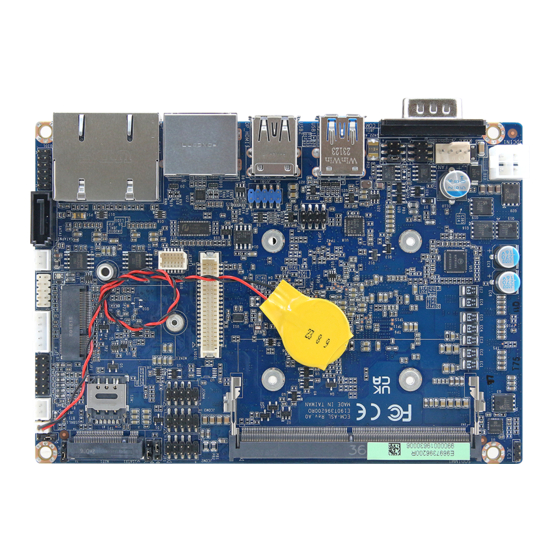

ECM-ASL
Intel® Processor N97, Intel® Core™ i3-N305 Processor &
Intel Atom® x7000RE series 3.5" Micro Module
User's Manual
Ed – 18 July 2024
nd
2
Copyright Notice
Copyright © 2024 Avalue Technology Inc., ALL RIGHTS RESERVED.
Part No: E2047396201R

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the ECM-ASL and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Avalue Technology ECM-ASL

Summary of Contents for Avalue Technology ECM-ASL

  • Page 1 ECM-ASL Intel® Processor N97, Intel® Core™ i3-N305 Processor & Intel Atom® x7000RE series 3.5” Micro Module User’s Manual Ed – 18 July 2024 Copyright Notice Copyright © 2024 Avalue Technology Inc., ALL RIGHTS RESERVED. Part No: E2047396201R...
  • Page 2 ECM-ASL User’s Manual Document Amendment History Revision Date Comment July 2024 Avalue Initial Release July 2024 Avalue Update 2.3.10 J422_485 2 ECM-ASL User’s Manual...
  • Page 3 For detailed information, please always refer to the electronic user's manual. Copyright Notice © 2024 by Avalue Technology Inc. All rights are reserved. No parts of this manual may be copied, modified, or reproduced in any form or by any means for commercial use without the prior written permission of Avalue Technology Inc.
  • Page 4 ㆍDescription of your software (operating system, version, application software, etc.) ㆍA complete description of the problem ㆍThe exact wording of any error messages To receive the latest version of the user’s manual; please visit our Web site at: www.avalue.com 4 ECM-ASL User’s Manual...
  • Page 5 On the other hand, if the new product defect is resulting from incorrect configuration or erroneous use by the user instead of any problem of the hardware itself, the customer will also be requested to pay for relevant handling fees. ECM-ASL User’s Manual...
  • Page 6 Lacking detailed statement of fault steps also makes the problem hard to be identified, sometimes resulting in second-time repairs. 6 ECM-ASL User’s Manual...
  • Page 7 • Product has been altered or its label of the serial number has been torn off. • Product functionality issues resulting from improper use by the user, unauthorized dismantle or alteration, unfit operation environment, improper maintenance, accident ECM-ASL User’s Manual...
  • Page 8 If the customer demands an additional maintenance analysis report, a service fee of various level will be charged depending on the warranty status. In case the analysis result shows that the defect attributes to Avalue’s faulty design or process, the analysis fee will be exempted. 8 ECM-ASL User’s Manual...
  • Page 9 9. Position the power cord so that people cannot step on it. Do not place anything over the power cord. 10. All cautions and warnings on the equipment should be noted. 11. If the equipment is not used for a long time, disconnect it from the power source to ECM-ASL User’s Manual...
  • Page 10 The equipment has obvious signs of breakage. 14. CAUTION: Danger of explosion if battery is incorrectly replaced. Replace only with the same or equivalent type recommended by the manufacturer. 15. Equipment intended only for use in a RESTRICTED ACCESS AREA. 10 ECM-ASL User’s Manual...
  • Page 11 A NOTE provides additional information intended to avoid Note inconveniences during operation. Direct current. Alternating current Stand-by, Power on FCC Certification CE Certification Follow the national requirements for disposal of equipment. Stacking layer limit This side up ECM-ASL User’s Manual 11...
  • Page 12 ECM-ASL User’s Manual Fragile Packaging Beware of water damage, moisture-proof Carton recyclable Handle with care Follow operating instructions of consult instructions for use. 12 ECM-ASL User’s Manual...
  • Page 13 EXPLOSION ou une fuite de liquide ou de gaz inflammable. - UNE BATTERIE soumise à une pression d'air extrêmement basse pouvant entraî ner une EXPLOSION ou une fuite de liquide ou de gaz inflammable. ECM-ASL User’s Manual 13...

  • Page 14: Table Of Contents

    Audio connector (JAUDIO1) ...................... 40 Signal Description – Audio connector (JAUDIO1) ..............40 2.3.22.1 2.3.23 EC connector (JEC1) ......................... 40 2.3.24 SIM card slot (JSIM1) ........................ 41 3. Drivers Installation....................... 42 Install Chipset Driver ....................43 14 ECM-ASL User’s Manual...
  • Page 15 S5 RTC Wake Settings ......................67 4.6.2.10 Serial Port Console Redirection .................... 68 4.6.2.11 USB Configuration ......................... 69 4.6.2.12 Network Stack Configuration ....................70 4.6.2.13 NVMe Configuration ......................70 4.6.3 Chipset............................71 4.6.3.1 System Agent (SA) Configuration ..................71 ECM-ASL User’s Manual 15...
  • Page 16 Save and Exit ..........................82 4.6.6.1 Save Changes and Reset ...................... 83 4.6.6.2 Discard Changes and Reset ....................83 4.6.6.3 Restore Defaults ........................83 4.6.6.4 Launch EFI Shell from filesystem device ................83 5. Mechanical Drawing ....................84 16 ECM-ASL User’s Manual...

  • Page 17: Getting Started

    Before installation, please ensure all the items listed in the following table are included in the package. Item Description Q’ty ECM-ASL 3.5” Micro Module Serial ATA cable (7-pin, standard) Wire SATA power cable (15-pin, 2P/2.0mm) Flat Cable 9P(M)-PHD (10P/2.0mm) CPU Heatsink M.2 Key M&E screws...

  • Page 18: Manual Objectives

    We strongly recommend that you study this manual carefully before attempting to set up ECM-ASL or change the standard configurations. Whilst all the necessary information is available in this manual, we would recommend that unless you are confident, you contact your supplier for guidance.

  • Page 19: System Specifications

    *Only supports one SIM card (co-lay 1 x 10pin FPC connector for uSIM card adapter) *1 x 1 x 3 pin, pitch 2.00mm connector for M.2 module card 3.3V and 3.8V selection (Jumper default: 1-2 for 3.3V) ECM-ASL User’s Manual 19...
  • Page 20 JEC1: 1 x 3 pin header, pitch 2.00mm Audio JAUDIO1: 2 x 6 pin header, pitch 2.00mm (For Line in, Line out, Mic in) DC-Input JDCIN1: 2 x 2 pin connector, pitch 4.20mm for power input. 20 ECM-ASL User’s Manual...
  • Page 21 ACPI Single power ATX Support S0, S3, S4, S5, ACPI 5.0 compliant Power Mode HW: AT (AT / ATX mode Switchable Through Jumper) Operating 0~60°C (32~140°F) with 0.5m/s air flow for Intel® Standard Temperature CPU SKU ECM-ASL User’s Manual 21...
  • Page 22 5. 30 minutes per each axis 6. IEC 60068-2-64 Test:Fh Random Vibration Non Operation Reference IEC60068-2-64 Testing procedures Test Fh : Vibration broadband random Test 1. PSD: 0.01818G²/Hz, 3.0 Grms 2. Non Operation mode 3. Test Frequency : 5-500Hz 22 ECM-ASL User’s Manual...
  • Page 23 Reference ISTA 2A, Method : IEC-60068-2-32 Test: Ed Drop Test Drop Test 1 One corner , three edges, six faces 2 ISTA 2A, IEC-60068-2-32 Test:Ed OS Information Windows 11 LTSC, 64bit, Linux Note: Specifications are subject to change without notice. ECM-ASL User’s Manual 23...

  • Page 24: Architecture Overview-Block Diagram

    ECM-ASL User’s Manual 1.5 Architecture Overview—Block Diagram The following block diagram shows the architecture and main components of ECM-ASL. 24 ECM-ASL User’s Manual...

  • Page 25: Hardware Configuration

    User’s Manual 2. Hardware Configuration ECM-ASL User’s Manual 25...

  • Page 26: Product Overview

    ECM-ASL User’s Manual 2.1 Product Overview 26 ECM-ASL User’s Manual...

  • Page 27: Jumper And Connector List

    3 x 1 header, pitch 2.00mm adjustment Connectors Label Function Note 5 x 1 wafer, pitch 2.00mm JBKL1 LCD inverter backlight connector Matching Connector: JST PHR-5 JFAN1 CPU fan connector 4 x 1 wafer, pitch 2.54mm ECM-ASL User’s Manual 27...
  • Page 28 SODIMM1 DDR5 SODIMM socket SIM1 SIM card slot JBAT1 Battery connector 2 x 1 wafer, pitch 1.25mm JAUDIO1 Audio connector 6 x 2 header, pitch 2.00mm JSIM1 SIM card slot 10 x 1 FPC, pitch 0.50mm 28 ECM-ASL User’s Manual...

  • Page 29: Setting Jumpers & Connectors

    User’s Manual 2.3 Setting Jumpers & Connectors 2.3.1 AT/ATX Input power select (JSATX1) * Default 2.3.2 Clear CMOS (JRTC1) Normal* Clear CMOS * Default ECM-ASL User’s Manual 29...

  • Page 30: Key Power Select (Jp1)

    ECM-ASL User’s Manual 2.3.3 M.2 Key power select (JP1) +3.3V* +3.8V * Default 2.3.4 Serial port 1 pin9 signal select (JRI1) Ring* +12V * Default 30 ECM-ASL User’s Manual...

  • Page 31: Lcd Backlight Brightness Adjustment (Jsbkl1)

    User’s Manual 2.3.5 LCD backlight brightness adjustment (JSBKL1) PWM Mode* DC Mode * Default 2.3.6 CPU fan connector (JFAN1) Signal +12V CFAN_IN_TACH CFAN_OUT_PWM ECM-ASL User’s Manual 31...

  • Page 32: Spi Connector (Jspi1)

    ECM-ASL User’s Manual 2.3.7 SPI connector (JSPI1) Signal PIN PIN Signal +3.3VSB ROM_CS# ROM_SPI_CLK ROM_SPI_MISO ROM_SPI_MOSI HOLD# SPI_WP# 2.3.8 ESPI connector (JESPI1) Signal PIN PIN Signal ESPI_IO0_CN +3.3VSB ESPI_IO1_CN PLT_BUF_RST# ESPI_IO2_CN ESPI_CS#0 ESPI_IO3_CN ESPI_CLK_CN ESPI_CS1# ESPI_RST# ESPI_ALERT#1 32 ECM-ASL User’s Manual...

  • Page 33: Edp/Lvds Connector (Jlvds1)

    User’s Manual 2.3.9 eDP/LVDS connector (JLVDS1) Signal PIN PIN Signal +3.3V +3.3V +3.3V LVDS_DATAP1/eDPP1 10 LVDS_DATAP0/eDP_HPD LVDS_DATAN1/eDPN1 11 LVDS_DATAN0 LVDS_DATAP3 LVDS_DATAP2/eDPP0 LVDS_DATAN3 LVDS_DATAN2/eDPN0 LVDS_DATAP5 LVDS_DATAP4 LVDS_DATAN5 LVDS_DATAN4 LVDS_DATAP7 LVDS_DATAP6 LVDS_DATAN7 LVDS_DATAN6 LVDS_CLK2P LVDS_CLK1P/eDPAUXP LVDS_CLK2N LVDS_CLK1N/eDPAUXN +12V +12V ECM-ASL User’s Manual 33...

  • Page 34: Serial Port 1 In Rs-422/485 Mode (J422_485)

    Serial port 1 in RS-422/485 mode (J422_485) RS-422 Signal PIN PIN Signal RS-485 Signal PIN PIN Signal DATA + DATA - 2.3.11 Serial port 2 connector (JCOM2) Signal PIN PIN Signal COM_RI#_2 COM_CTS#_2 COM_RTS#_2 COM_DSR#_2 COM_DTR#_2 COM_TXD_2 COM_RXD_2 COM_DCD#_2 34 ECM-ASL User’s Manual...

  • Page 35: Serial Port 3 Connector (Jcom3)

    2.3.12 Serial port 3 connector (JCOM3) Signal PIN PIN Signal COM_RI#_3 COM_CTS#_3 COM_RTS#_3 COM_DSR#_3 COM_DTR#_3 COM_TXD_3 COM_RXD_3 COM_DCD#_3 2.3.13 Serial port 4 connector (JCOM4) Signal PIN PIN Signal COM_RI#_4 COM_CTS#_4 COM_RTS#_4 COM_DSR#_4 COM_DTR#_4 COM_TXD_4 COM_RXD_4 COM_DCD#_4 ECM-ASL User’s Manual 35...

  • Page 36: General Purpose I/O Connector (Jdio1)

    ECM-ASL User’s Manual 2.3.14 General purpose I/O connector (JDIO1) Signal PIN PIN Signal DIO_GP20 DIO_GP10 DIO_GP21 DIO_GP11 DIO_GP22 DIO_GP12 DIO_GP23 DIO_GP13 SMB_SCL_DIO SMB_SDA_DIO 2.3.15 LCD inverter backlight connector (JBKL1) Signal +12V LVDS_BKLT_EN LVDS_BKLADJ 36 ECM-ASL User’s Manual...

  • Page 37: Usb2.0 Connector (Jusb1)

    User’s Manual 2.3.16 USB2.0 connector (JUSB1) Signal PIN PIN Signal +5VSB +5VSB USB2_R_DN7 USB2_R_DN8 USB2_R_DP7 USB2_R_DP8 2.3.17 PC Buzzer connector (JBZ1) Signal +3.3V SPKR- ECM-ASL User’s Manual 37...

  • Page 38: Battery Connector (Jbat1)

    ECM-ASL User’s Manual 2.3.18 Battery connector (JBAT1) Signal +RTCBATT 2.3.19 Front Panel connector 1 (JFP1) Signal PIN PIN Signal HDD_LED+ PWR_LED+ HDD_LED- PWR_LED- EXT_SYSRST# EXT_PWRBTN# 38 ECM-ASL User’s Manual...

  • Page 39: Sata Power Connector (Jsatapw1)

    User’s Manual 2.3.20 SATA Power connector (JSATAPW1) Signal 2.3.21 Power connector (JDCIN1) Signal Signal +VIN_9-36V +VIN_9-36V ECM-ASL User’s Manual 39...

  • Page 40: Audio Connector (Jaudio1)

    LINE1-JD MIC1_JD GND_AUD 2.3.22.1 Signal Description – Audio connector (JAUDIO1) Signal Signal Description LINE1-JD AUDIO IN (LINE_RIN/LIN)sense pin LINEOUT1_JD AUDIO Out(ROUT/LOUT) sense pin MIC1_JD MIC IN (MIC_RIN/LIN) sense pin 2.3.23 EC connector (JEC1) Signal EC_SMDAT_DBG EC_SMCLK_DBG 40 ECM-ASL User’s Manual...

  • Page 41: Sim Card Slot (Jsim1)

    User’s Manual 2.3.24 SIM card slot (JSIM1) Signal SIM_CD_R UIM_DATA_R UIM_CLK_R UIM_RESET#_R +VCC_SIM ECM-ASL User’s Manual 41...

  • Page 42: Drivers Installation

    Enter to find all the relevant software, utilities, and documentation. Note: Installation procedures and screen shots in this section are for your reference and may not be exactly the same as shown on your screen. 42 ECM-ASL User’s Manual...

  • Page 43: Install Chipset Driver

    If the warning message appears while the installation process, click Continue to go on. Step 3. Click Install. Step1. Click Next. Step 4. Installing. Step 2. Click Accept. Step 5. Click Finish to complete setup. ECM-ASL User’s Manual 43...

  • Page 44: Install Vga Driver

    Windows 10 operation system. Step 3. Click Repair. Step 1. Click Begin installation. Step 4. Installing. Step 2. Click I agree. Step 5. Click Finish to complete setup. 44 ECM-ASL User’s Manual...

  • Page 45: Install Me Driver

    Windows 10 operation system. Step 3. Click Next. Step 1. Click Next to continue installation. Step 4. Click Next. Step 2. Click Next. Step 5. Click Finish to complete setup. ECM-ASL User’s Manual 45...

  • Page 46: Install Audio Driver

    Windows 10 operation system. Step 3. Click Browse my computer for drivers. Step 1. Click High Definition Audio Step 4. Click Next. Controller. Step 2. Click Update driver. Step 5. Click OK. 46 ECM-ASL User’s Manual...
  • Page 47 User’s Manual Step 6. Installing. Step 9. Installing. Step 7. Click Close. Step 10. Click Finish to complete setup. Step 8. Install Realtek Audio Driver. ECM-ASL User’s Manual 47...

  • Page 48: Install Serial Io Driver

    Windows 10 operation system. Step 3. Click Next. Step 1. Click Next to continue installation. Step 4. Click Next. Step 2. Click Next. Step 5. Click Finish to complete setup. 48 ECM-ASL User’s Manual...
  • Page 49 User’s Manual Step 6. Click Finish to complete setup. ECM-ASL User’s Manual 49...

  • Page 50: Install Ethernet Driver

    Note: The installation procedures and screen shots in this section are based on Windows 10 operation system. Step 3. Click Next. Step 1. Click Install Drivers and Software. Step 4. Click Next. Step 5. Click Install. Step 2. Click Next. 50 ECM-ASL User’s Manual...
  • Page 51 User’s Manual Step 6. Installing. Step 7. Click Finish to complete setup. ECM-ASL User’s Manual 51...

  • Page 52: Bios Setup

    ECM-ASL User’s Manual 4.BIOS Setup 52 ECM-ASL User’s Manual...

  • Page 53: Introduction

    If the message disappears before you respond and you still wish to enter Setup, restart the system to try again by turning it OFF then ON or pressing the "RESET" button on the system case. You may also restart by simultaneously pressing <Ctrl>, <Alt>, and <Delete> keys. ECM-ASL User’s Manual 53...

  • Page 54: Using Setup

    Note: Some of the navigation keys differ from one screen to another. • To Display a Sub Menu Use the arrow keys to move the cursor to the sub menu you want. Then press <Enter>. A “➢” pointer marks all sub menus. 54 ECM-ASL User’s Manual...

  • Page 55: Getting Help

    BIOS Vendor and your systems manufacturer to provide the absolute maximum performance and reliability. Even a seemingly small change to the chipset setup has the potential for causing you to use the override. ECM-ASL User’s Manual 55...

  • Page 56: Bios Setup

    <Enter> to accept and enter the sub-menu. 4.6.1 Main Menu This section allows you to record some basic hardware configurations in your computer and set the system clock. 56 ECM-ASL User’s Manual...

  • Page 57: System Language

    Visit the Avalue website (www.avalue.com) to download the latest product and BIOS information. 4.6.2 Advanced Menu This section allows you to configure your CPU and other system devices for basic operation through the following sub-menus. ECM-ASL User’s Manual 57...

  • Page 58: Connectivity Configuration

    Auto Detection[Default] [Disable Integrated] disables Integrated Solution. NOTE: When CNVi is present, the GPIO pins that are used for radio. 4.6.2.2 CPU Configuration Use the CPU configuration menu to view detailed CPU specification and configure the CPU. 58 ECM-ASL User’s Manual...

  • Page 59: Efficient-Core Information

    Number of E-cores to enable in each processor All[Default] package. Note: Number of Cores and E-cores are Active Efficient-cores looked at together. When both are {0,0}, Pcode will enable all cores. 4.6.2.2.1 Efficient-core Information 4.6.2.3 Power & Performance ECM-ASL User’s Manual 59...

  • Page 60: Cpu - Power Management Control

    P-states. Enabled[Default], Enable/Disable processor Turbo Mode (requires Turbo Mode Disabled EMTTM enabled too). AUTO means enabled. Enabled[Default], Enable/Disable CPU Power Management. Allows CPU C States Disabled to go to C states when it's not 100% utilized. 60 ECM-ASL User’s Manual...

  • Page 61: Pch-Fw Configuration

    User’s Manual 4.6.2.3.1.1 View/Configure Turbo Options 4.6.2.4 PCH-FW Configuration ECM-ASL User’s Manual 61...

  • Page 62: Firmware Update Configuration

    ECM-ASL User’s Manual 4.6.2.4.1 Firmware Update Configuration Item Option Description Disabled[Default], ME FW Image Re-Flash Enable/Disable Me FW Image Re-Flash function. Enabled 4.6.2.4.2 PTT Configuration 62 ECM-ASL User’s Manual...

  • Page 63: Trusted Computing

    Enable[Default] and INT1A interface will not be available. 4.6.2.6 APCI Settings Item Options Description Enables or Disables System ability to Disabled Hibernate (OS/S4 Sleep State). This Enable Hibernation Enabled[Default], option may not be effective with some ECM-ASL User’s Manual 63...

  • Page 64: It5782 Super Io Configuration

    Set Parameters of Serial Port 1 (COMA). Serial Port 2 Configuration Set Parameters of Serial Port 2 (COMB). Serial Port 3 Configuration Set Parameters of Serial Port 3 (COMC). Serial Port 4 Configuration Set Parameters of Serial Port 4 (COMD). 64 ECM-ASL User’s Manual...

  • Page 65: Serial Port 1 Configuration

    4.6.2.7.1 Serial Port 1 Configuration Item Option Description Enabled[Default], Serial Port Enable or Disable Serial Port (COM). Disabled UART 232[Default] UART 232 422 485 UART 422 Change the Serial Port as RS232/422/485. UART 485 4.6.2.7.2 Serial Port 2 Configuration ECM-ASL User’s Manual 65...

  • Page 66: Serial Port 3 Configuration

    Item Option Description Enabled[Default], Serial Port Enable or Disable Serial Port (COM). Disabled 4.6.2.7.3 Serial Port 3 Configuration Item Option Description Enabled[Default], Serial Port Enable or Disable Serial Port (COM). Disabled 4.6.2.7.4 Serial Port 4 Configuration 66 ECM-ASL User’s Manual...

  • Page 67: Ec 5782 Hw Monitor

    Item Option Description Enabled[Default], Serial Port Enable or Disable Serial Port (COM). Disabled 4.6.2.8 EC 5782 HW Monitor Item Options Description Enabled, Smart Fan Function Enables or Disables Smart Fan. Disabled[Default] 4.6.2.9 S5 RTC Wake Settings ECM-ASL User’s Manual 67...

  • Page 68: Serial Port Console Redirection

    Select Dynamic Time, System will wake on the current time Dynamic Time + Increase minute(s). 4.6.2.10 Serial Port Console Redirection Item Options Description Disabled[Default], Console Redirection Console Redirection Enable or Disable. Enabled Disabled[Default], Console Redirection EMS Console Redirection Enable or Disable. Enabled 68 ECM-ASL User’s Manual...

  • Page 69: Usb Configuration

    Mass storage device emulation type. ‘AUTO’ Auto[Default] Floppy enumerates devices according to their media Mass Storage Devices Forced FDD format. Optical drives are emulated as ‘CDROM’, drives with no media will be Hard Disk CD-ROM emulated according to a drive type. ECM-ASL User’s Manual 69...

  • Page 70: Network Stack Configuration

    ECM-ASL User’s Manual 4.6.2.12 Network Stack Configuration Item Options Description Enabled Network Stack Enable/Disable UEFI Network Stack. Disabled[Default] 4.6.2.13 NVMe Configuration 70 ECM-ASL User’s Manual...

  • Page 71: Chipset

    User’s Manual 4.6.3 Chipset 4.6.3.1 System Agent (SA) Configuration Item Option Description Enabled VT-d VT-d capability. Disabled[Default] ECM-ASL User’s Manual 71...

  • Page 72: Memory Configuration

    Select the GTT Size. 8MB[Default] 128MB Select the Aperture Size. Note: Above 4GB 256MB[Default] MMIO BIOS assignment is automatically enabled Aperture Size 512MB when selecting > 2048MB aperture. To use this 1024MB feature, please disable CSM Support. 72 ECM-ASL User’s Manual...

  • Page 73: Pch-Io Configuration

    User’s Manual 4.6.3.2 PCH-IO Configuration 4.6.3.2.1 PCI Express Configuration ECM-ASL User’s Manual 73...
  • Page 74 L0s State AUTO – BIOS auto ASPM configure DISABLE – Disables ASPM. Auto Disabled[Default] L1 Substates L1.1 PCI Express L1 Substates settings. L1.1 & L1.2 Disabled[Default], Enable/Disable Precision Time Enabled Measurement. Auto[Default] Gen1 PCIe Speed Configure PCIe Speed. Gen2 Gen3 74 ECM-ASL User’s Manual...
  • Page 75 L0s State AUTO – BIOS auto ASPM configure DISABLE – Disables ASPM. Auto Disabled[Default] L1 Substates L1.1 PCI Express L1 Substates settings. L1.1 & L1.2 Disabled[Default], Enable/Disable Precision Time Enabled Measurement. Auto[Default] Gen1 PCIe Speed Configure PCIe Speed. Gen2 Gen3 ECM-ASL User’s Manual 75...
  • Page 76 L0s State AUTO – BIOS auto ASPM configure DISABLE – Disables ASPM. Auto Disabled[Default] L1 Substates L1.1 PCI Express L1 Substates settings. L1.1 & L1.2 Disabled[Default], Enable/Disable Precision Time Enabled Measurement. Auto[Default] Gen1 PCIe Speed Configure PCIe Speed. Gen2 Gen3 76 ECM-ASL User’s Manual...
  • Page 77 L0s State AUTO – BIOS auto ASPM configure DISABLE – Disables ASPM. Auto Disabled[Default] L1 Substates L1.1 PCI Express L1 Substates settings. L1.1 & L1.2 Disabled[Default], Enable/Disable Precision Time Enabled Measurement. Auto[Default] Gen1 PCIe Speed Configure PCIe Speed. Gen2 Gen3 ECM-ASL User’s Manual 77...

  • Page 78: Sata Configuration

    ECM-ASL User’s Manual 4.6.3.2.2 SATA Configuration Item Options Description Enabled[Default] SATA Controller(s) Enable/Disable SATA Device. Disabled, Enabled[Default] Port 0 Enable or Disable SATA Port. Disabled 4.6.3.2.3 HD Audio Configuration 78 ECM-ASL User’s Manual...

  • Page 79: Board & Panel Configuration

    7513-eDP Panel Brightness Control BIOS[Default] Panel Brightness Control Method. 1.BIOS Method OS Driver 2.OS Driver. Panel Brightness Select Panel back light PWM duty. 100%[Default] Panel Back Light PWM 200[Default] Select Panel back light PWM Frequency. Frequency ECM-ASL User’s Manual 79...
  • Page 80 2 min 10 min 30 min Disabled Enable/Disabled USB Standby Power USB Standby Power Enabled[Default] during S3/S4/S5. Low[Default] Set M.2 KeyB Pin38(DEVSLP) as M.2 Key-B P38 Setting High Low/High. Disabled[Default] SHOW DMI INFO SHOW DMI INFO. Enabled 80 ECM-ASL User’s Manual...

  • Page 81: Security

    User’s Manual 4.6.4 Security ⚫ Administrator Password Set setup Administrator Password ⚫ User Password Set User Password 4.6.4.1 Secure Boot ECM-ASL User’s Manual 81...

  • Page 82: Boot

    65535(0xFFFF) means indefinite waiting. On[Default] Bootup NumLock State Select the keyboard NumLock state Disabled[Default] Quiet Boot Enables or disables Quiet Boot option Enabled Boot Option #1/2 Set the system boot order. 4.6.6 Save and Exit 82 ECM-ASL User’s Manual...

  • Page 83: Save Changes And Reset

    This option restores all BIOS settings to the factory default. This option is useful if the controller exhibits unpredictable behavior due to an incorrect or inappropriate BIOS setting. 4.6.6.4 Launch EFI Shell from filesystem device Attempts to Launch EFI Shell application (Shellx64.efi) from one of the available filesystem devices. ECM-ASL User’s Manual 83...

  • Page 84: Mechanical Drawing

    ECM-ASL User’s Manual 5. Mechanical Drawing 84 ECM-ASL User’s Manual...
  • Page 85 User’s Manual Unit: mm ECM-ASL User’s Manual 85...
