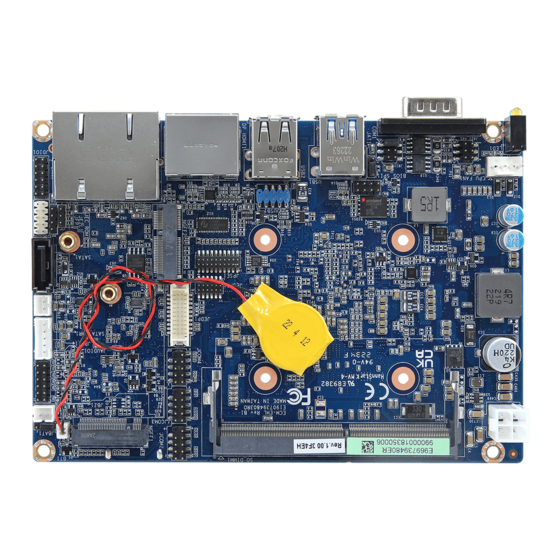

- Page 1 ECM-EHL-B1 Intel® Elkhart Lake 3.5” Micro Module User’s Manual Ed –07 February 2023 Part No. E2047394801R...
- Page 2 Disclaimer Avalue Technology Inc. reserves the right to make changes, without notice, to any product, including circuits and/or software described or contained in this manual in order to improve design and/or performance. Avalue Technology assumes no responsibility or liability for the...
- Page 3 Applications that are described in this manual are for illustration purposes only. Avalue Technology Inc. makes no representation or warranty that such application will be suitable for the specified use without further testing or modification.
- Page 4 A product returned without proof of the purchase date is not eligible for warranty service. Write the RMA number visibly on the outside of the package and ship it prepaid to your dealer. 4 ECM-EHL-B1 User’s Manual...
-
Page 5: Table Of Contents
Cortex Debug + ETM connector (JPSE1) .................. 28 2.3.20 Port80 connector (JESPI1) ......................28 2.3.21 eDP connector (JEDP1) ......................29 2.3.22 Audio connector (JAUDIO1) ...................... 29 Signal Description – Audio connector (JAUDIO1) ..............29 2.3.22.1 3.BIOS Setup ........................30 Introduction ......................31 ECM-EHL-B1 User’s Manual... - Page 6 3.6.3.1.2 Graphics Configuration ......................51 3.6.3.2 PCH-IO Configuration ......................52 3.6.3.2.1 PCI Express Configuration ....................52 3.6.3.2.2 SATA Configuration ....................... 58 3.6.3.2.3 USB Configuration ......................... 59 3.6.3.2.4 HD Audio Configuration ......................60 3.6.3.3 Board & Panel Configuration ....................60 6 ECM-EHL-B1 User’s Manual...
- Page 7 Install Chipset Driver ....................67 Install ME Driver ...................... 68 Install VGA Driver ....................69 Install Display Audio Driver ..................70 Install Ethernet Driver ....................72 Install HID Driver ..................... 74 Install SIO Driver ..................... 75 5. Mechanical Drawing ....................76 ECM-EHL-B1 User’s Manual...
-
Page 8: Getting Started
1.2 Packing List Before you begin installing your single board, please make sure that the following materials have been shipped: 1 x 3.5” ECM-EHL-B1 Micro Module 1 x CPU Heatsink ... -
Page 9: Document Amendment History
User’s Manual 1.3 Document Amendment History Revision Date Comment February 2023 Avalue Initial Release ECM-EHL-B1 User’s Manual... -
Page 10: Manual Objectives
We strongly recommend that you study this manual carefully before attempting to set up ECM-EHL-B1 or change the standard configurations. Whilst all the necessary information is available in this manual we would recommend that unless you are confident, you contact your supplier for guidance. -
Page 11: System Specifications
1 x M.2 (Key-E, 2230, PCIex1, USB2.0) Storage 1 x M.2 (Key-B, 2242) SATA Interface 1 x SATA III Edge I/O 1 x 2 x 3pin (2.0mm) for RS422/485 switch by GPIO 1 x D-SUB9 RS232 2 x RJ45 (Independent) ECM-EHL-B1 User’s Manual 11... - Page 12 Realtek ALC888S Audio Codec (co-lay ALC897, default ALC888S) Interface Mic-In, Line-In, Line-Out in pin header Ethernet Intel® I226LM for standard temperature LAN Chipset Intel® I226IT for extend temperature LAN Spec. 10/100/1000/2.5G Base-Tx GbE compatible Interface 2 x RJ45 Mechanical & Environmental Specification 12 ECM-EHL-B1 User’s Manual...
- Page 13 ISTA 2A, IEC-60068-2-32 Test : Ed, 1 Corner, 3 Edges, 6 Faces OS Information (listed in Win 10 accordance with Linux Intel document) Note: Specifications are subject to change without notice. User condition suggestion: 1. RealTek ALC888S-VD2-GR IC specification Operating Temp Range 0°C ~+70°C. ECM-EHL-B1 User’s Manual 13...
-
Page 14: Architecture Overview-Block Diagram
ECM-EHL-B1 User’s Manual 1.6 Architecture Overview—Block Diagram The following block diagram shows the architecture and main components of ECM-EHL-B1 14 ECM-EHL-B1 User’s Manual... -
Page 15: Hardware Configuration
User’s Manual 2. Hardware Configuration ECM-EHL-B1 User’s Manual 15... -
Page 16: Product Overview
ECM-EHL-B1 User’s Manual 2.1 Product Overview 16 ECM-EHL-B1 User’s Manual... -
Page 17: Jumper And Connector List
CPU fan connector 4 x 1 wafer, pitch 2.54mm CPU_FAN1 D-sub 9-pin, male Note：COM1 support RS422/485 Serial Port 1 connector COM1 by BIOS setting Serial port 1 in RS-422/485 mode 3 x 2 header, pitch 2.00 mm J422_485 ECM-EHL-B1 User’s Manual 17... - Page 18 DDR4 SODIMM socket JPSE1 Cortex Debug + ETM connector 10 x 2 header, pitch 1.27mm JESPI1 Port80 connector 6 x 2 header, pitch 1.27mm JEDP1 eDP connector 10 x 2 wafer, pitch 1.25mm USIM1 SIM card slot 18 ECM-EHL-B1 User’s Manual...
-
Page 19: Setting Jumpers & Connectors
User’s Manual 2.3 Setting Jumpers & Connectors 2.3.1 Serial port 1 pin9 signal select (JRI1) Ring* +12V * Default 2.3.2 Clear CMOS (JBAT1) Normal* Clear CMOS * Default ECM-EHL-B1 User’s Manual 19... -
Page 20: At/Atx Input Power Select (Jat1)
ECM-EHL-B1 User’s Manual 2.3.3 AT/ATX Input power select (JAT1) * Default 2.3.4 LCD inverter connector (JBKL1) Signal +12V BKLEN VBRIGHT 20 ECM-EHL-B1 User’s Manual... -
Page 21: Cpu Fan Connector (Cpu_Fan1)
User’s Manual 2.3.5 CPU fan connector (CPU_FAN1) Signal CFAN_OUT_PWM CFAN_IN_TACH +12V 2.3.6 Serial port 1 in RS-422/485 mode (J422_485) Signal PIN PIN Signal 485TX2- 485TX2+ 485RX2+ 485RX2- ECM-EHL-B1 User’s Manual 21... -
Page 22: Serial Port 2 Connector (Jcom2)
2.3.7 Serial port 2 connector (JCOM2) Signal PIN PIN Signal COM_DCD#_2 COM_RXD_2 COM_TXD_2 COM_DTR#_2 COM_DSR#_2 COM_RTS#_2 COM_CTS#_2 COM_RI#_2 2.3.8 Serial port 3 connector (JCOM3) Signal PIN PIN Signal COM_DCD#_3 COM_RXD_3 COM_TXD_3 COM_DTR#_3 COM_DSR#_3 COM_RTS#_3 COM_CTS#_3 COM_RI#_3 22 ECM-EHL-B1 User’s Manual... -
Page 23: Serial Port 4 Connector (Jcom4)
Serial port 4 connector (JCOM4) Signal PIN PIN Signal COM_DCD#_4 COM_RXD_4 COM_TXD_4 COM_DTR#_4 COM_DSR#_4 COM_RTS#_4 COM_CTS#_4 COM_RI#_4 2.3.10 General purpose I/O connector (JDIO1) Signal PIN PIN Signal DIO_GP20_TGPI4 DIO_GP10_TGPI0 DIO_GP21_TGPI5 DIO_GP11_TGPI1 DIO_GP22_TGPI6 DIO_GP12_TGPI2 DIO_GP23_TGPI7 DIO_GP13_TGPI3 SMB_SCL_S0 SMB_SDA_S0 ECM-EHL-B1 User’s Manual 23... -
Page 24: Sata Power Connector (Sata_Pwr1)
ECM-EHL-B1 User’s Manual 2.3.11 SATA Power connector (SATA_PWR1) Signal 2.3.12 Power connector (PWR1) Signal Signal +VIN_EXT +VIN_EXT 24 ECM-EHL-B1 User’s Manual... -
Page 25: Usb2.0 Connector (Jusb1)
User’s Manual 2.3.13 USB2.0 connector (JUSB1) Signal PIN PIN Signal +5VSB +5VSB USB_R_DN4 USB_R_DN5 USB_R_DP4 USB_R_DP5 2.3.14 BIOS SPI connector (BIOS_SPI1) Signal PIN PIN Signal +3.3VSB SPI_CS0# SPI_CLK SPI_MISO SPI_MOSI BIOS_HOLD# BIOS_WP# ECM-EHL-B1 User’s Manual 25... -
Page 26: Ec Debug Connector (Jec_Rom1)
ECM-EHL-B1 User’s Manual 2.3.15 EC Debug connector (JEC_ROM1) Signal EC_SMCLK_DBG EC_SMDAT_DBG 2.3.16 Battery connector (BT1) Signal +RTCBATT 26 ECM-EHL-B1 User’s Manual... -
Page 27: Front Panel Connector (Jfp1)
User’s Manual 2.3.17 Front Panel connector (JFP1) Signal PIN PIN Signal FP_HDD_LED+ FP_PWR_LED+ HDD_LED# PWR_LED# PMC_RSTBTN# PWR_BTN_IN_EC# 2.3.18 PC Buzzer connector (JBZ1) Signal SOC_SPKR_R ECM-EHL-B1 User’s Manual 27... -
Page 28: Cortex Debug + Etm Connector (Jpse1)
19 PSE_TRACEDATA_3 17 PSE_TRACEDATA_2 15 PSE_TRACEDATA_1 TGTPWR_GND 13 PSE_TRACEDATA_0 TGTPWR_GND PSE_TRACECLK PSE_JTAG_GND_DET 10 PSE_JTAG_NRESET TP_TDI_PIN8 PSE_TRACESWO PSE_SWCLK +1.8VSB PSE_SWDIO 2.3.20 Port80 connector (JESPI1) Signal PIN PIN Signal ESPI_ALERT# ESPI_RST ESPI_CLK ESPI_IO3 ESPI_CS# ESPI_IO2 PLT_RST_BUF# ESPI_IO1 +3.3VSB ESPI_IO0 28 ECM-EHL-B1 User’s Manual... -
Page 29: Edp Connector (Jedp1)
HD_AGND HD_AGND LINE1-R-IN LINE1-L-IN MIC1-R-IN MIC1-L-IN FRONT-JD LINE1-JD MIC1-JD HD_AGND 2.3.22.1 Signal Description – Audio connector (JAUDIO1) Signal Signal Description LINE1-JD AUDIO IN (LINE_RIN/LIN)sense pin FRONT-JD AUDIO Out(ROUT/LOUT) sense pin MIC1-JD MIC IN (MIC_RIN/LIN) sense pin ECM-EHL-B1 User’s Manual 29... -
Page 30: Bios Setup
ECM-EHL-B1 User’s Manual 3.BIOS Setup 30 ECM-EHL-B1 User’s Manual... -
Page 31: Introduction
If the message disappears before you respond and you still wish to enter Setup, restart the system to try again by turning it OFF then ON or pressing the "RESET" button on the system case. You may also restart by simultaneously pressing <Ctrl>, <Alt>, and <Delete> keys. ECM-EHL-B1 User’s Manual 31... -
Page 32: Using Setup
Note: Some of the navigation keys differ from one screen to another. To Display a Sub Menu Use the arrow keys to move the cursor to the sub menu you want. Then press <Enter>. A “” pointer marks all sub menus. 32 ECM-EHL-B1 User’s Manual... -
Page 33: Getting Help
BIOS Vendor and your systems manufacturer to provide the absolute maximum performance and reliability. Even a seemingly small change to the chipset setup has the potential for causing you to use the override. ECM-EHL-B1 User’s Manual 33... -
Page 34: Bios Setup
<Enter> to accept and enter the sub-menu. 3.6.1 Main Menu This section allows you to record some basic hardware configurations in your computer and set the system clock. 34 ECM-EHL-B1 User’s Manual... -
Page 35: System Language
Visit the Avalue website (www.avalue.com.tw) to download the latest product and BIOS information. 3.6.2 Advanced Menu This section allows you to configure your CPU and other system devices for basic operation through the following sub-menus. ECM-EHL-B1 User’s Manual 35... -
Page 36: Cpu Configuration
Enable/Disable CPU Flex Ratio Programming. Enabled When enabled, a VMM can utilize the additional Intel (VMX) Virtualization Disabled hardware capabilities provided by Vanderpool Technology Enabled[Default] Technology. All[Default] Number of cores to enable in each processor Active Processor Cores package. 36 ECM-EHL-B1 User’s Manual... -
Page 37: Power & Performance
Item Option Description Enabled[Default], Allows more than two frequency Intel® SpeedStep™ Disabled ranges to be supported. Eanble/Disable Intel® Speed Shift Intel® Speed Shift Enabled[Default], Technology support. Enabling will Technology Disabled expose the CPPC v2 interface to ECM-EHL-B1 User’s Manual 37... - Page 38 Enable/Disable Energy Efficient Turbo Feature. This feature will opportunistically lower the turbo Disabled frequency to increase efficiency. Recommended Energy Efficient Turbo Enabled[Default] only to disable in overclocking situations where turbo frequency must remain constant. Otherwise, leave enabled. 38 ECM-EHL-B1 User’s Manual...
-
Page 39: Gt - Power Management Control
Check to enable render RC6(Render Standby) Disabled standby support. Default Max Frequency[Default] 100Mhz/150Mhz/200Mhz/250Mhz/300Mhz /350Mhz/400Mhz/450Mhz/500Mhz/550Mhz Maximum GT frequency Auto Updated. /600Mhz/650Mhz/700Mhz/750Mhz/800Mhz /850Mhz/900Mhz/950Mhz/1000Mhz/1050Mhz /1100Mhz/1150Mhz/1200Mhz Enabled: Disables Turbo GT Disable Turbo GT Enabled frequency. Disabled: GT frequency Disabled[Default] frequency is not limited. ECM-EHL-B1 User’s Manual 39... -
Page 40: Pch-Fw Configuration
When Disabled ME will not be unconfigured on ME Unconfig on RTC Clear Enabled[Default] RTC Clear. 3.6.2.3.1 Firmware Update Configuration Item Option Description Disabled [Default], ME FW Image Re-Flash Enable/Disable Me FW Image Re-Flash function. Enabled 40 ECM-EHL-B1 User’s Manual... -
Page 41: Ptt Configuration
3.6.2.3.2 PTT Configuration 3.6.2.4 Trusted Computing Item Options Description Enables or Disables BIOS support for security device. Disable, Security Device Support O.S. will not show Security Device. TCG EFI protocol Enable[Default] and INT1A interface will not be available. ECM-EHL-B1 User’s Manual 41... -
Page 42: Apci Settings
Enabled[Default], option may not be effective with some Select the highest ACPI sleep state the Suspend Disabled, ACPI Sleep State system will enter when the SUSPEND S3 (Suspend to RAM)[Default] button is pressed. 3.6.2.6 HW Monitor 42 ECM-EHL-B1 User’s Manual... -
Page 43: Nct5124Dsec Super Io Configuration
Set Parameters of Serial Port 1 (COMA). Serial Port 2 Configuration Set Parameters of Serial Port 2 (COMB). Serial Port 3 Configuration Set Parameters of Serial Port 3 (COMC). Serial Port 4 Configuration Set Parameters of Serial Port 4 (COMD). ECM-EHL-B1 User’s Manual 43... -
Page 44: Serial Port 1 Configuration
3.6.2.7.1 Serial Port 1 Configuration Item Option Description Enabled[Default], Serial Port 1 Enable or Disable Serial Port (COM). Disabled UART 232[Default], Change the Serial Port as UART 232 422 485 UART 422 RS232/422/485. UART 485 3.6.2.7.2 Serial Port 2 Configuration 44 ECM-EHL-B1 User’s Manual... -
Page 45: Serial Port 3 Configuration
3.6.2.7.3 Serial Port 3 Configuration Item Option Description Enabled[Default], Serial Port 3 Enable or Disable Serial Port (COM). Disabled 3.6.2.7.4 Serial Port 4 Configuration Item Option Description Enabled[Default], Serial Port 4 Enable or Disable Serial Port (COM). Disabled ECM-EHL-B1 User’s Manual 45... -
Page 46: S5 Rtc Wake Settings
Disabled[Default], Fixed Time, system will wake on the hr::min::sec specified. Wake system from S5 Fixed Time Select Dynamic Time, System will wake on the current time Dynamic Time + Increase minute(s). 3.6.2.9 Serial Port Console Redirection 46 ECM-EHL-B1 User’s Manual... -
Page 47: Usb Configuration
10 sec Interrupt transfers. 20 sec[Default] 10 sec 20 sec[Default] USB mass storage device Start Unit command Device reset time-out 30 sec time-out. 40 sec Device power-up delay Auto[Default] Maximum time the device will take before it ECM-EHL-B1 User’s Manual 47... -
Page 48: Network Stack Configuration
Optical drives are emulated as ‘CDROM’, drives with no media will be Hard Disk CD-ROM emulated according to a drive type. 3.6.2.11 Network Stack Configuration Item Options Description Enabled Network Stack Enable/Disable UEFI Network Stack. Disabled[Default] 48 ECM-EHL-B1 User’s Manual... -
Page 49: Nvme Configuration
User’s Manual 3.6.2.12 NVMe Configuration 3.6.3 Chipset ECM-EHL-B1 User’s Manual 49... -
Page 50: System Agent (Sa) Configuration
System Agent (SA) Configuration Item Option Description Enabled[Default] VT-d VT-d capability. Disabled Enable/Disable above 4GB Above 4GB MMIO BIOS Enabled MemoryMappedIO BIOS assignment. This assignment Disabled[Default] is enabled automatically when Aperture Size is set to 2048MB. 3.6.3.1.1 Memory Configuration 50 ECM-EHL-B1 User’s Manual... -
Page 51: Graphics Configuration
Select the GTT Size. 8MB[Default] 128MB Select the Aperture Size. Note: Above 4GB 256MB[Default] MMIO BIOS assignment is automatically enabled Aperture Size 512MB when selecting 2048MB aperture. To use this 1024MB feature, please disable CSM Support. ECM-EHL-B1 User’s Manual 51... -
Page 52: Pch-Io Configuration
ECM-EHL-B1 User’s Manual 3.6.3.2 PCH-IO Configuration 3.6.3.2.1 PCI Express Configuration 52 ECM-EHL-B1 User’s Manual... - Page 53 L0s State AUTO – BIOS auto ASPM configure DISABLE – Disables ASPM. L0sL1 Auto Disabled[Default] L1 Substates L1.1 PCI Express L1 Substates settings. L1.1 & L1.2 Auto[Default] Gen1 PCIe Speed Configure PCIe Speed. Gen2 Gen3 ECM-EHL-B1 User’s Manual 53...
- Page 54 L0s State AUTO – BIOS auto ASPM configure DISABLE – Disables ASPM. L0sL1 Auto Disabled[Default] L1 Substates L1.1 PCI Express L1 Substates settings. L1.1 & L1.2 Auto[Default] Gen1 PCIe Speed Configure PCIe Speed. Gen2 Gen3 54 ECM-EHL-B1 User’s Manual...
- Page 55 L0s State AUTO – BIOS auto ASPM configure DISABLE – Disables ASPM. L0sL1 Auto Disabled[Default], L1 Substates L1.1 PCI Express L1 Substates settings. L1.1 & L1.2 Auto[Default] Gen1 PCIe Speed Configure PCIe Speed. Gen2 Gen3 ECM-EHL-B1 User’s Manual 55...
- Page 56 L0s State AUTO – BIOS auto ASPM configure DISABLE – Disables ASPM. L0sL1 Auto Disabled[Default], L1 Substates L1.1 PCI Express L1 Substates settings. L1.1 & L1.2 Auto[Default] Gen1 PCIe Speed Configure PCIe Speed. Gen2 Gen3 56 ECM-EHL-B1 User’s Manual...
- Page 57 Disabled[Default] Disabled = CLKREQ will not be used. Platform-POR= clock is assigned to PCIe Platform-POR[Default], port or LAN according to board layout. Clock3 assignment[M.2-M] Enabled Enabled= keep clock enabledeven if unused. Disabled Disabled = Disable clock. ECM-EHL-B1 User’s Manual 57...
-
Page 58: Sata Configuration
Enable/Disable SATA Port 0 DevSlp. For DevSlp to work, both hard drive and SATA Disabled[Default] port need to support DevSlp function, SATA Port 0 DevSlp Enabled otherwise an unexpected behaviour might happen. Please check board design before enabling it. 58 ECM-EHL-B1 User’s Manual... -
Page 59: Usb Configuration
This option is to select USB3 Link Speed USB3 Link Speed Selection GEN2[Default], GEN1 or GEN2. Selectively Enable/Disable the corresponding Disabled[Default] USB Port Disable Override USB port from reporting a Device Connection Select-Per-Pin to the controller. ECM-EHL-B1 User’s Manual 59... -
Page 60: Hd Audio Configuration
3.6.3.2.4 HD Audio Configuration Item Option Description Control Detection of the HD-Audio device. Disable = HDA Disabled HD Audio will be unconditionally disabled Enabled = HDA will be Enabled[Default] unconditionally enabled. 3.6.3.3 Board & Panel Configuration 60 ECM-EHL-B1 User’s Manual... - Page 61 30 sec 40 sec 50 sec Watch Dog Select WatchDog. 1 min 2 min 10 min 30 min Disabled Enable/Disabled USB Standby Power USB Standby Power Enabled[Default] during S3/S4/S5. Disabled[Default] SHOW DMI INFO SHOW DMI INFO. Enabled ECM-EHL-B1 User’s Manual 61...
-
Page 62: Security
ECM-EHL-B1 User’s Manual 3.6.4 Security Administrator Password Set setup Administrator Password User Password Set User Password 3.6.4.1 Secure Boot 62 ECM-EHL-B1 User’s Manual... -
Page 63: Key Management
Custom mode Secure Boot Variables can be configured Custom[Default] without authentication. 3.6.4.1.1 Key Management Item Option Description Install factory default Secure Boot keys after Disabled[Default] Factory Key Provision the platform reset and while the System is in Enabled Setup mode. ECM-EHL-B1 User’s Manual 63... -
Page 64: Boot
Enables or disables boot with initialization of a Disabled[Default] Fast Boot minimal set of devices required to launch active Enabled boot option. Has no effect for BBS boot options. Boot Option #1/#2 Set the system boot order. 64 ECM-EHL-B1 User’s Manual... -
Page 65: Save And Exit
The setup program then exits and reboots the controller. 3.6.6.3 Restore Defaults This option restores all BIOS settings to the factory default. This option is useful if the controller exhibits unpredictable behavior due to an incorrect or inappropriate BIOS setting. ECM-EHL-B1 User’s Manual 65... -
Page 66: Drivers Installation
ECM-EHL-B1 User’s Manual 4. Drivers Installation Note: Installation procedures and screen shots in this section are for your reference and may not be exactly the same as shown on your screen. 66 ECM-EHL-B1 User’s Manual... -
Page 67: Install Chipset Driver
Windows 10 operation system. If the warning message appears while the installation process, click Continue to go on. Step 3. Click Install. Step1. Click Next. Step 4. Setup completed. Step 2. Click Accept. ECM-EHL-B1 User’s Manual 67... -
Page 68: Install Me Driver
If the warning message appears while the installation process, click Continue to go on. Step 3. Click Next to continue installation. Step 4. Click Finish to complete setup. Step1. Click Next to start installation. Step 2. Click Next. 68 ECM-EHL-B1 User’s Manual... -
Page 69: Install Vga Driver
Note: The installation procedures and screen shots in this section are based on Windows 10 operation system. Step 3. Click Start. Step 4. Click Finish to complete setup. Step 1. Click Begin installation. Step 2. Click Next. ECM-EHL-B1 User’s Manual 69... -
Page 70: Install Display Audio Driver
Windows 10 operation system. Step 3. Click Next. Step 1. Click Update Drivers. Step 4. Click Next. Step 2. Click Browse my computer for Step 5. Click OK. drivers. 70 ECM-EHL-B1 User’s Manual... - Page 71 User’s Manual Step 6. Click Next. Step 7. Click Yes. Step 8. Install complete. ECM-EHL-B1 User’s Manual 71...
-
Page 72: Install Ethernet Driver
Windows 10 operation system. Step 3. Click Next. Step 1. Click Install Drivers and Software to continue installation. Step 4. Click Next. Step 2. Click Next. Step 5. Click Install. 72 ECM-EHL-B1 User’s Manual... - Page 73 User’s Manual Step 6. Click Finish to complete setup. ECM-EHL-B1 User’s Manual 73...
-
Page 74: Install Hid Driver
Note: The installation procedures and screen shots in this section are based on Windows 10 operation system. Step 3. Click Next. Step 1. Click Next to continue installation. Step 4. Click Finish to complete setup. Step 2. Click Yes. 74 ECM-EHL-B1 User’s Manual... -
Page 75: Install Sio Driver
Windows 10 operation system. Step 3. Click Search automatically for drivers. Step 1. Click Unknown device to continue installation. Step 4. Click Next. Step 2. Click Update driver. Step 5. Install complete. ECM-EHL-B1 User’s Manual 75... -
Page 76: Mechanical Drawing
ECM-EHL-B1 User’s Manual 5. Mechanical Drawing 76 ECM-EHL-B1 User’s Manual... - Page 77 User’s Manual Unit: mm ECM-EHL-B1 User’s Manual 77...
- Page 78 ECM-EHL-B1 User’s Manual Wide temperature (ECM-EHL-B1) Unit: mm 78 ECM-EHL-B1 User’s Manual...
