GETTING STARTED

The following section contains the installation instructions for
the ADAQ798x Evaluation Software
hardware required for operation of the software. The evaluation
software provides a graphical user interface (GUI) for quick
evaluation of the ADAQ7980.

SOFTWARE INSTALLATION PROCEDURES

Download the evaluation board software from the
product page on the Analog Devices website.
There are two steps to the installation:
•
The ADAQ798x Evaluation Software
•
The EVAL-SDP-CB1Z
Warning
Install the evaluation board software and drivers before connecting
the EVAL-ADAQ7980SDZ
CB1Z board to the USB port of the PC to ensure the evaluation
system is correctly recognized when it connects to the PC.
Installing the ADAQ7980
To install the ADAQ798x Evaluation
1. Start the Windows operating system and download the
software from the EVAL-ADAQ7980SDZ
the Analog Devices website.
2. Unzip the downloaded file.
3. Double-click the setup.exe file to begin the evaluation
board software installation (see Figure 2).

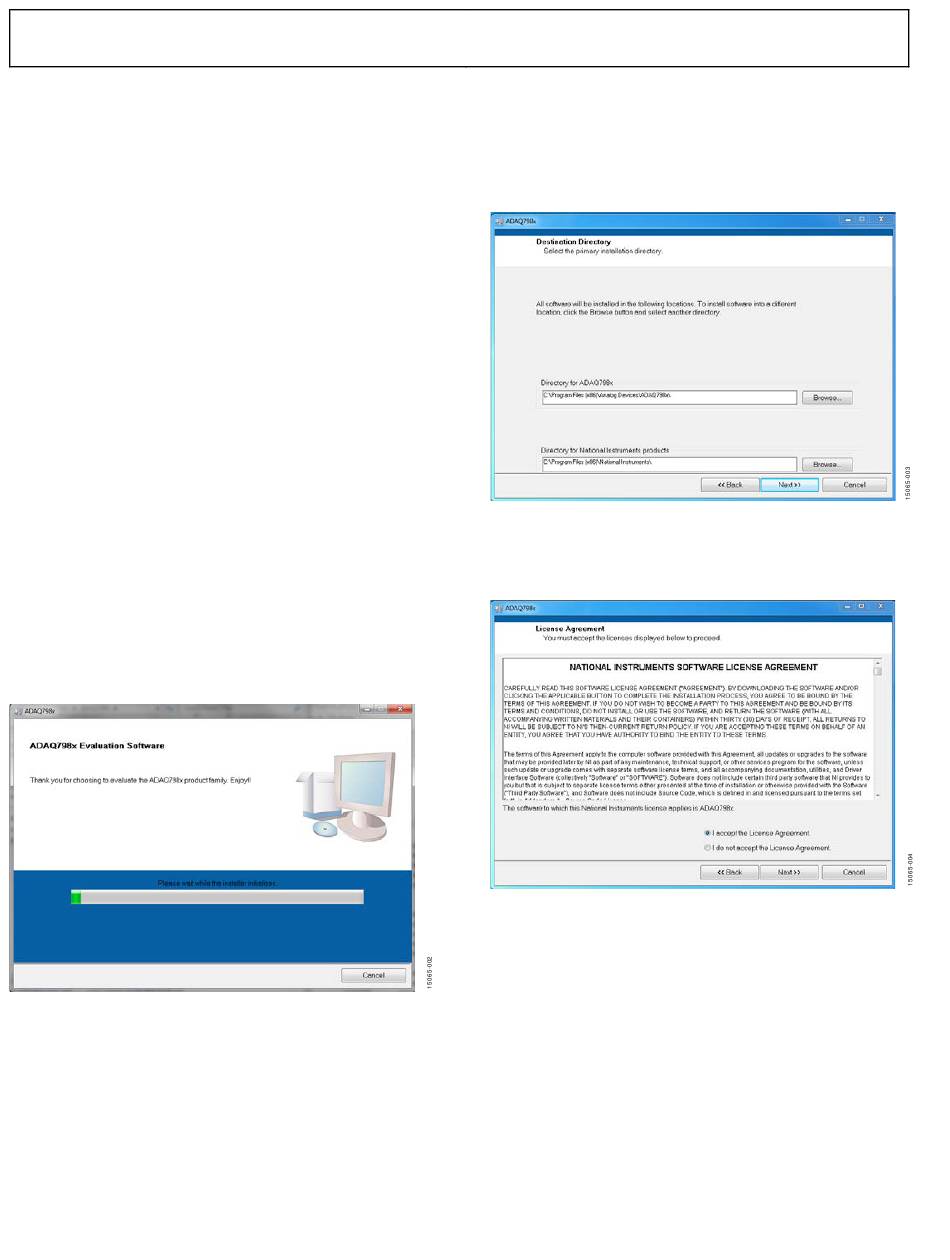

Figure 2. ADAQ7980 Evaluation Board Software Installation—Installation
and the drivers for the SDP
ADAQ7980
installation
SDP board drivers installation
evaluation board and EVAL-SDP-
Evaluation Board Software
Software,
product page on
Begins
EVAL-ADAQ7980SDZ User Guide
4. Select a location to install the software and click Next. The
default location is C:\Program Files (x86)\Analog Devices\
ADAQ798x. This location also contains the executable
software and example files.
Figure 3. ADAQ7980
Location for Software Installation (the Default Location Is Shown)
5. A license agreement appears. Read the agreement, and then
select I accept the License Agreement and click Next.
Figure 4. ADAQ7980
Rev. 0 | Page 4 of 30
Evaluation Board Software Installation—Selecting the
Evaluation Board Software Installation—Accepting the
License Agreement
