WARNING
Electrical Shock Hazard
Disconnect power before servicing.
Replace all parts and panels before operating.
Failure to do so can result in death or
electrical shock.

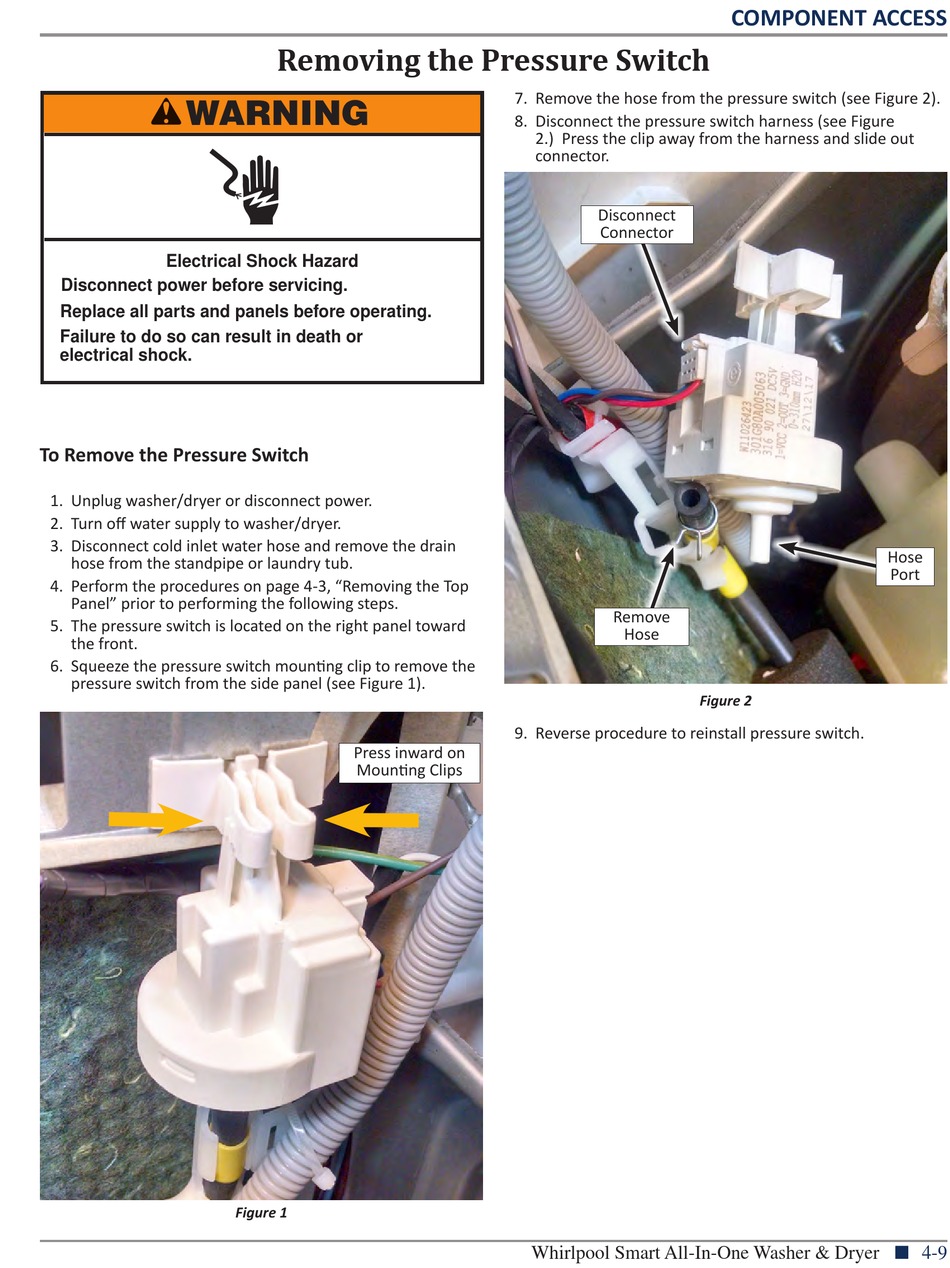

To Remove the Pressure Switch
1. Unplug washer/dryer or disconnect power.
2. Turn off water supply to washer/dryer.
3. Disconnect cold inlet water hose and remove the drain
hose from the standpipe or laundry tub.
4. Perform the procedures on page 4-3, "Removing the Top
Panel" prior to performing the following steps.
5. The pressure switch is located on the right panel toward
the front.
6. Squeeze the pressure switch mounting clip to remove the
pressure switch from the side panel (see Figure 1).

Removing the Pressure Switch

Press inward on
Mounting Clips
Figure 1
7. Remove the hose from the pressure switch (see Figure 2).
8. Disconnect the pressure switch harness (see Figure
2.) Press the clip away from the harness and slide out
connector.
Disconnect
Connector
Remove
Hose
9. Reverse procedure to reinstall pressure switch.
Whirlpool Smart All-In-One Washer & Dryer
COMPONENT ACCESS
Figure 2
Hose
Port
4-9
