How To Manually Open A Locked Door - Whirlpool WFC8090GX Service Manual

FOR SERVICE TECHNICIAN'S USE ONLY

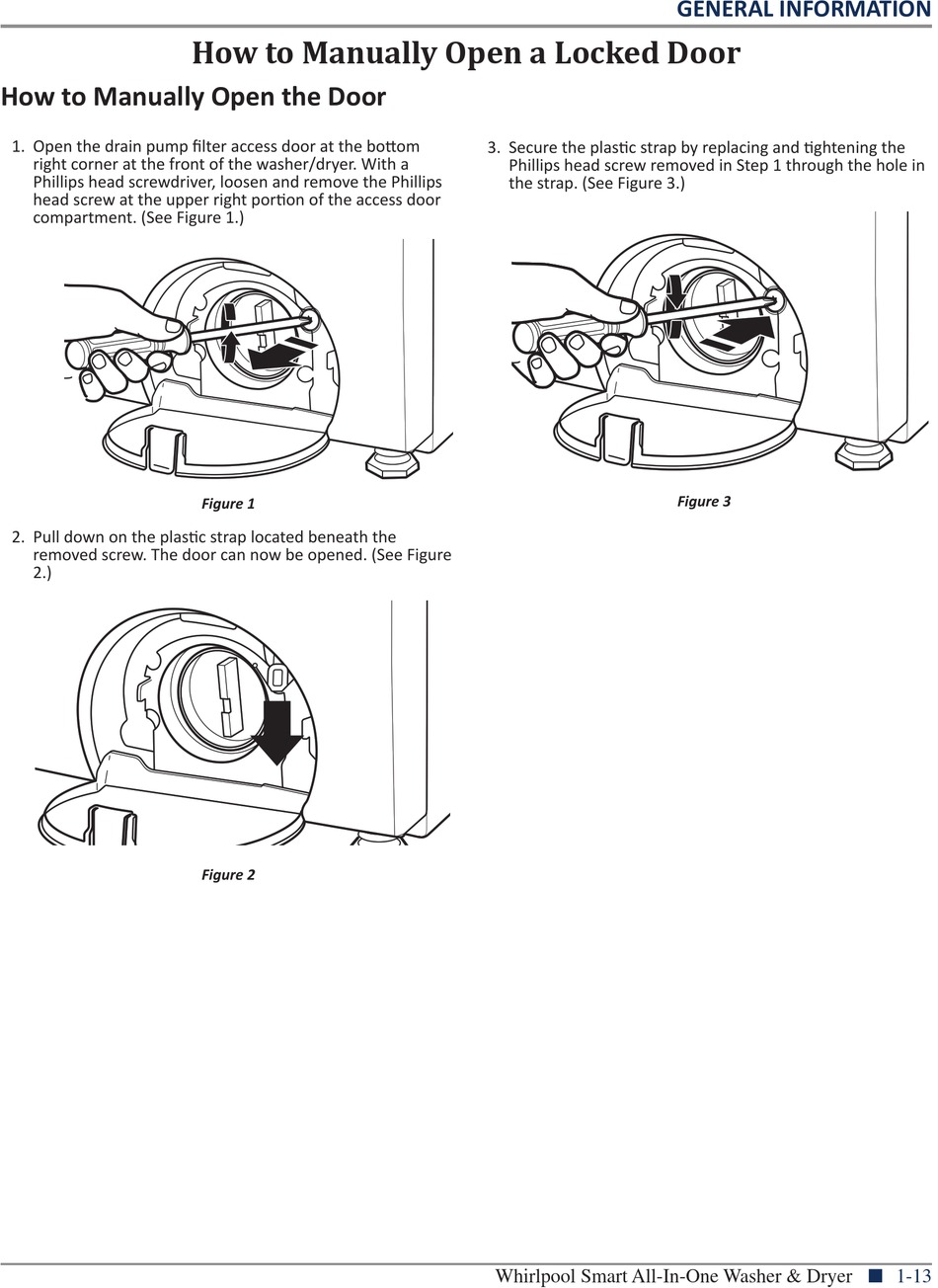

How to Manually Open the Door
1. Open the drain pump filter access door at the bottom
right corner at the front of the washer/dryer. With a
Phillips head screwdriver, loosen and remove the Phillips
head screw at the upper right portion of the access door
compartment. (See Figure 1.)
2. Pull down on the plastic strap located beneath the
removed screw. The door can now be opened. (See Figure
2.)

How to Manually Open a Locked Door

Figure 1
Figure 2
DESTROY
DESTROY
3. Secure the plastic strap by replacing a
tightening the Phillips head screw remove
3. Secure the plastic strap by replacing and tightening the
Step 1 through the hole in the strap.
Phillips head screw removed in Step 1 through the hole in
the strap. (See Figure 3.)
