GENERAL INFORMATION
Dry Cycle - Theory of Operation
The illustration below gives a brief description of the components involved specifically on a Dry Cycle. Knowledge on the
system's physical parts is needed in order to properly diagnose and troubleshoot the "all-in-one" washer/dryer.
1. Blower - Generates process air flow through the heater
channel, tub, and condenser duct.
2. Air Heater - Heats the air so it gets into the tub at high
temperature and reduced relative humidity.
3. Heater Channel - Conducts hot process air into the tub, so
it can remove humidity from the laundry.
4. Inlet Air NTC - Used as a feedback for the air heater
Control Software.

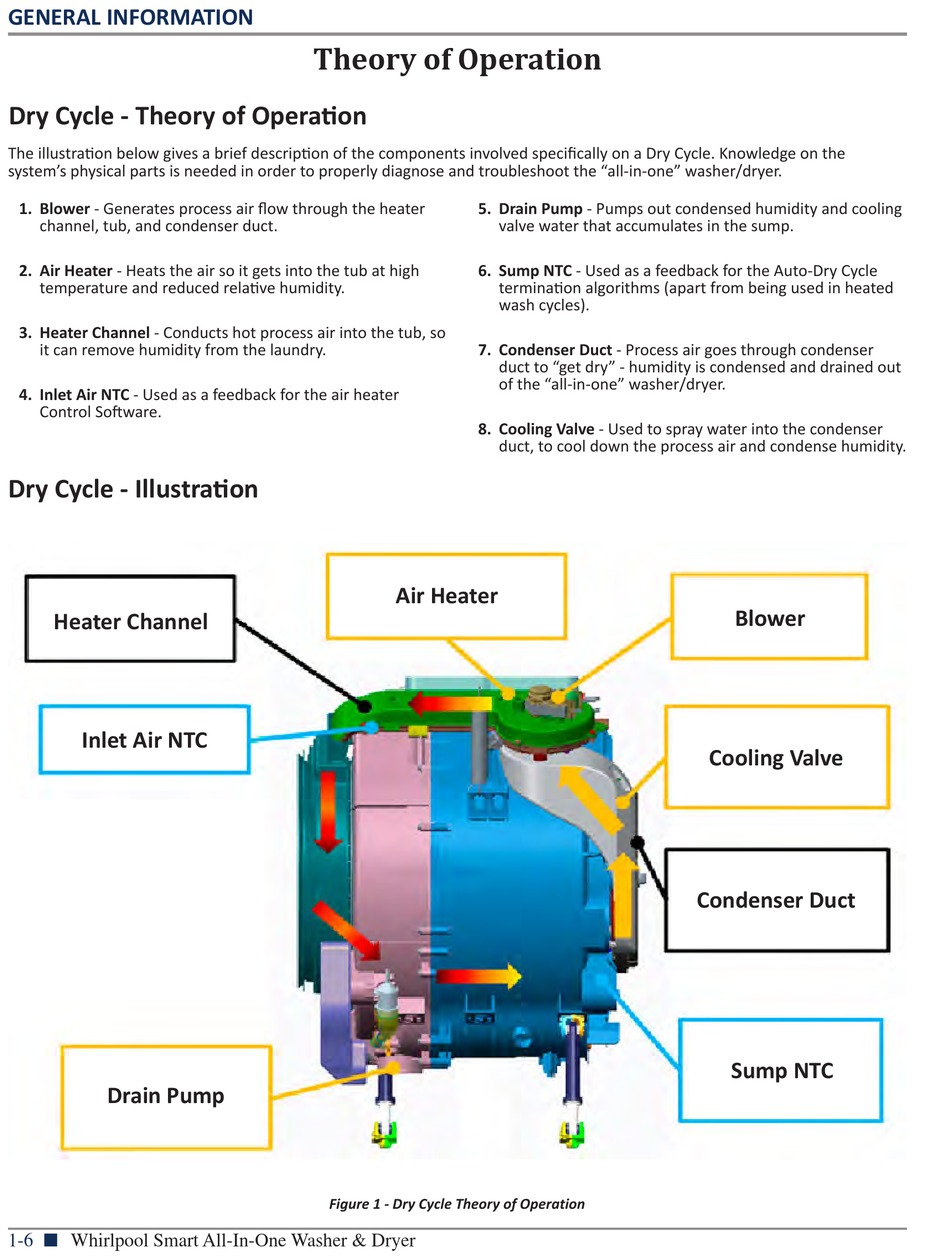

Dry Cycle - Illustration
Heater Channel
Inlet Air NTC
Drain Pump
1-6 Whirlpool Smart All-In-One Washer & Dryer
n

Theory of Operation

5. Drain Pump - Pumps out condensed humidity and cooling
6. Sump NTC - Used as a feedback for the Auto-Dry Cycle
7. Condenser Duct - Process air goes through condenser
8. Cooling Valve - Used to spray water into the condenser
Air Heater
Figure 1 - Dry Cycle Theory of Operation
valve water that accumulates in the sump.
termination algorithms (apart from being used in heated
wash cycles).
duct to "get dry" - humidity is condensed and drained out
of the "all-in-one" washer/dryer.
duct, to cool down the process air and condense humidity.
Blower
Cooling Valve
Condenser Duct
Sump NTC
