Fault/Error Codes - Whirlpool WFC8090GX Service Manual

confirm wattage measurement
Turn "Softener Pump" On –
DIAGNOSTICS & TROUBLESHOOTING
confirm wattage measurement
Turn "Softener Pump" Off –
confirm wattage measurement
SERVICE DIAGNOSTIC MODE TESTS (Continued)
Skip "Spray Valve"
• Turn "Cold Water Valve" On – confirm voltage
measurement
• Turn "Cold Water Valve" Off
• Turn "Condensation Valve" On – confirm voltage
measurement
• Turn "Condensation Valve" Off
Turn "Strong Off" On
• Turn "Detergent Pump" On – confirm voltage measurement
Turn "Strong Off" Off
• Turn "Detergent Pump" Off
Exit Service Diagnostic Mode by scrolling
to the top and pressing the < button in
the top left corner of the screen twice,
and then pressing the HOME button.
• Turn "Softener Pump" On – confirm voltage measurement
• Turn "Softener Pump" Off
• Skip "Spray Valve" (not available on this model)
• Skip "Strong Off" On (not available on this model)
"Skip"

FAULT/ERROR CODES

"Skip"
Fault/Error Code Display Method
Fault codes are displayed by showing F#E#. The F# indicates the suspect System/Category.
The E# indicates the suspect Component system.
Up to four Fault/Error codes may be stored. In Service Diagnostic Mode, pressing START
displays the next saved Fault/Error Code. If the display shows "F - E -, " no fault codes
are present.
NOTE: Fault/Error codes cannot be cleared.
Exit Procedure
To exit Fault/Error Codes Display Mode, turn the cycle selector knob or press and hold POWER.
The fault codes below may be indicated under various conditions and can be accessed through
Service Diagnostics.
n
2-6 Whirlpool Smart All-In-One Washer & Dryer
F0E1 Load in drum during Clean Washer cycle
F0E3 High temp error, dry cycle
For Service Technician Use Only
FOR SERVICE TECHNICIAN'S USE ONLY

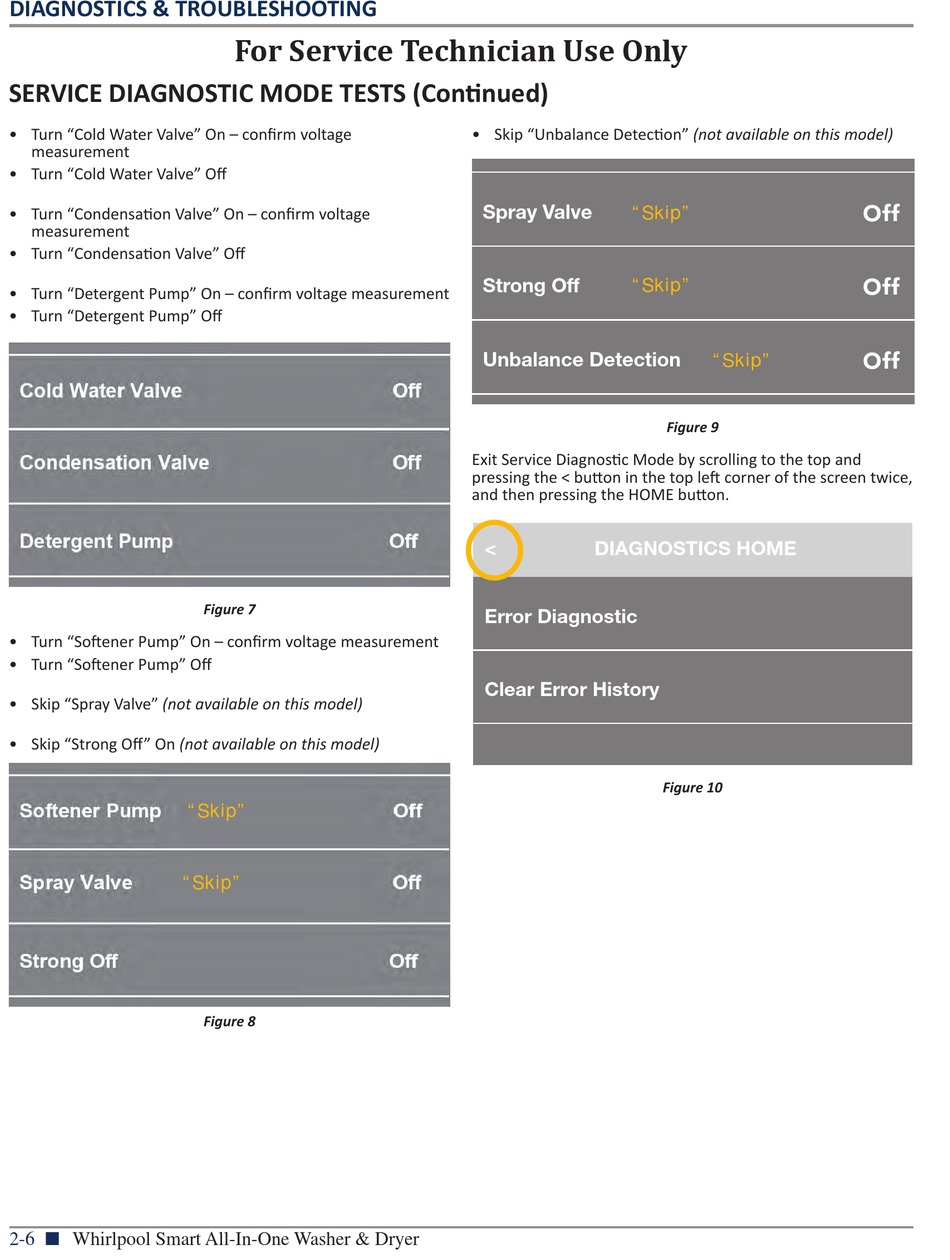

SERVICE DIAGNOSTIC MODE TESTS (cont.)
Figure 7
Figure 8
Softener Pump
Spray Valve
• Skip "Unbalance Detection" (not available on this model)
Spray Valve "Skip"
"Skip"
Strong Off
Unbalance Detection
Exit Service Diagnostic Mode by scrolling to the top and
pressing the < button in the top left corner of the screen twice,
and then pressing the HOME button.
DO NOT REMOVE OR DESTROY
< DIAGNOSTICS HOME
Error Diagnostic
Clear Error History
F6E1 MC/MCU communication error
F6E3 Unknown cycle ID error
