© Panduit Corp. 2010

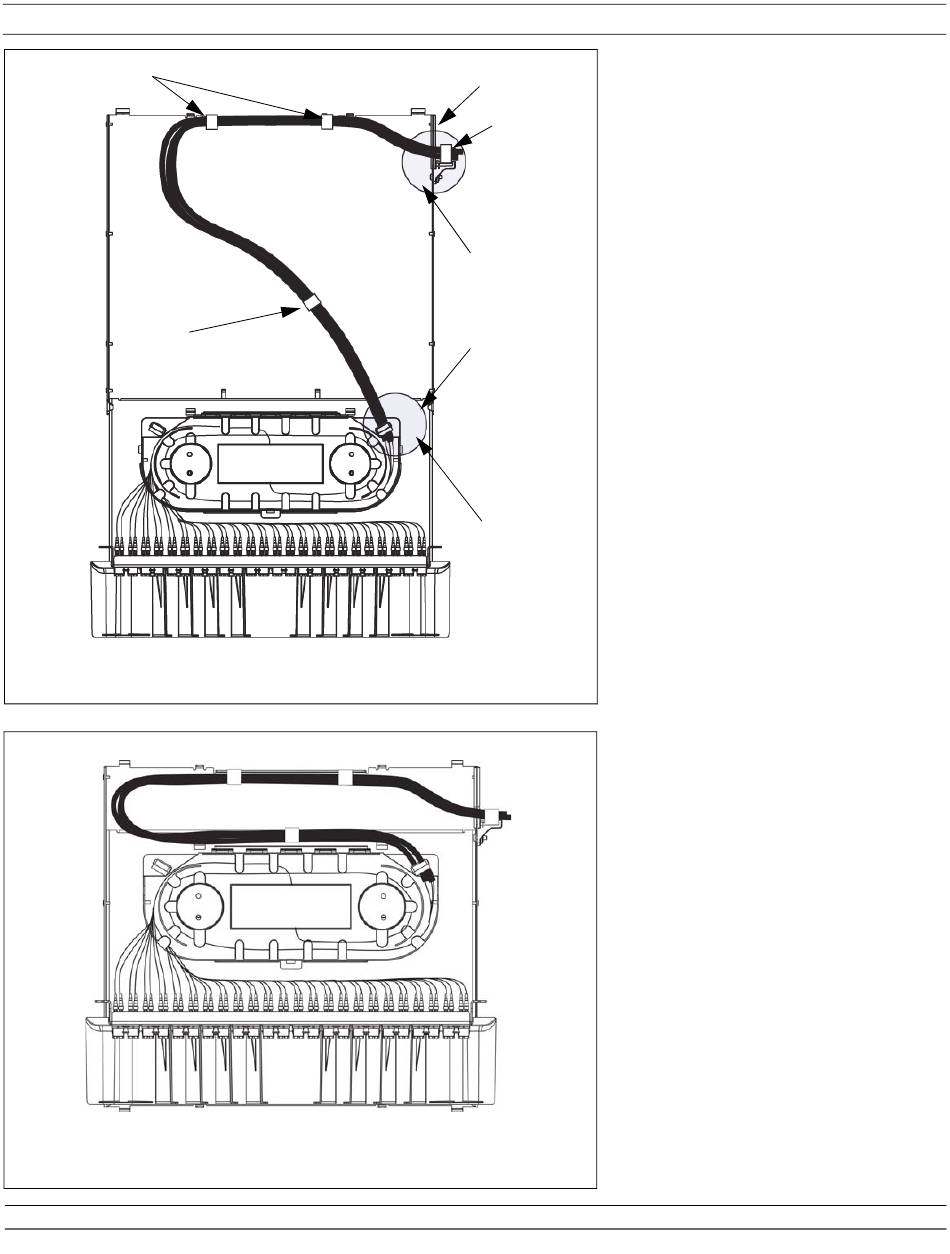

Tak-Ty cable to
fence or cover
Free
floating
Tak-Ty
Drawer in extended position.
(cover omitted for clarity)
Drawer in home position.
(cover omitted for clarity)
For Technical Support: www.panduit.com/resources/install_maintain.asp
INSTALLATION INSTRUCTIONS
Grommet
Fixed Tak-Ty
"A"
Cable Length
between point
"A" and point
"B" is approx.
31" [.787m]
"B"
Individual
fiber break
out point.
Figure 8B
Figure 8C
Page 9 of 10
Route fiber through grommet as shown. Use
enough cable length to ensure one complete
loop of individual fibers around splice tray
slack spools. (See instruction sheet for splice
trays). Leave enough jacketed slack so when
the drawer is fully extended the cables are not
put under tension. DO NOT use so much slack
that the drawer cannot be returned to its home
position (See Figure 8C).
Use Tak-Tys to secure fiber cords at cable
entry location and other points as shown.
FS012
