PREPARATION AND RACK MOUNTING
Bend Radius
Post
Use (2) #12-24 x 1/2" or (2)
M6x1 screws (provided).
Repeat for other side.
Fastening tabs can be
used to secure slide out
tray using two additional
#12-24 x 1/2" or M6x1
screws (not provided).
For Technical Support: www.panduit.com/resources/install_maintain.asp
INSTALLATION INSTRUCTIONS

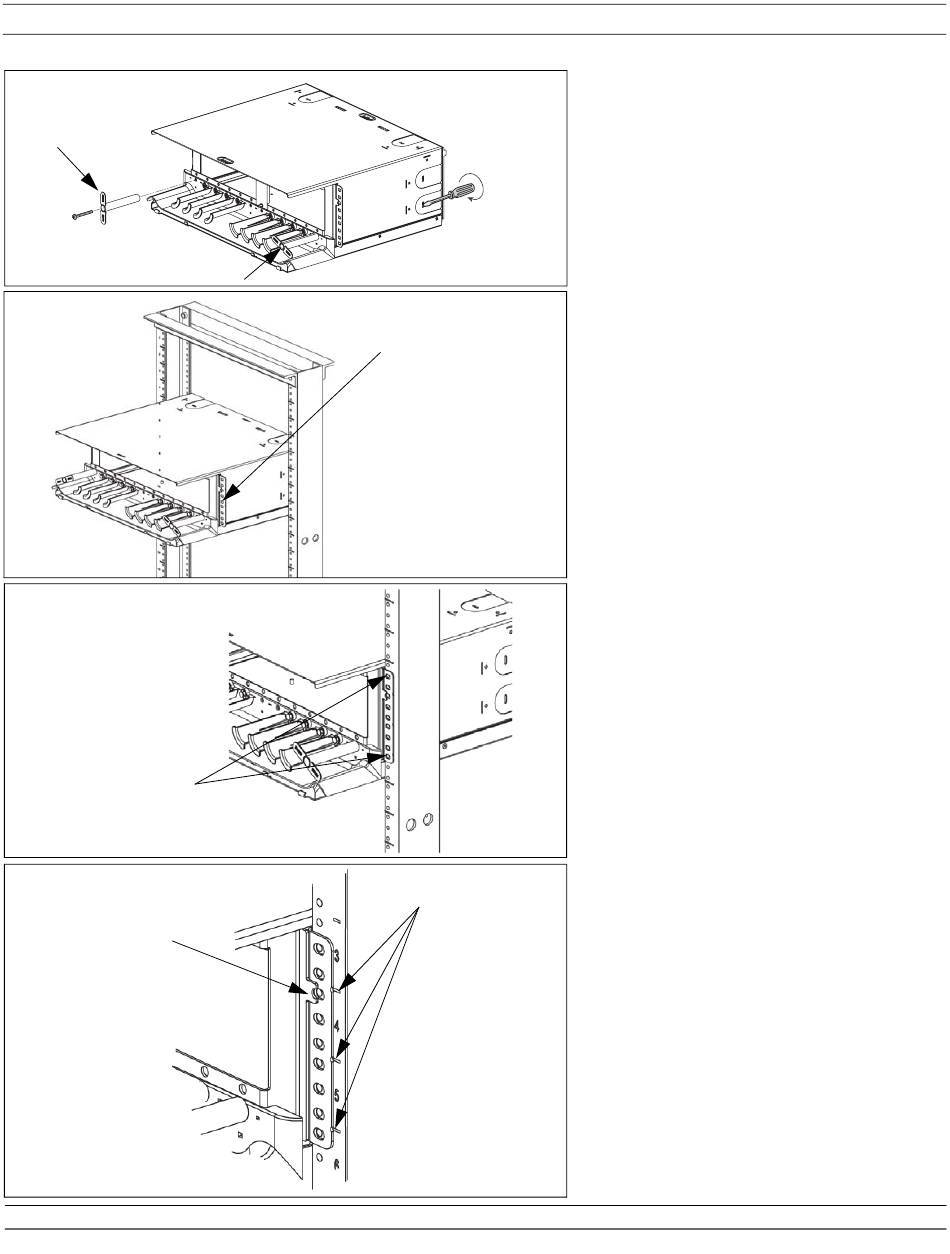

Figure 2
Enclosure Mounting
Bracket
(typical opposite side)
Figure 3A
Figure 3B
Align notches with
RU markings.
Figure 3C
Page 2 of 10
Install the bend radius posts on each side as shown.
Determine where the cable will enter the enclosure.
Carefully remove the knock-out at that entry location
of the fiber tray making sure not to damage the
surrounding sheet metal. DO NOT install grommet at
this stage, grommet will be installed after enclosure
is mounted to rack.
Place enclosure mounting brackets at desired
position on the rack. Mount the enclosure to the rack
using (4) #12-24 x 1/2" screws. Use the (4) M6x1
screws if mounting to a metric rack.
