Panduit FPFPC1 Installation Instructions
Panduit FPFPC1 Installation Instructions

Panduit FPFPC1 Installation Instructions

Fiber patch field protection cover 1ru

Advertisement

Quick Links

© Panduit Corp. 2014
(4) #12-24 x 1/2"
Screws
Mounting Brackets
(4) M6 x 15mm
Screws
1
Left mounting
bracket
Use either #12-24 x 1/2"
or M6 x 15mm screws
Repeat other side with right
mounting bracket. Only two
screws are used.
3
Labels
Cover
Install labels upside-down on cover so label
reads left to right when cover is removed.
Note: FPFPC1 is not compatible with Opticom Angled Patch Panels, QuickNet Angled Patch Panels, or Angled HDQ Cassettes.
For Technical Support: www.panduit.com/resources/install_maintain.asp

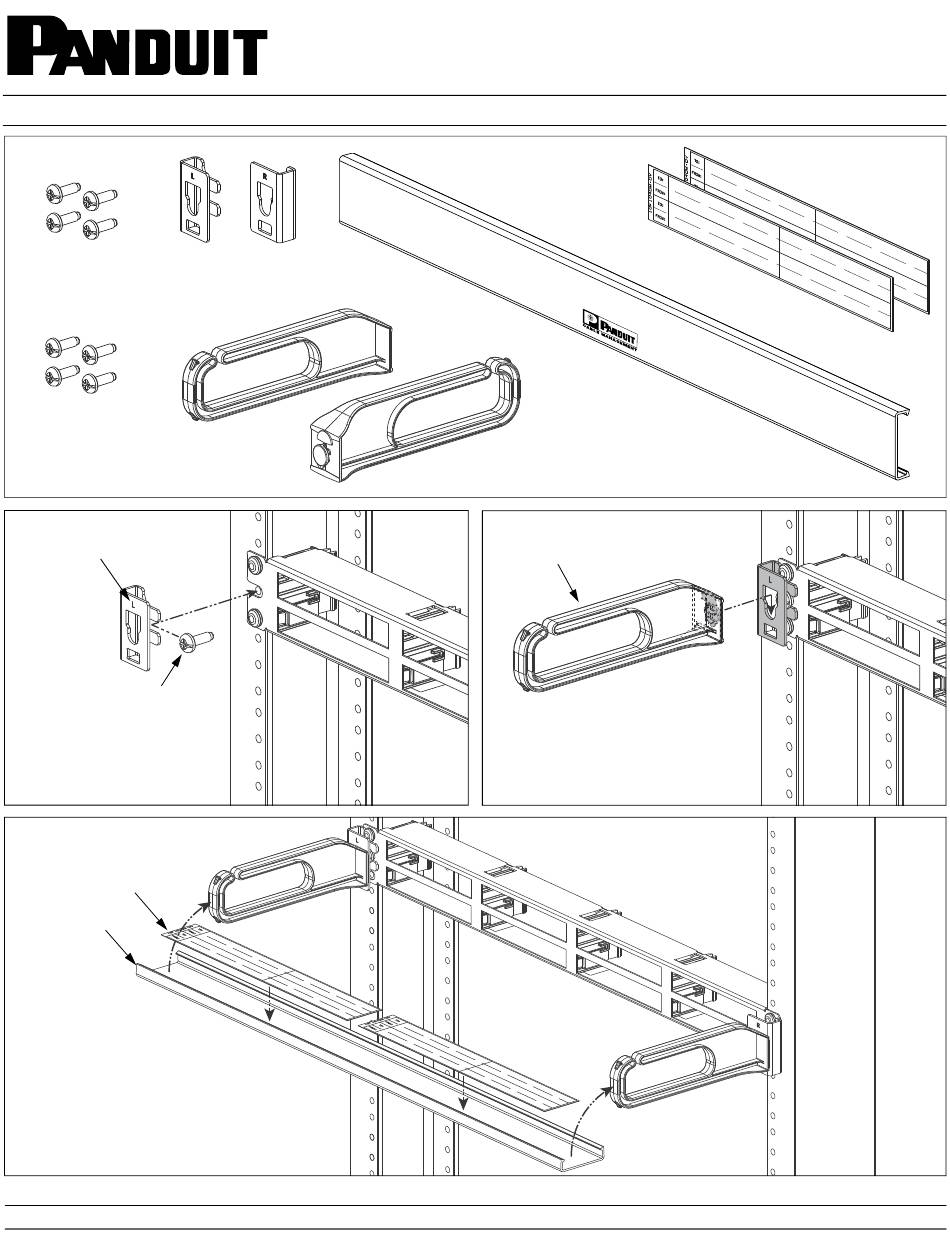

Fiber Patch Field Protection Cover - 1RU
INSTALLATION INSTRUCTIONS
Left and Right
Part Number: FPFPC1
D-Rings
2
D-Ring
Insert and snap down into bracket.
Repeat right side.
Page 1 of 2
Labels
Cover
FS020A
