© Panduit Corp. 2010
Field-Terminated Trunk Option
FAPs (12 capacity)

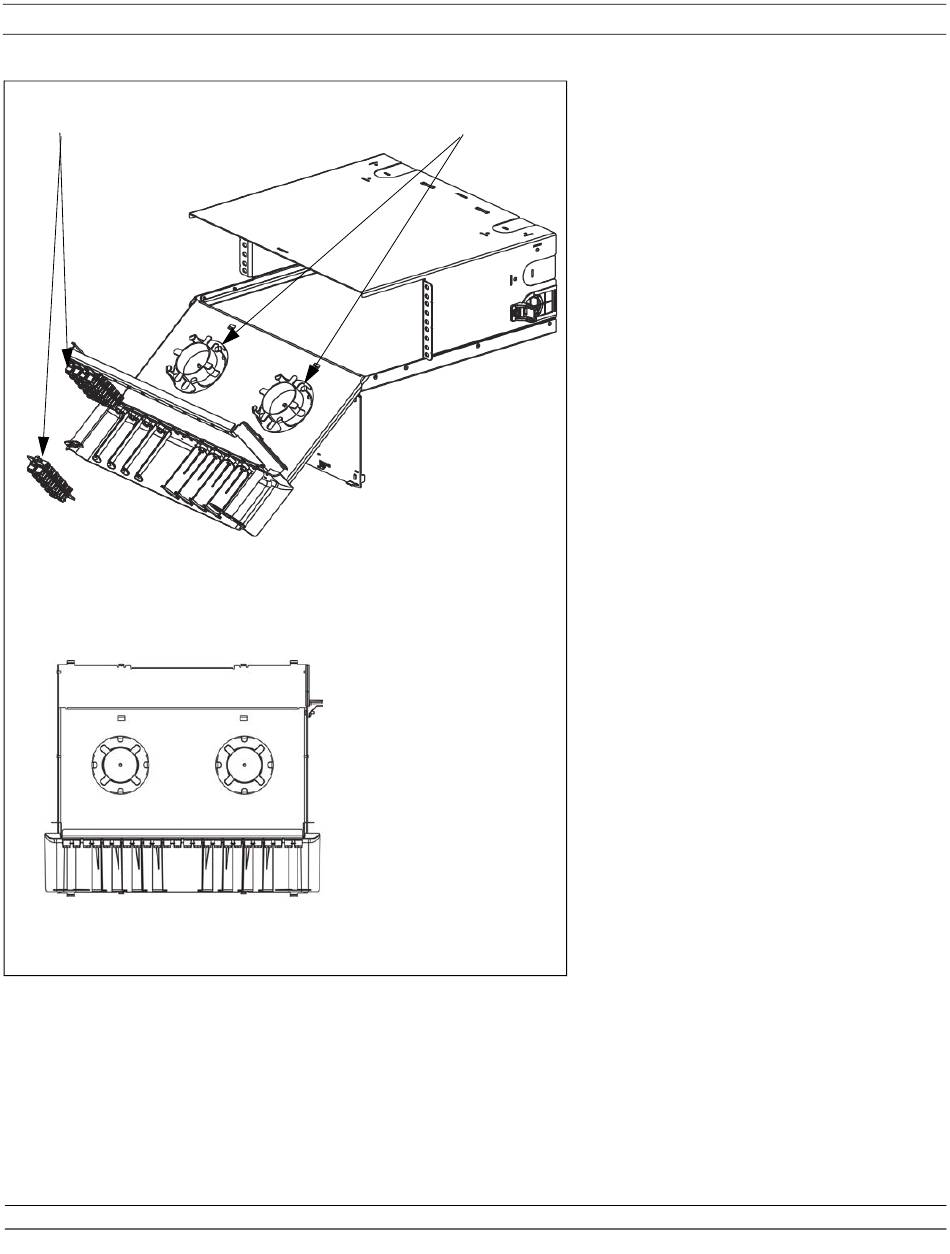

Isometric view showing tray fully open
and tilted down.
(cables omitted for clarity)
Top view with cover removed.
Note orientation of spools.
For Technical Support: www.panduit.com/resources/install_maintain.asp
INSTALLATION INSTRUCTIONS
Slack
Spools
Figure 7A
Page 6 of 10
Place slack spools over #10-32 studs on sliding
tray. Secure with #10-32 hex nuts or adhesive
mounts (make sure to punch hole into adhesive
mounts). Note spool orientation.
Position FAPs between upright flanges as shown.
Once mounted, fully seat NyLatches to secure
FAPs.
Fully extend tray to ensure proper amount of slack
is used.
FS012
