Panduit OPTICOM FRME3 Instructions

© Panduit Corp. 2004

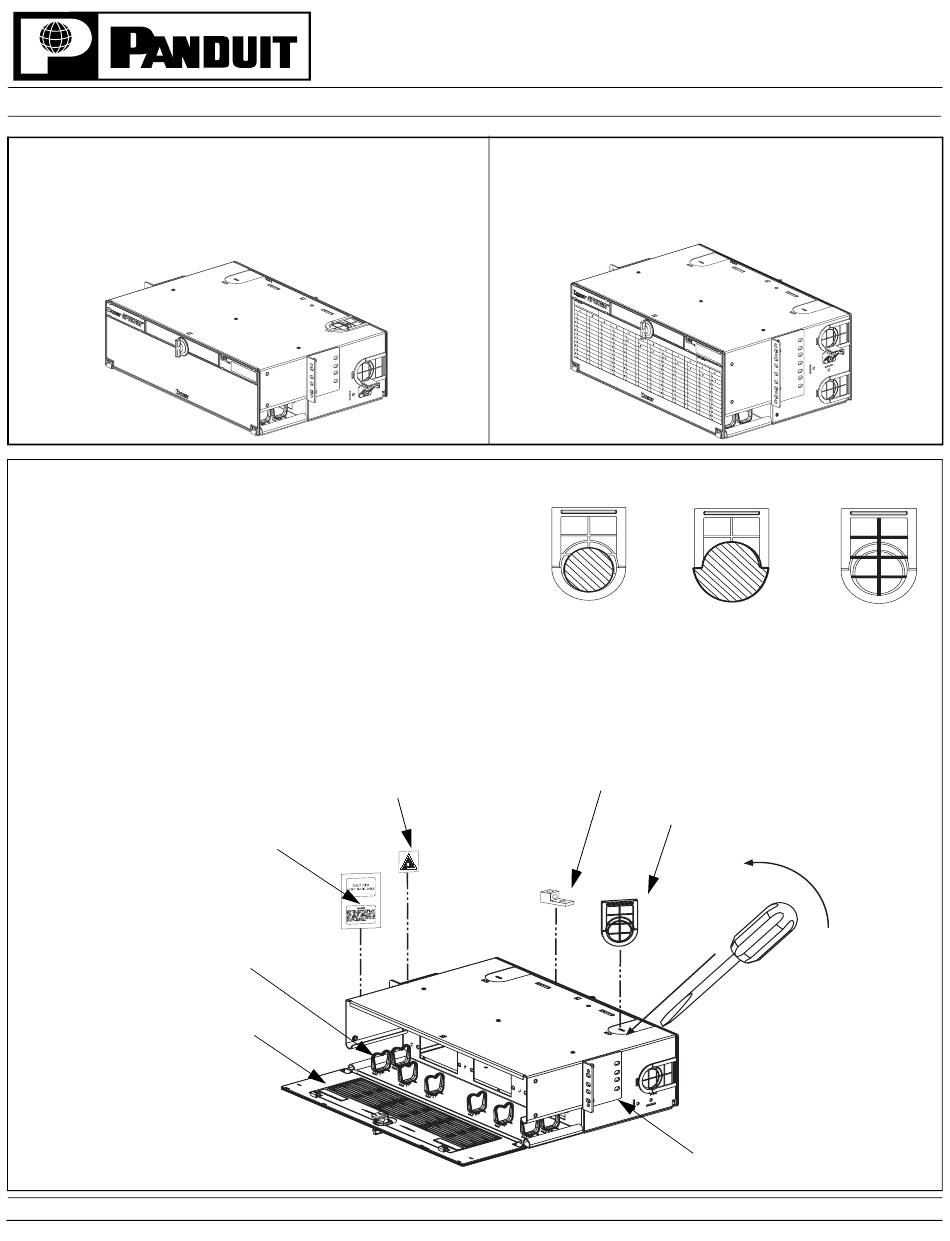

FRME Enclosure Parts
FRME3
1 FRME Enclosure
1 FRME Kit
1 Port I.D. Label
2 EIA Enclosure Brackets
Assembly Instructions:
1. Determine the cable entry location on the enclosure.
Remove the knockout by inserting a screwdriver into
the slot located in the center of the knockout and apply
a twisting upward motion then lift out. Insert grommet
following proper cutting diagram. Snap in saddle clips.
Grounding Lug attaches to a stud at the rear, inside the
enclosure on the top or bottom with a #10-32 nut. Apply
Laser Warning Label and Caution Label in a clearly
visible location. Apply Port I.D. Label (s) on the inside
of the door.
Caution Label
Saddle Clip
Port I.D. Label
O ™ Fiber Optic Rack Mount Enclosure
PTICOM
Part Numbers: FRME3, FRME4
INSTRUCTIONS CM271A
Laser Warning Label
FOR TECHNICAL SUPPORT CALL: 866-405-6654
Page 1 of 2
FRME4
1 FRME Enclosure
1 FRME Kit
1 Port I.D. Label
2 EIA Enclosure Brackets
GROMMET CUTTING DIAGRAM
DISCARD
Cut the small
circle for 1"
diameter
innerduct
Grounding Lug
Grommet
DISCARD
Cut the straight
Cut the large
lines when not
circle for 1-1/
using any inner-
2" diameter
duct
innerduct
Mounting Bracket
