© Panduit Corp. 2010

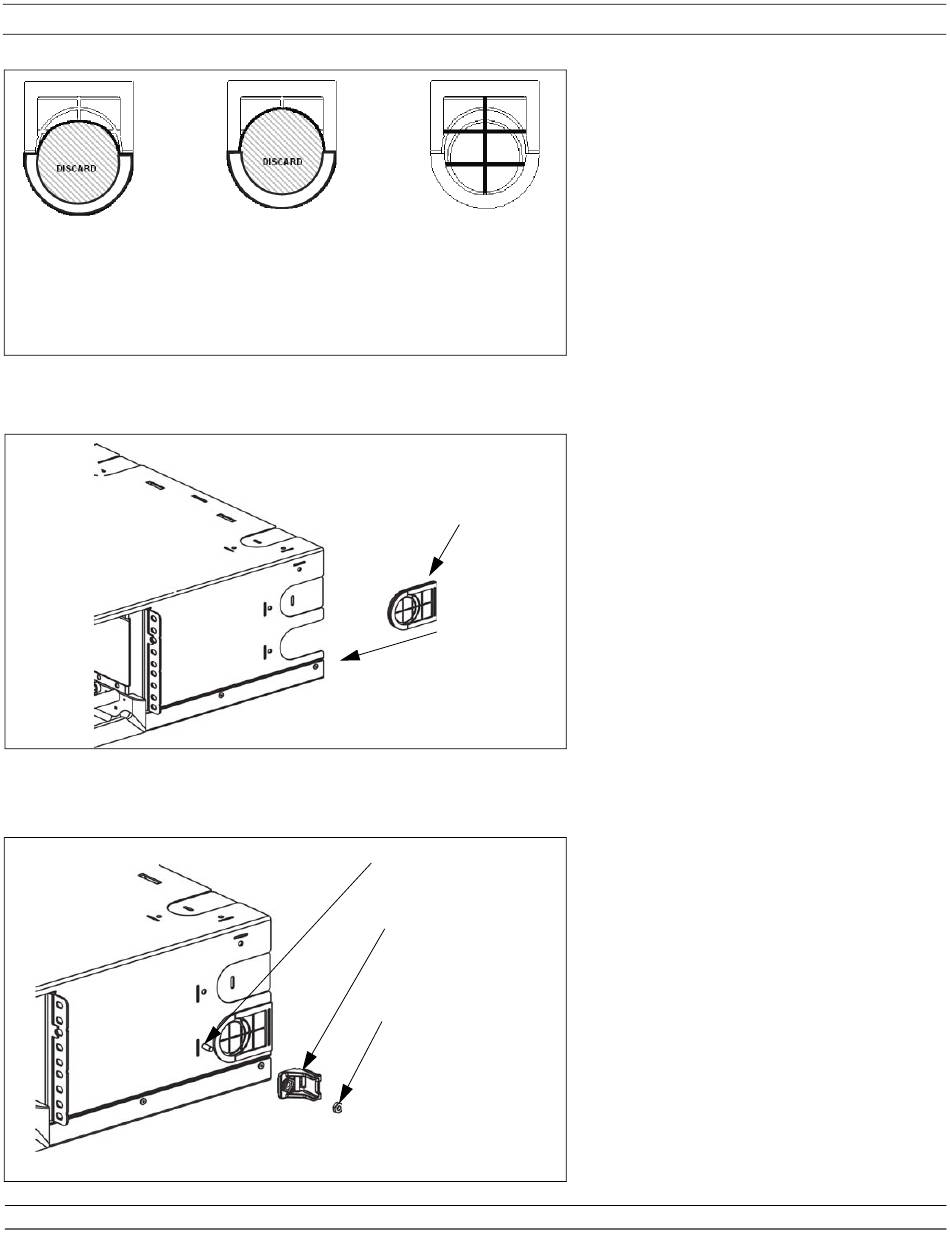

Cut the small circle
for 1" diameter
innerduct
For Technical Support: www.panduit.com/resources/install_maintain.asp
INSTALLATION INSTRUCTIONS
Cut the large circle
for 1-1/2" diameter
innerduct
#10-32 x 3/8" Screw
#10-32 Hex Nut
Cut the straight
lines when not
using any
innerduct
Figure 4A
Grommet
Figure 4B
Strain Relief Bracket
Figure 5
Page 3 of 10
After the enclosure is mounted in the rack, determine
the size of the innerduct that will be used to bring the
cable into the enclosure. Install grommet following
the proper cutting diagram (See Figure 4A).
Install the strain relief bracket near where the
cable will enter the enclosure. Secure with a
#10-32 x 3/8" screw and #10-32 hex nut.
FS012
