Opticom QuickNet Cassette Installation
Cassette Installation Option
Cassettes
(12 capacity)

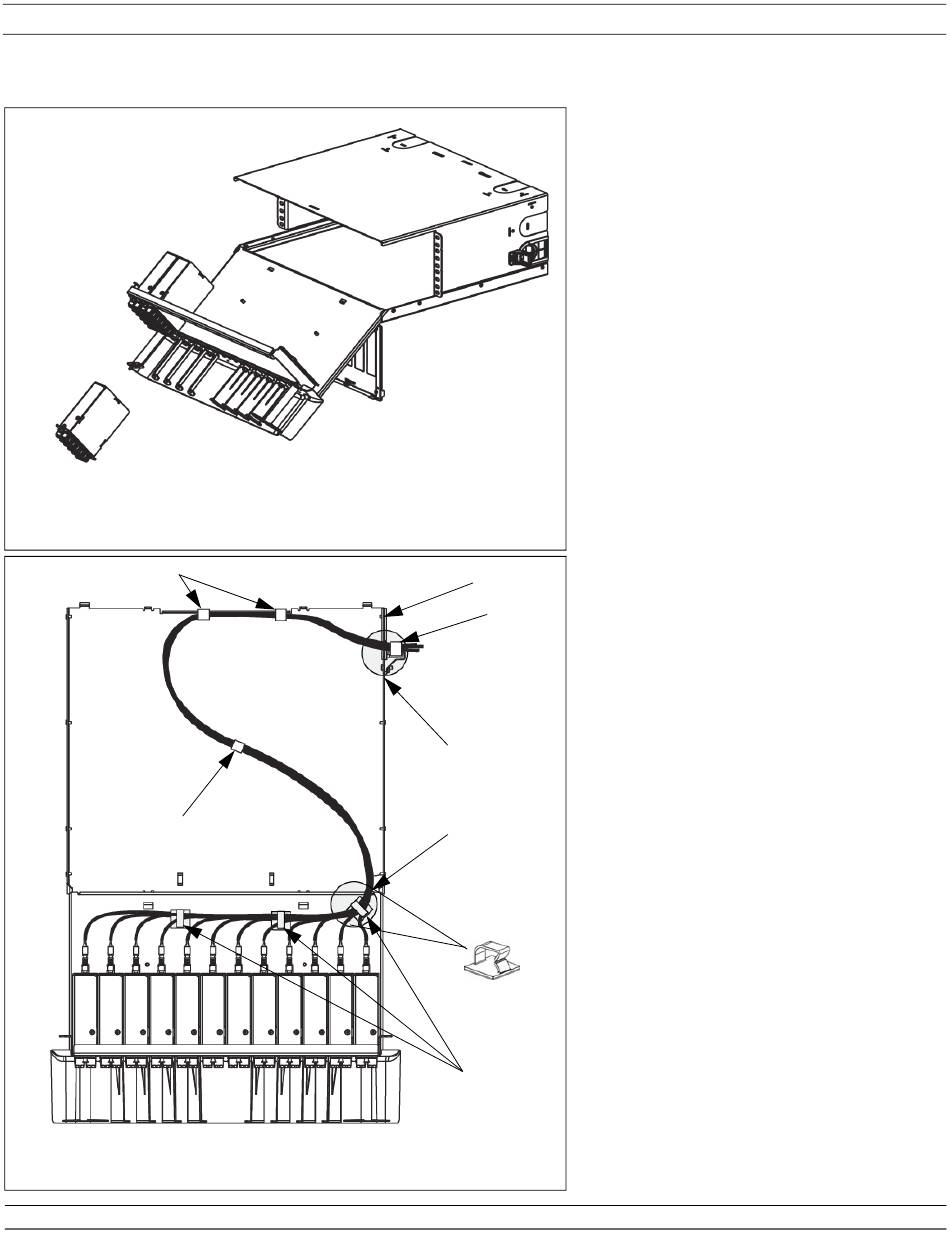

Isometric view showing tray fully
extended and tilted down.
(cables omitted for clarity)
Tak-Ty cables to fence
Free floating
Tak-Ty
Drawer in extended position.
(cover omitted for clarity)
For Technical Support: www.panduit.com/resources/install_maintain.asp
INSTALLATION INSTRUCTIONS
Figure 6A
Grommet
"A"
Cable length
between point
"A" and point
"B" is approx.
31" [.787m]
"B"
Adhesive
Bevel Entry
Clips
Figure 6B
Page 4 of 10
Insert Opticom QuickNet Pre-Terminated Fiber Optic
Cassettes into the enclosure as shown. Once
mounted, fully seat NyLatches to secure the
cassette.
Fully extend tray to ensure proper amount of slack is
used.
Route fiber through grommet to fiber cassettes as
Fixed
shown. Leave enough slack so when the drawer is
Tak-Ty
fully extended the cables are not put under tension.
DO NOT use so much slack that the drawer cannot
be returned to its home position (See Figure 6C).
Use Tak-Tys to secure fiber cords at cable entry
location and other points as shown.
FS012
