© Panduit Corp. 2023
NOTE: Some views in this document may vary slightly from your actual cabinet configuration. Components missing
from some views for clarity purposes.
13mm Socket
Wrench
15mm Socket
Wrench
Disclaimer:
The information contained in this manual is intended as a guide for use by persons having technical skill at
their own discretion and risk. The recommended practices are based on average conditions. Panduit makes
no representation or warranty, express or implied, nor assumes any responsibility for the accuracy or
completeness of these installation instructions. Panduit does not guarantee any favorable results nor assume
any liability for damages, improper installation, system failures, or any other problems that could arise in
connection with the use of these installation instructions.

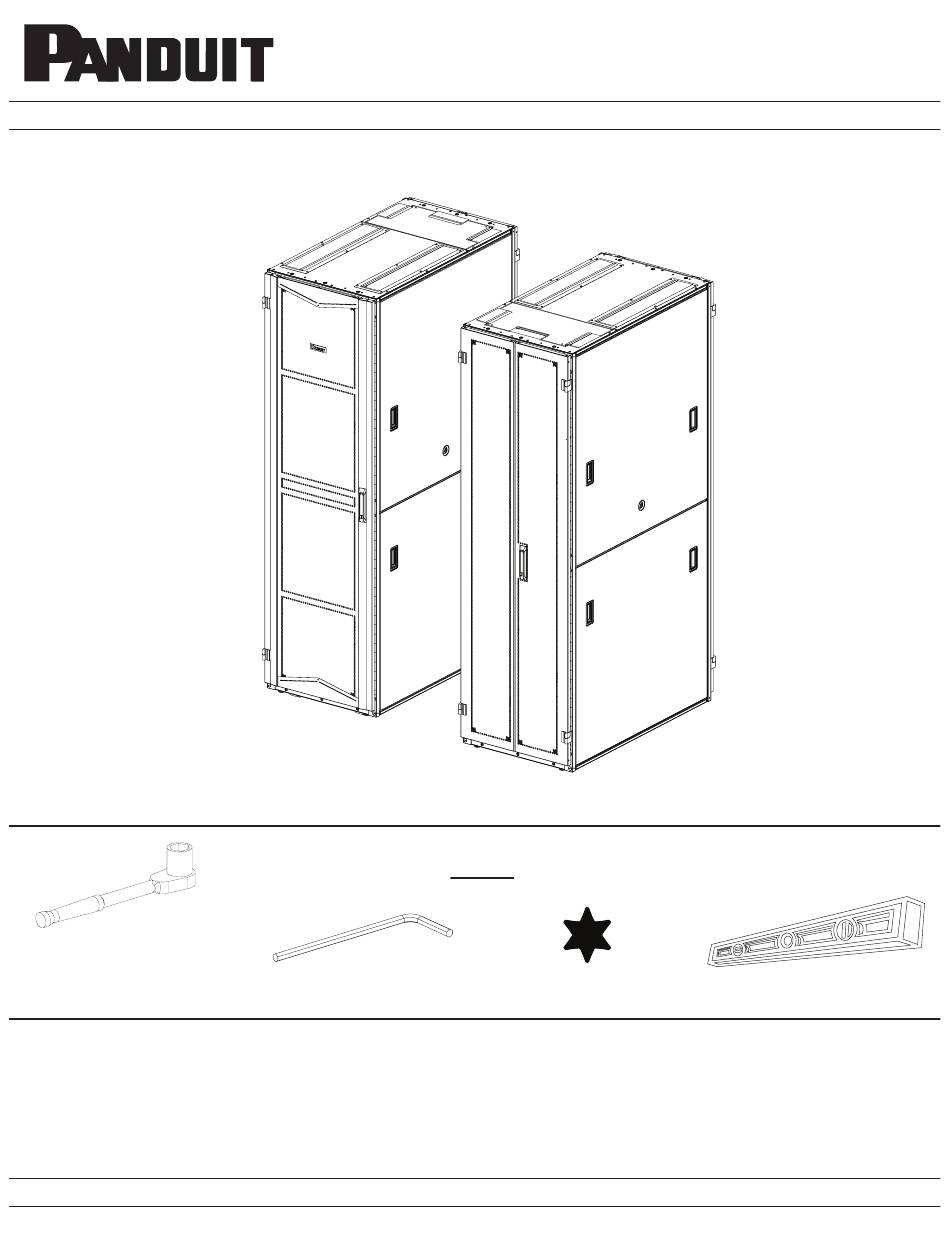

INSTALLATION INSTRUCTIONS
Front of Cabinet
6mm Hex Key
For Technical Support: www.panduit.com/resources/install_maintain.asp
Part Number(s) : XG6*****S, XG7*****S, & XG8*****S
Back of Cabinet
FlexFusion Cabinets
Tool List
T25 Torx driver
Page 1 of 22

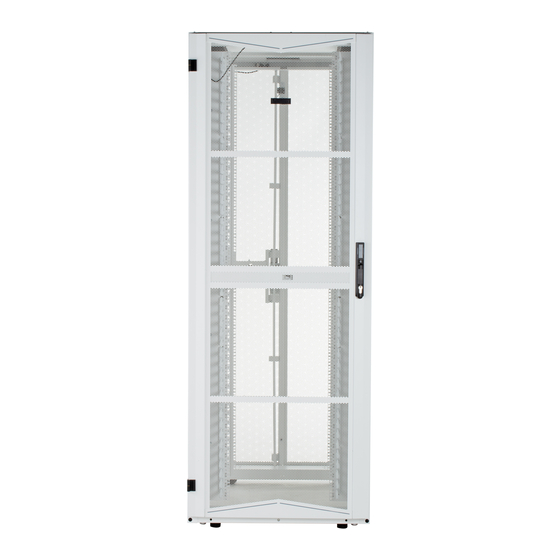

FlexFusion Server Cabinet
122mm (48") Level
V00029TK
Advertisement
Table of Contents
Related Manuals for Panduit FlexFusion XG6 S Series
Summary of Contents for Panduit FlexFusion XG6 S Series
- Page 1 The information contained in this manual is intended as a guide for use by persons having technical skill at their own discretion and risk. The recommended practices are based on average conditions. Panduit makes no representation or warranty, express or implied, nor assumes any responsibility for the accuracy or completeness of these installation instructions.
-
Page 2: Important Safety Information
INSTALLATION INSTRUCTIONS V00029TK © Panduit Corp. 2023 IMPORTANT SAFETY INFORMATION WARNING CABINET TIPPING HAZARD This cabinet can easily be tipped. Use extreme caution when unpacking or moving the cabinet. Use at least [2] persons to remove cabinet from pallet and move cabinet into position (refer to page 5). -
Page 3: Table Of Contents
INSTALLATION INSTRUCTIONS V00029TK © Panduit Corp. 2023 Table of Contents Packaging Material Removal ....................4 Leveling ..........................5 Floor Mounting ........................6 Ganging Multiple Cabinets Together ................. 7 Ganging Multiple Cabinets Together for Day 2 Side Panel ..........8 Grounding ..........................9 Integral Grounding ...................... -
Page 4: Packaging Material Removal
INSTALLATION INSTRUCTIONS V00029TK © Panduit Corp. 2023 Packaging Material Removal • Remove all stretch wrap, protective cardboard, and plastic bag from outside of cabinet. • Remove [4] Hold Down Brackets at front and rear of cabinet. Use at least [2] persons to carefully remove cabinet from pallet. -
Page 5: Leveling
INSTALLATION INSTRUCTIONS V00029TK © Panduit Corp. 2023 Leveling • Ensure that (4) Leveling Legs are fully retracted. • Move Cabinet into final position. • Lower the (4) Leveling Legs until the cabinet weight is fully supported by only the leveling legs. -
Page 6: Floor Mounting
INSTALLATION INSTRUCTIONS V00029TK © Panduit Corp. 2023 WARNING Cabinet Tipping Hazard Mount cabinet to floor before equipment is installed in cabinet. FAILURE TO FOLLOW THESE INSTRUCTIONS CAN LEAD TO SERIOUS INJURY, DEATH, OR DAMAGE TO YOUR EQUIPMENT. Floor Mounting •... -
Page 7: Ganging Multiple Cabinets Together
FAILURE TO FOLLOW THESE INSTRUCTIONS CAN LEAD TO SERIOUS INJURY, DEATH, OR DAMAGE TO YOUR EQUIPMENT. Ganging Multiple Cabinets Together • If you are planning to use Panduit Day 2 Side Panel, go to Pg 8 • Ensure cabinets are level •... -
Page 8: Ganging Multiple Cabinets Together For Day 2 Side Panel
INSTALLATION INSTRUCTIONS V00029TK © Panduit Corp. 2023 WARNING Cabinet Tipping Hazard Ganging of cabinets only provides limited stability to the cabinets, and is not a substitute for proper leveling or floor mounting of cabinets. Ensure that cabinets are properly mounted to floor before cabinet is fully loaded with equipment. (See page 6) FAILURE TO FOLLOW THESE INSTRUCTIONS CAN LEAD TO SERIOUS INJURY, DEATH, OR DAMAGE TO YOUR EQUIPMENT. -
Page 9: Grounding
INSTALLATION INSTRUCTIONS V00029TK © Panduit Corp. 2023 DANGER Electrical Shock Hazard Each cabinet must be connected to the Common Bonding Network (CBN). FAILURE TO FOLLOW THESE INSTRUCTIONS CAN LEAD TO SERIOUS INJURY, DEATH, OR DAMAGE TO YOUR EQUIPMENT. Grounding •... -
Page 10: Equipment Rail Spacing Adjustment
INSTALLATION INSTRUCTIONS V00029TK © Panduit Corp. 2023 WARNING Falling Equipment Hazard Remove all equipment installed onto equipment rails before performing any adjustments to equipment rail spacing. FAILURE TO FOLLOW THESE INSTRUCTIONS CAN LEAD TO SERIOUS INJURY, DEATH, OR DAMAGE TO YOUR EQUIPMENT. -
Page 11: Toolless Equipment Rail Spacing Adjustment
INSTALLATION INSTRUCTIONS V00029TK © Panduit Corp. 2023 WARNING Falling Equipment Hazard Remove all equipment installed onto equipment rails before performing any adjustments to equipment rail spacing. FAILURE TO FOLLOW THESE INSTRUCTIONS CAN LEAD TO SERIOUS INJURY, DEATH, OR DAMAGE TO YOUR EQUIPMENT. -
Page 12: Top Cap
Brush Seal option - Left & right pass-thru openings with brush seals. • Bezel & Cover option - Bezel & Cover openings can be used with Panduit Cool Boot CTGN3X5 to seal around cables to prevent hot air recirculation. Brush Seal option 600mm Wide Cabinet shown 1070 deep cabinets have (2) 87mm [3.4”] x 600mm [23.6”] openings... -
Page 13: Top Cap - Top Cap Hatch Door
INSTALLATION INSTRUCTIONS V00029TK © Panduit Corp. 2023 Top Cap - Top Cap Hatch Door • Top Cap Hatched Door has (2) spring loaded pins that can be released in order to open door. • Top Cap Hatch Door contains (3) Brush Seal openings. -
Page 14: Cable Management Fingers
INSTALLATION INSTRUCTIONS V00029TK © Panduit Corp. 2023 Cable Management Fingers • Push tabs of the Cable Management Fingers into diamond patterns of Cabinet E-rails. • Then push tabs of the Cable Management Fingers down to lock in place. BACKSIDE VIEW... -
Page 15: Cable Management Fingers Locations
INSTALLATION INSTRUCTIONS V00029TK © Panduit Corp. 2023 Cable Management Fingers Locations • Follow locations shown below to install Finger Kits 600 Wide Cabinets 600mm x 48RU 600mm x 51RU/52RU Finger 600mm x 45RU 600mm x 42RU Finger Finger Finger 39 - 47... -
Page 16: Single Hinge Door (Removal And Installation)
INSTALLATION INSTRUCTIONS V00029TK © Panduit Corp. 2023 Single Hinge Door (Removal and Installation) • Open Door to approximately 90°. • Lift Door off of hinges and pull away from Cabinet frame. • Reverse Steps to install Single Hinge Door. Note: Align Top pins first. -
Page 17: Split Doors (Removal And Installation)
INSTALLATION INSTRUCTIONS V00029TK © Panduit Corp. 2023 Split Doors (Removal and Installation) • Open Split Doors to approximately 90°. • Lift Doors off of hinges and pull away from Cabinet frame. • Reverse Steps to install Split Doors. Note: Align Top pins first. -
Page 18: Side Panels Removal
INSTALLATION INSTRUCTIONS V00029TK © Panduit Corp. 2023 Side Panels Removal • Upper Panel must be removed before removing Lower Panel. • Unlock Upper Side Panel and lift UP. • Swing the bottom of the Upper Side Panel out to release from cabinet. -
Page 19: Side Panels (Removal And Installation)
INSTALLATION INSTRUCTIONS V00029TK © Panduit Corp. 2023 Side Panels (Removal and Installation) • Lift up on the Lower Side Panel and pull away from cabinet using two handles. Reverse Steps to install Side Panels. • Bottom flange Lower Side Panel... -
Page 20: Pdu Bracket Adjustment (Removal And Installation)
INSTALLATION INSTRUCTIONS V00029TK © Panduit Corp. 2023 PDU Bracket Adjustment (Removal and Installation) • PDU Brackets are height adjustable if PDU spacing other than factory position is desired. • If cabinet comes with PDU Brackets installed, they can come on left side, right side, or both sides. -
Page 21: Vertical Cable Management Panel (Vcmp) (Removal And Installation)
INSTALLATION INSTRUCTIONS V00029TK © Panduit Corp. 2023 Vertical Cable Management Panel (VCMP) (Removal and Installation) • The VCMP can be repositioned inside cabinet if position other than factory position is desired. • Disengage spring clip and lift up on the VCMP as shown below. -
Page 22: Vertical Cable Management Panel Keep-Out Areas For Side Panel Interference
INSTALLATION INSTRUCTIONS V00029TK © Panduit Corp. 2023 Moving and Re-installing Vertical Cable Managers OPTIONAL GROUNDING Align the (2) tabs at the TOP of the VCMP to the desired cage nut holes first M5 screw - Install only (1) screw for each Vertical Cable Management Panel installed.
