Tak-Ty
cables to
fence or
cover as
needed.
Sub-unit
tubes
Free floating
Tak-Ty
Drawer in extended position.
(cover omitted for clarity)
Tray in home position.
(cover omitted for clarity)
For Technical Support: www.panduit.com/resources/install_maintain.asp
INSTALLATION INSTRUCTIONS
Grommet
"A"
Fixed Tak-Ty
Cable length
between point
"A" and point
"B" is approx.
36" [.914m]
"B"
Adhesive mount
with Tak-Ty
Individual fiber
breakout point.
(see detail at
right)
Page 7 of 10

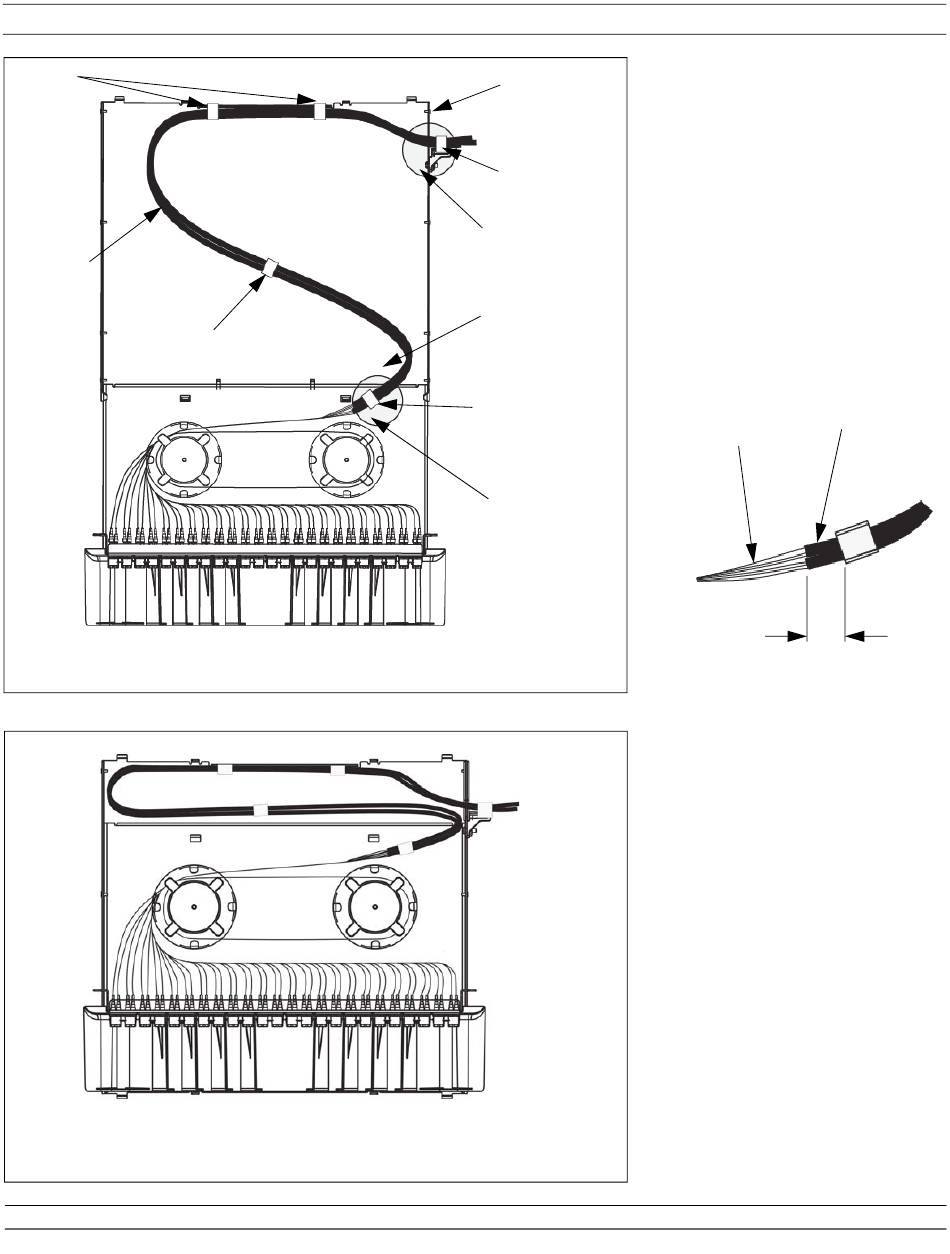

Route fiber through grommet as shown.
Use enough cable length to ensure one
complete loop of individual fibers around
slack spools. Leave enough jacketed slack
so when the drawer is fully extended the
cables are not put under tension. DO NOT
use so much slack that the drawer cannot
be returned to its home position (See
Figure 7C).
Use Tak-Tys to secure fiber cords at cable
entry location and other points as shown.
Individual Fiber
Figure 7B
Be sure adhesive mount secures
jacketed trunk cable. DO NOT clip
individual 900µm buffered fibers.
Figure 7C
FS012
Cable Jacket
1.0"
Fiber Breakout Detail
