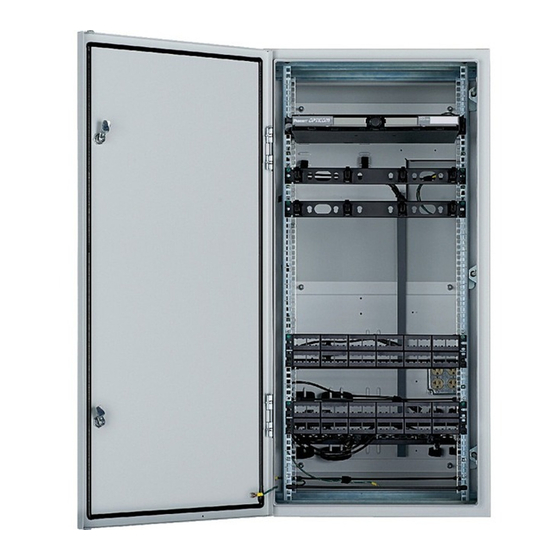

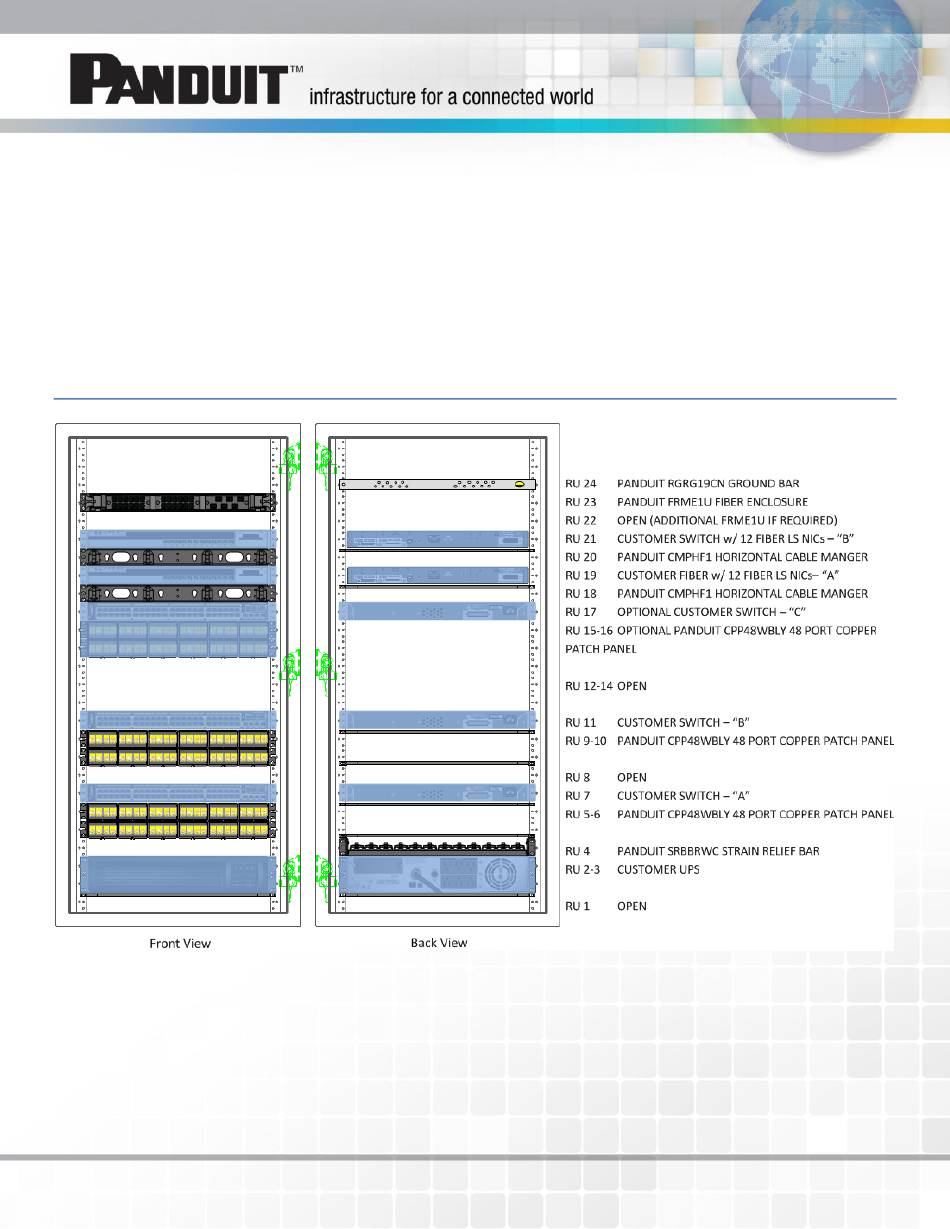

- Page 1 Panduit PreConfigured Industrial Distribution Frame (IDF) Installation Instructions Part Numbers ZDF48-RA and ZDF48-EA ZDF48-6RA and ZDF48-6EA ZDF48-RA*** and ZDF48-EA*** Figure 1: Industrial Distribution Frame (IDF) Equipment Elevation V00028CA Rev06 www.panduit.com Page 1 of 21...
-
Page 2: Table Of Contents
1. Unpack the IDF enclosure and remove the miscellaneous carton on top of the IDF enclosure. Figure 2: Unwrapped enclosure and carton. 2. Remove the enclosure mounting hardware and Hoffman Protek installation guide from the miscellaneous carton. V00028CA Rev06 www.panduit.com Page 2 of 21... - Page 3 IDF Enclosure Labels and Covers Instructions Enclosure Mounting Hardware Fiber Enclosure Kit and Instructions Tak-Ty Common Bonding Network (CBN) Jumper Kit Electrostatic Discharge (ESD) Wrist Strap Kit Figure 3: Contents of the miscellaneous cartons. V00028CA Rev06 www.panduit.com Page 3 of 21...
-
Page 4: Idf Switch Deployment Guide
Prior to routing power cable and horizontal communication cables, the switch placement inside the enclosure must be considered for a successful deployment. This document is intended to provide system integrators and field installers with Panduit’s recommendations regarding switch deployment within Panduit’s Industrial Distribution Frame (IDF). The IDF is currently... - Page 5 22.69 22.69 Handle may interfere with patch field 22.69 Handle may interfere with patch field 13.31 Limited by Center Section and Wall Section flange Table 1: Useable depth of the enclosure per RU V00028CA Rev06 www.panduit.com Page 5 of 21...
- Page 6 Figure 4: IDF Section showing the useable depth of the enclosure. V00028CA Rev06 www.panduit.com Page 6 of 21...
-
Page 7: Idf Preparation And Mounting
14. Drill and punch all conduit entry positions that will be used in this installation. 15. Following the Hoffman installation guide, mount the enclosure in the desired location using the 6 holes on the wall section of the enclosure. V00028CA Rev06 www.panduit.com Page 7 of 21... -
Page 8: Zdf48-Ra - Power Installation
20. Pull the plant power through the conduit into the outlet box and terminate the power and ground according to local IEC code. 21. Re-install the outlet box cover onto the box. 22. OPTIONAL: Remove the side gland plate and install the air conditioner per instructions supplied with the AC unit. V00028CA Rev06 www.panduit.com Page 8 of 21... -
Page 9: Zdf48-Ea - Power Installation
Figure 8 Figure 9. The aqua arrows show the Tak-Ty locations. Tak-Ty the grounding jumpers from with the power cords to the rail. Figure 8: Fiber Switch A and B Tak-Ty to Rear Rail V00028CA Rev06 www.panduit.com Page 9 of 21... - Page 10 Figure 9: Fiber Power Cables A and B. View looking from the rear of the enclosure. Arrows indicate Tak-Ty locations. 29. Tak-Ty the Power Cords to the rear rail using the rail slots as shown in Figure 9. The aqua arrows show the Tak- Ty locations. V00028CA Rev06 www.panduit.com Page 10 of 21...
- Page 11 Figure 10: Copper Power Cables A and B. View looking from the rear of the enclosure. Arrows indicate Tak-Ty locations. V00028CA Rev06 www.panduit.com Page 11 of 21...
-
Page 12: Copper Trunk Cable Installation
Backplane. 78” of slack (measured from enclosure bottom) is required in the enclosure. This leaves enough cable to terminate onto the copper jacks. Figure 12: Copper Cable Routing showing Copper-A on the left and Copper-B cables on the right. V00028CA Rev06 www.panduit.com Page 12 of 21... -
Page 13: Fiber Trunk Cable Installation
Cut the armored cable for 155 inches inside the enclosure. Leaving a stub of bare armor above the conduit. b. Optional: Utilize Panduit’s Armored Cable Grounding Jumper Kit (ACG24K, ACG24K-500, ACG24KX-500) to ground the armor of the cable. V00028CA Rev06 www.panduit.com... - Page 14 44. Route the jacketed fiber cable up through the Panduit Duct and through the supplied Tak-Ty indicated on the Upper Backplane as shown in Figure Figure 14: Fiber Trunk routing on Upper Backplane 45. Route the jacketed cable through the loom tubing supplied in the miscellaneous kit. The tubing protects the fiber from getting pinched in the hinge.
- Page 15 Insert the fiber connectors into the desired pre-installed fiber adapter panel (FAP) locations in the enclosure. Note that the FAPs can be easily removed via push pull latches on the faceplates. Figure 17: FRME1U Fiber Enclosure Cable Routing V00028CA Rev06 www.panduit.com Page 15 of 21...
-
Page 16: Ups Installation
Plug into the outlet box on the Lower Backplane. e. Use the Tak-Ty provided on the Backplane to retain the AC power Cord. Copper Switch A&B Installation. 52. Reference the Cisco Installation Instructions provided with the switches. V00028CA Rev06 www.panduit.com Page 16 of 21... - Page 17 Figure 19: Location of horizontal support bars on rear of IDF. 54. Connect the switch to the patch panel in RUs 5 and 6. Panduit recommends using part number UTP28SP8INBU- 48, Cat6 UTP 28AWG CM/LSZH Cable Assembly, Blue, 8 Inch, Bulk Package of 48 (ordered separately). The 8- inch length allows for connection from switch port to patch panel without extra length that would require cable management.
-
Page 18: Fiber Switch A&B Installation
RU21, Panduit recommends using part number FX2ERLNLNSNM001, 2-fiber OM3 1.6mm Jacket Patch Cord LSZH LC Duplex to LC Duplex Std IL – 1M. The cable should be routed through the Panduit CMPHF1 Horizontal Cable Manger in RU 18. Refer to... - Page 19 66. Attach the Fiber Switch-A AC cable to the UPS. The plug is Tak-Ty just above the UPS. The cords are shown in Figure 67. Complete the installation and setup per the switch installation instructions. 68. Repeat steps 60 through 66 for Fiber Switch-B in RU 21. V00028CA Rev06 www.panduit.com Page 19 of 21...
-
Page 20: Access Control Pre-Installation (Optional)
Access Control option, and Figure 26 shows the isometric views of the steel enclosures with Access Control. Figure 25: Industrial Distribution Frame (IDF) with Access Control Equipment Elevation V00028CA Rev06 www.panduit.com Page 20 of 21... - Page 21 Figure 26: Isometric View Showing the Steel IDF Enclosure Construction 70. Reference the SmartZone G5 PDU Installation Manual on Panduit.com for instructions on connecting the PDU to a power source. 71. Reference the SmartZone G5 PDU User Manual on Panduit.com for instructions on configuring the PDU for system communication.
