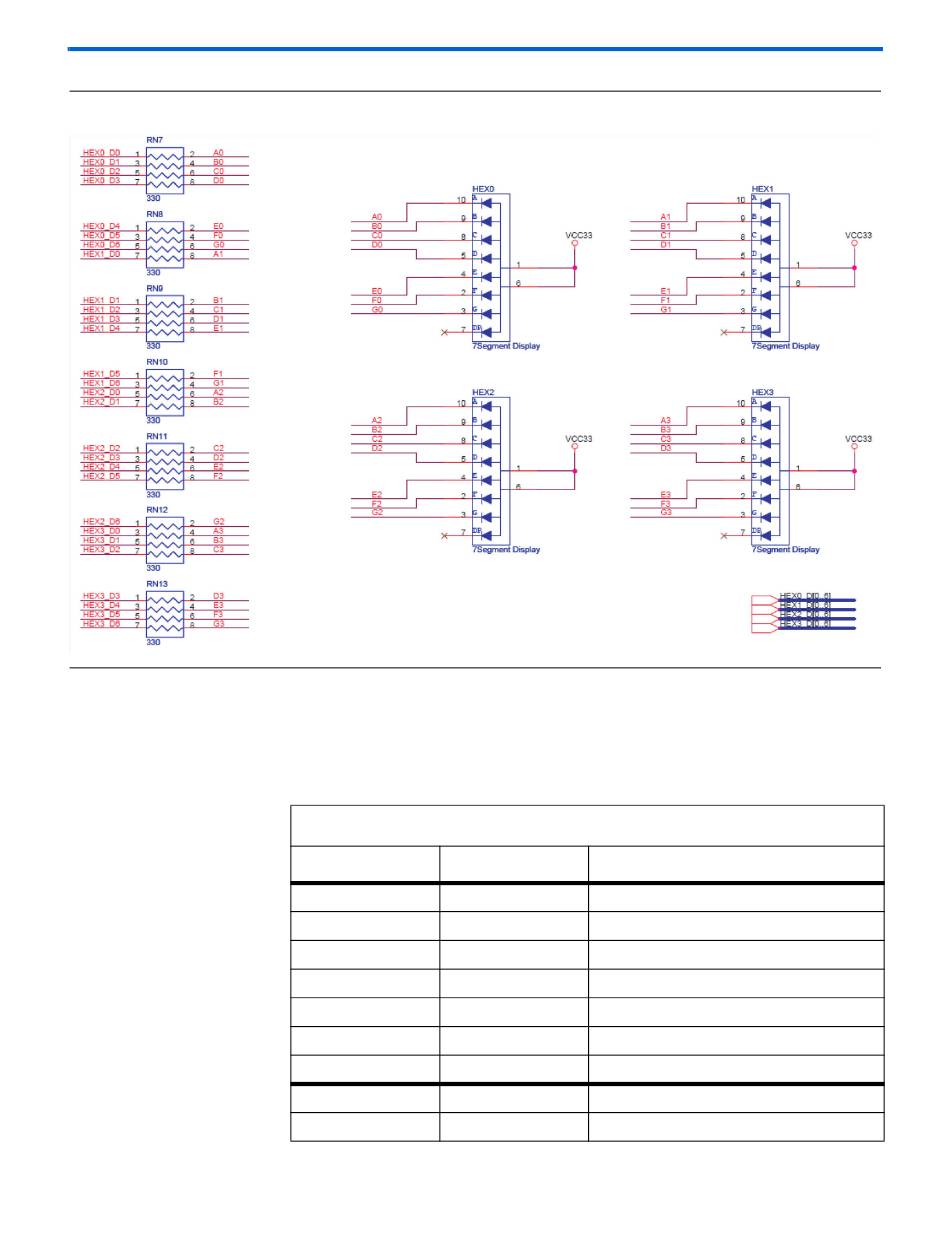

Figure 2–18. Seven-Segment Display Schematic Diagram
Altera Corporation
October 2006

Seven-Segment Display Pin List

Table 2–13 lists the FPGA pins assigned to the display segments.
Table 2–13. Seven-Segment Display FPGA Pin Connections (Part 1 of 2)
Signal Name
HEX0[0]
HEX0[1]
HEX0[2]
HEX0[3]
HEX0[4]
HEX0[5]
HEX0[6]
HEX1[0]
HEX1[1]
Reference Manual
Development Board Components
FPGA Pin
PIN_J2 Seven-Segment segment 0[0]
PIN_J1 Seven-Segment segment 0[1]
PIN_H2 Seven-Segment segment 0[2]
PIN_H1 Seven-Segment segment 0[3]
PIN_F2 Seven-Segment segment 0[4]
PIN_F1 Seven-Segment segment 0[5]
PIN_E2 Seven-Segment segment 0[6]
PIN_E1 Seven-Segment segment 1[0]
PIN_H6 Seven-Segment segment 1[1]
