LED behavior
The following S5200F-ON Series switch LED behavior is seen during ONIE operations:

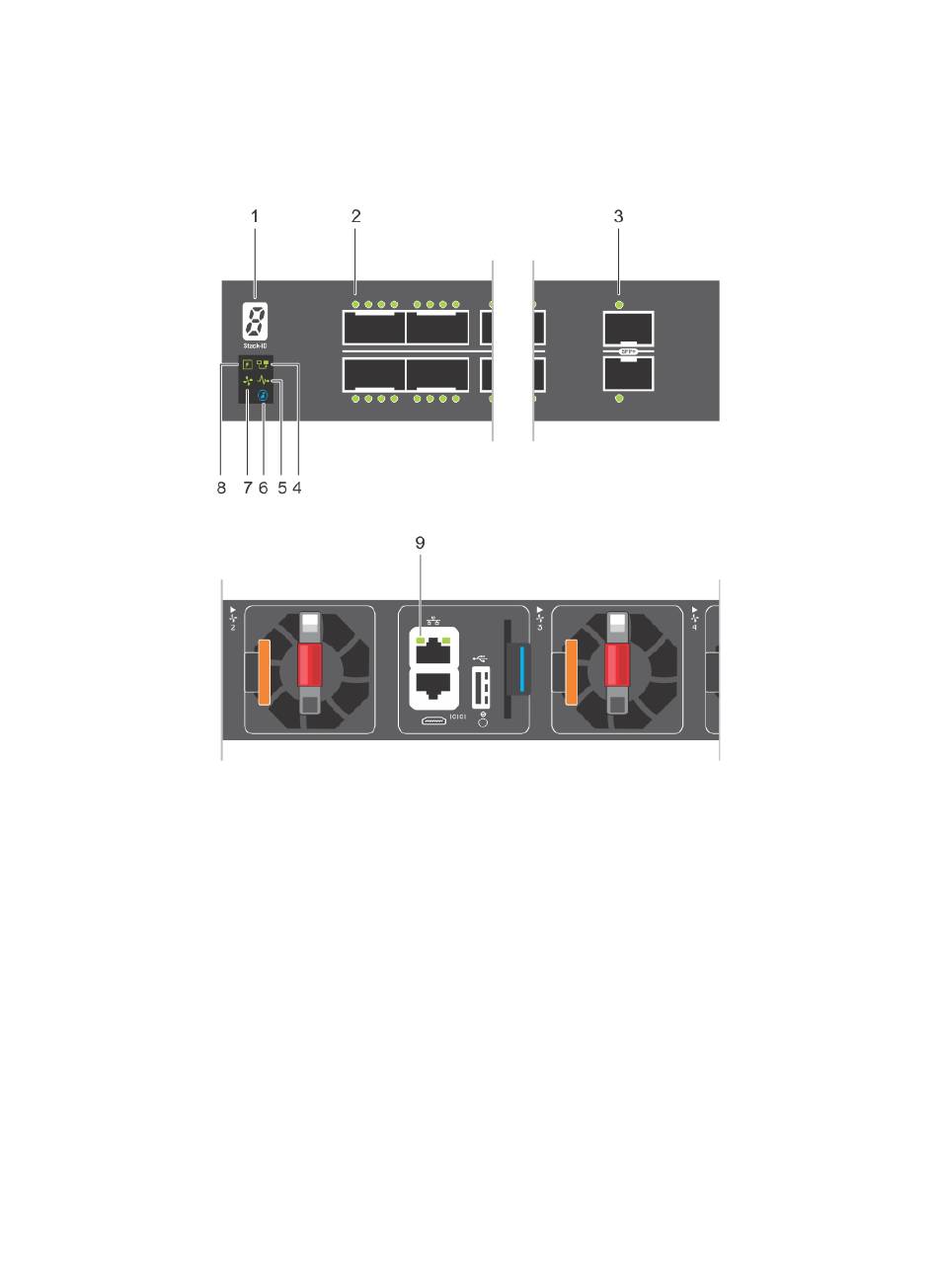

Figure 7. S5232F-ON switch LEDs
1
Stack ID LED
3
Port Activity LED
5
System LED
7
Fan LED
9
RJ-45 Ethernet Port LED
2
Port Activity LEDs
4
Master LED
6
Locator LED
8
Power LED
S5200F-ON Series switch
