NOTE:
For more installation instructions, see the installation labels attached to the rail assembly.

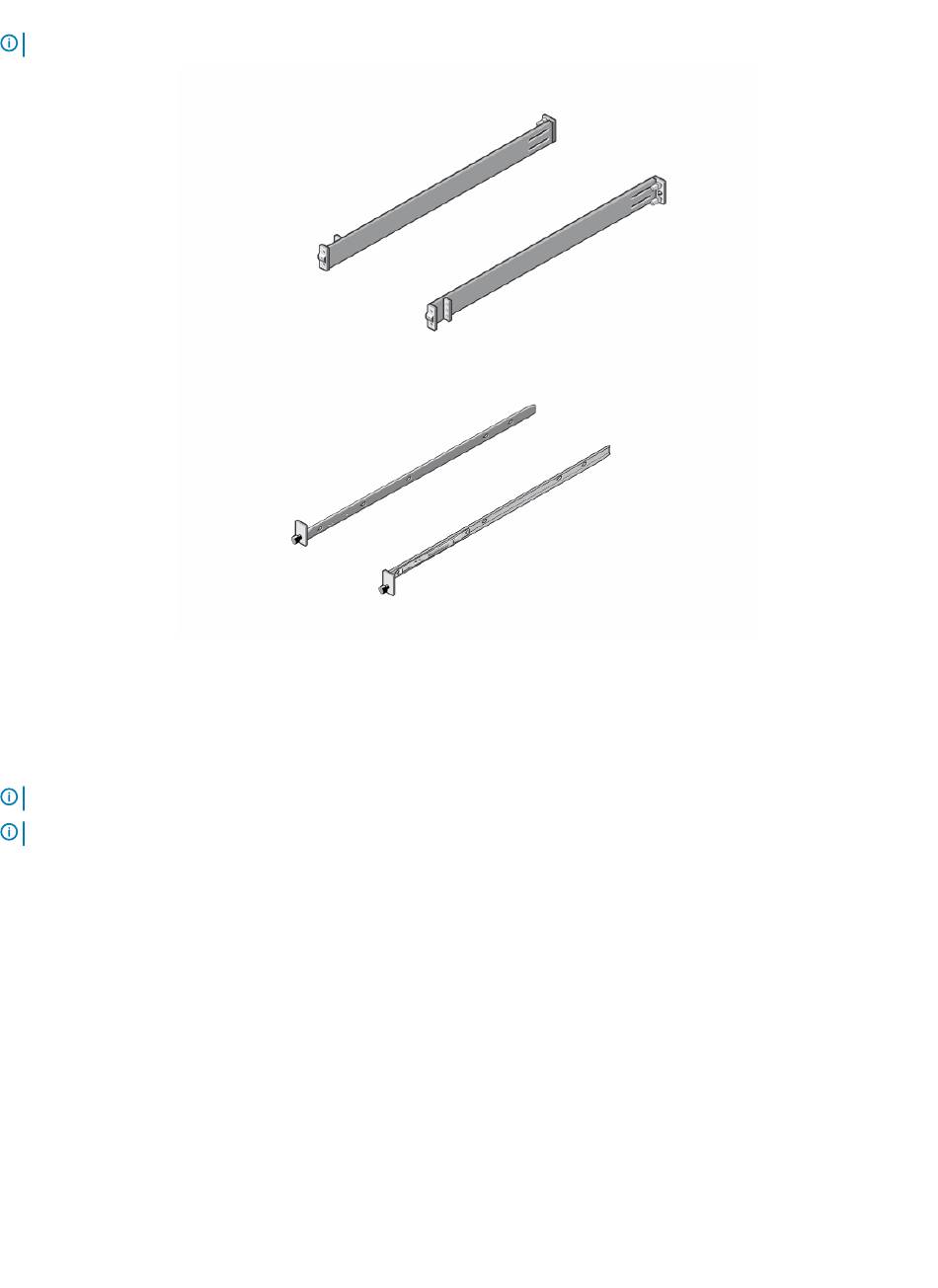

Figure 12. Separate rails
Tool-less square-hole installation
NOTE:
For more installation instructions, see the installation labels attached to the rail assembly.
NOTE:
For S5296F-ON installation instructions, see
1
Place one rail between the left and right vertical posts with the ReadyRails flange ears facing outward. Align and seat the back flange
rail pegs in the back vertical post flange.
The following shows how the pegs appear in both the square and nonthreaded round holes:
S5296F-ON four-post rack
assembly.
S5200F-ON Series switch installation
25
