Features - Dell EMC S5232F-ON Installation Manual

5 Reset button
7 MicroUSB-B port
9 LED status icons
The S5200F-ON Series switch has one RJ-45 serial console port, one Micro-USB type-B console port, one 10/100/1000 Base-T Ethernet
management port, one USB type-A port for the external storage, and for the S5296F-ON switch only, one USB extension cable, packaged
separately. Management ports are located on the PSU-side of the switch.

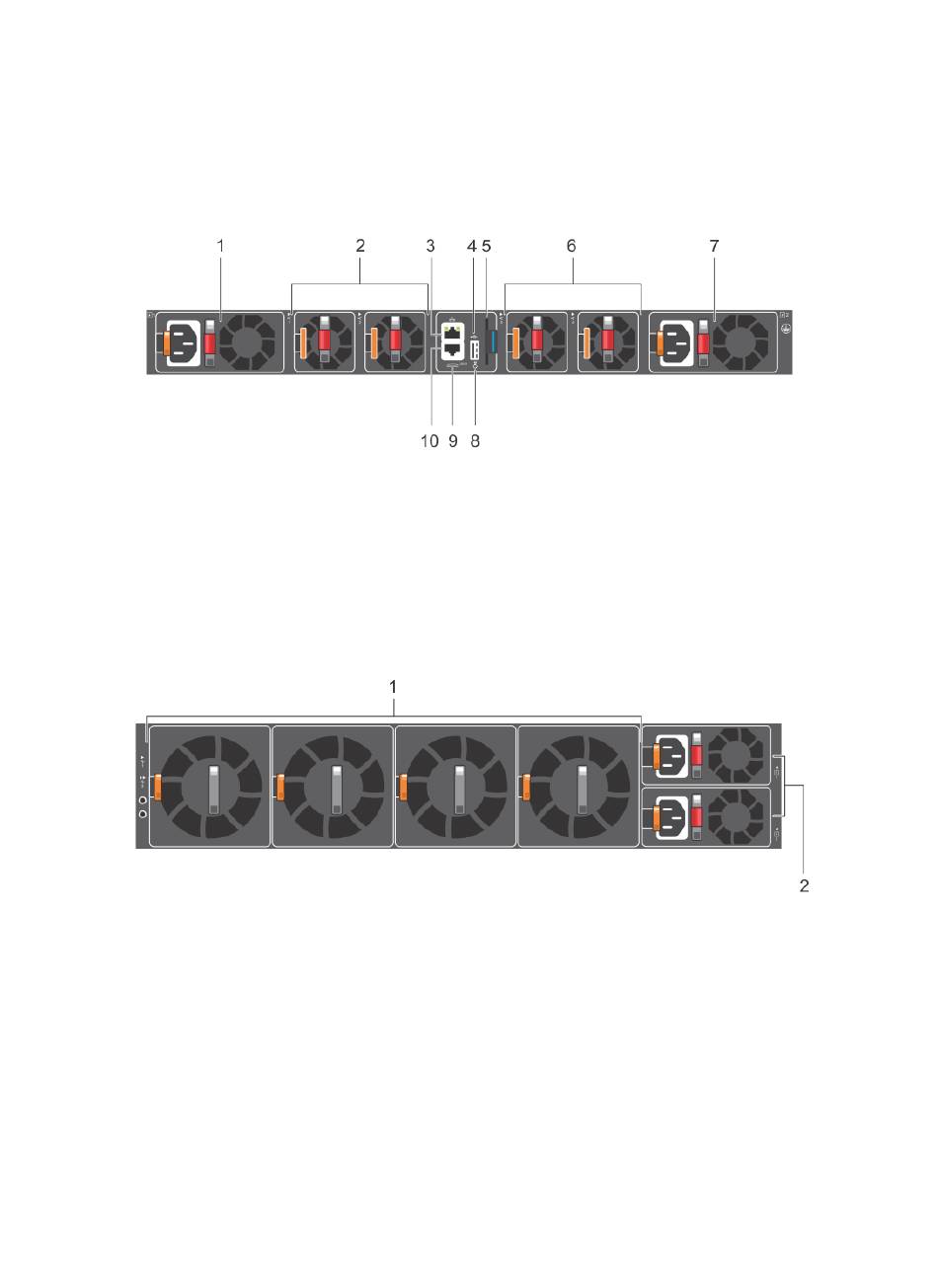

Figure 5. S5232F-ON or S5248F-ON switch PSU-side view
1 PSU1
3 RJ-45 console port
5 Luggage tag
7 PSU2
9 MicroUSB-B port
Figure 6. S5296F-ON switch PSU-side view
1 Fan units

Features

The S5200F-ON Series switch offers the following features:
• Ports:
– S5232F-ON—thirty-two 100GbE QSFP28 ports and two 10GbE SFP+ ports
– S5248F-ON—forty-eight 25GbE SFP28 ports, four 100GbE QSFP28 ports, and two 200GbE QSFP-DD ports
– S5296F-ON—ninety-six 25GbE SFP28 ports and eight 100GbE QSFP28 ports
• One MicroUSB-B console port
6 Stack ID
8 RS-232 console port
10 RJ-45 console port
2 Fan modules
4 USB Type A
6 Fan modules
8 Reset button
10 RJ-45 management port
2 PSU units
