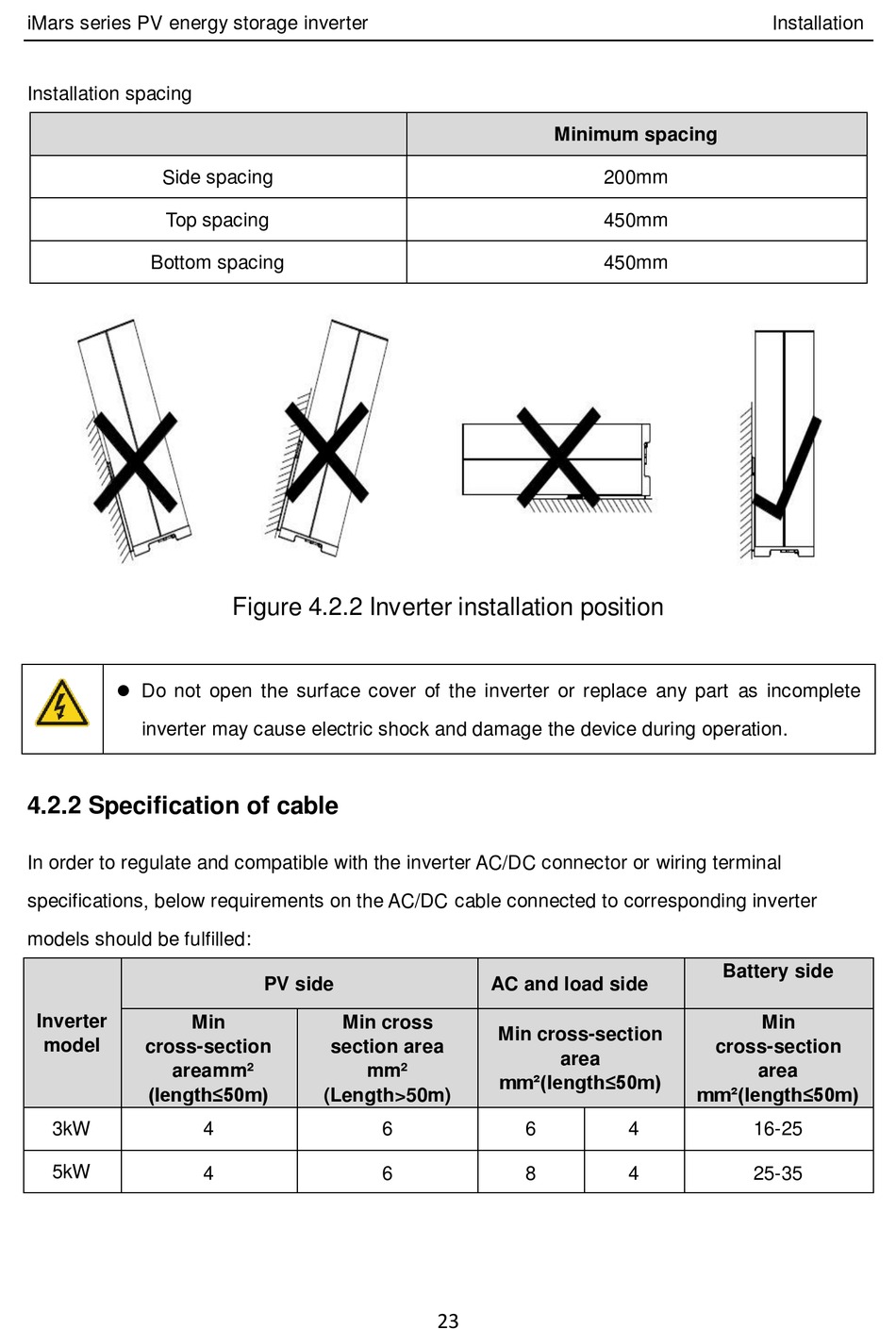

Specification Of Cable - INVT iMars series Operation Manual

iMars series PV energy storage inverter
Installation spacing
Side spacing
Top spacing
Bottom spacing
 Do not open the surface cover of the inverter or replace any part as incomplete
inverter may cause electric shock and damage the device during operation.

4.2.2 Specification of cable

In order to regulate and compatible with the inverter AC/DC connector or wiring terminal
specifications, below requirements on the AC/DC cable connected to corresponding inverter
models should be fulfilled:
Inverter
Min
model
cross-section
areamm²
(length≤50m)
3kW
5kW
Figure 4.2.2 Inverter installation position
PV side
Min cross
section area
mm²
(Length>50m)
4
4
AC and load side
Min cross-section
mm²(length≤50m)
6 6
6 8
23
Minimum spacing
200mm
450mm
450mm
Battery side
cross-section
area
mm²(length≤50m)
4
4
Installation
Min
area
16-25
25-35
