Control Terminals - Danfoss CDS803 Quick Manual

Quick Guide
1 1

1.3.9 Control Terminals

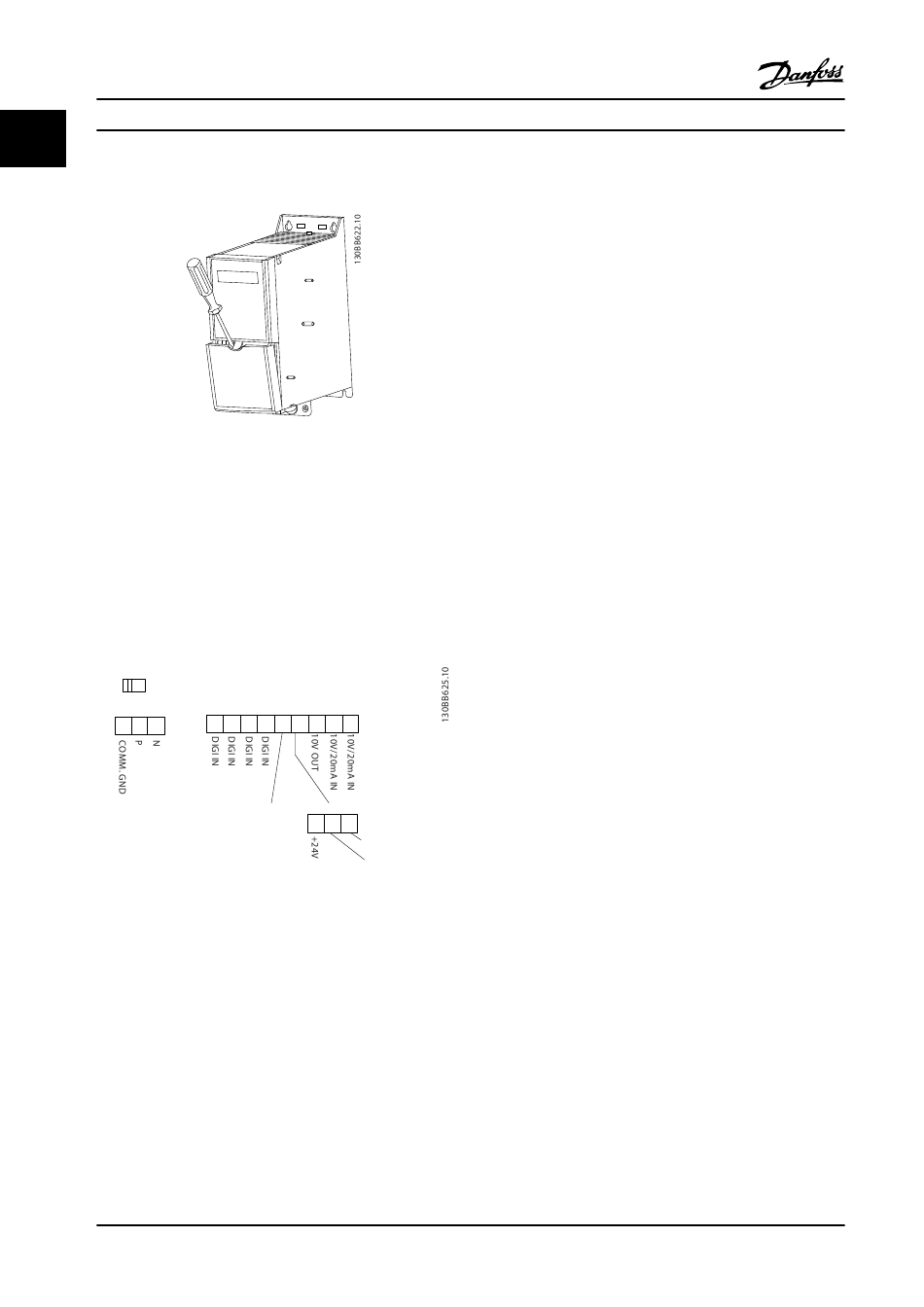

Figure 1.9 Location of Control Terminals
1. Place a screwdriver behind the terminal cover to
activate the snap.
2. Tilt the screwdriver outwards to open the cover.
Control terminals
To make the compressor run:
1. Apply start signal on terminal 18.
2. Connect terminals 12, 27 and terminal 53, 54 or
55
BUS TER.
OFF ON
61 68 69
0/4-20mA A OUT / DIG OUT
Figure 1.10 Control Terminals
Set the functions of digital input 18, 19 and 27 in
5-00 Digital Input Mode (PNP is default value). Set the
function of digital input 29 in 5-03 Digital Input 29 Mode
(PNP is default value).
10
Quick Guide
18 19 27 29 42 45 50 53 54
0/4-20mA A OUT / DIG OUT
12 20 55
GND
GND
